n Audio connection
The following methods are available for connecting to this unit. Use either of the methods to make
a connection.
The numbers prefixed with connectors indicate the recommendation order. The smaller the number is,
the higher playback quality is achieved.
a DIGITAL AUDIO COAXIAL connector
When a multichannel audio (digital bit stream audio) is input, this unit decodes the audio to play
back surround sound.
s AUDIO IN (CBL/SAT) connector
This makes an analog audio connection.
n Video connection
The following methods are available for connecting to this unit.
a VIDEO IN (CBL/SAT) connector
This makes an analog video connection.
The sections in the connection diagram are also available for connections. To connect devices
to these connectors, you must set up input connectors. For details, see “Input Assign” (vpage95).

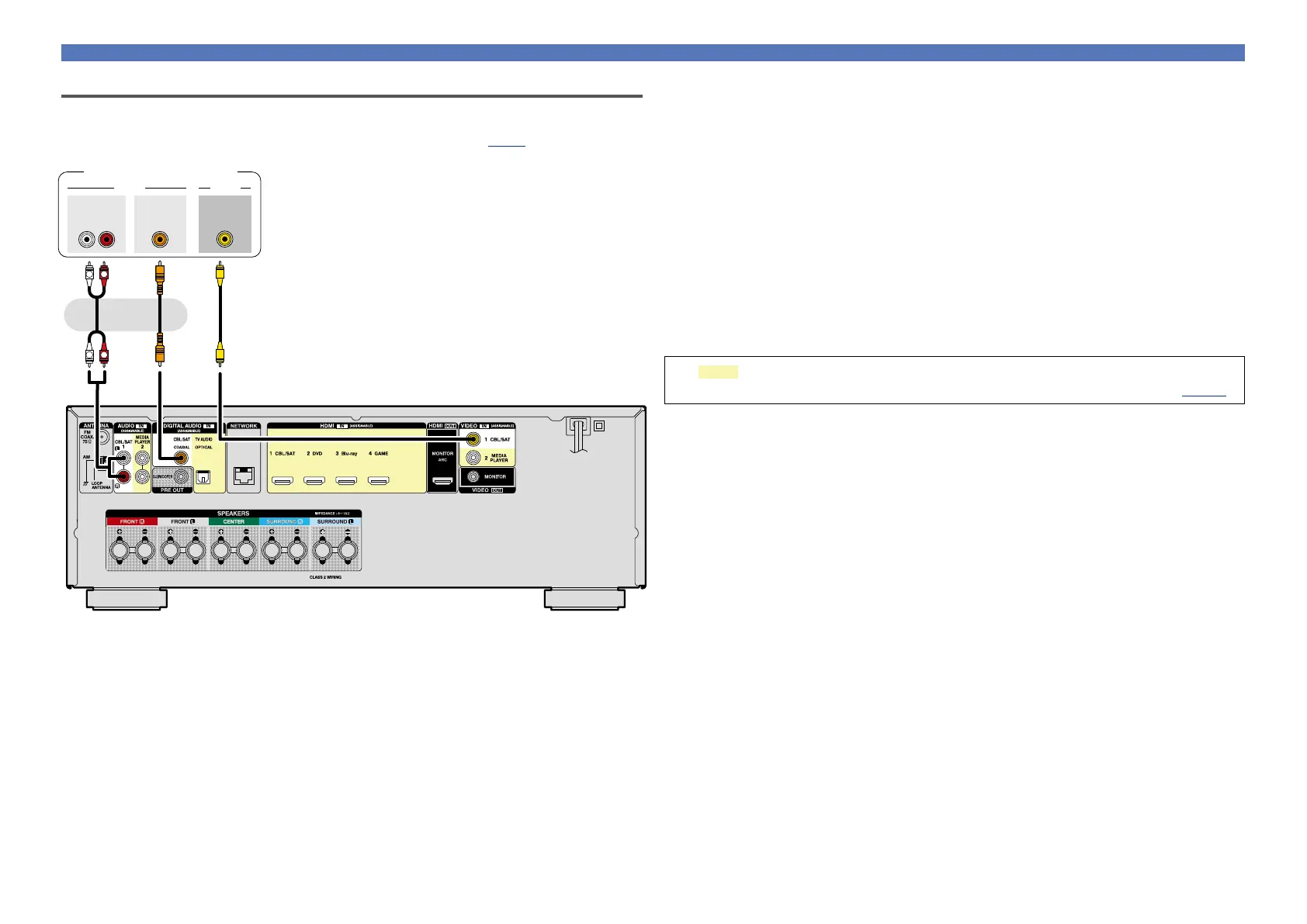

Connecting a set-top box (Satellite tuner/cable TV)
This section describes how to connect when your satellite tuner or cable TV does not support HDMI
connections.
For instructions on HDMI connections, see “Connecting HDMI devices” (vpage7).
R
L
R
L
OUT
COAXIAL
AUDIO
AUDIO
RL
OUT
OUT
VIDEO
VIDEO
as a
Satellite tuner/Cable TV
or
Connecting other devices
Basic instructions
Advanced instructions
Information
Basic instructions
DVD

Denon AVR-E300 Specifications

General

Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
3D Pass-through	Yes
Audio Return Channel (ARC)	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Networking	No
AirPlay	No
Audyssey MultEQ	Yes
HDMI Pass-Through	Yes
Receiver Type	AV Receiver
HDMI Ports Quantity	5
Audio DAC	192 kHz / 24-bit
Digital Sound Processor (DSP)	Yes
Input Sensitivity	200 mV
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
Tuner Bands	AM/FM
Amplifier Type	Discrete
Frequency Response	10 Hz - 100 kHz
Bluetooth	No
Wi-Fi	No
Output Power / Total	375 W
Input Impedance	47 kOhms
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Power Output per Channel	75 W (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Power Output	75W (8 ohms, 20 Hz - 20 kHz, 0.08% THD, 2 channels driven)
