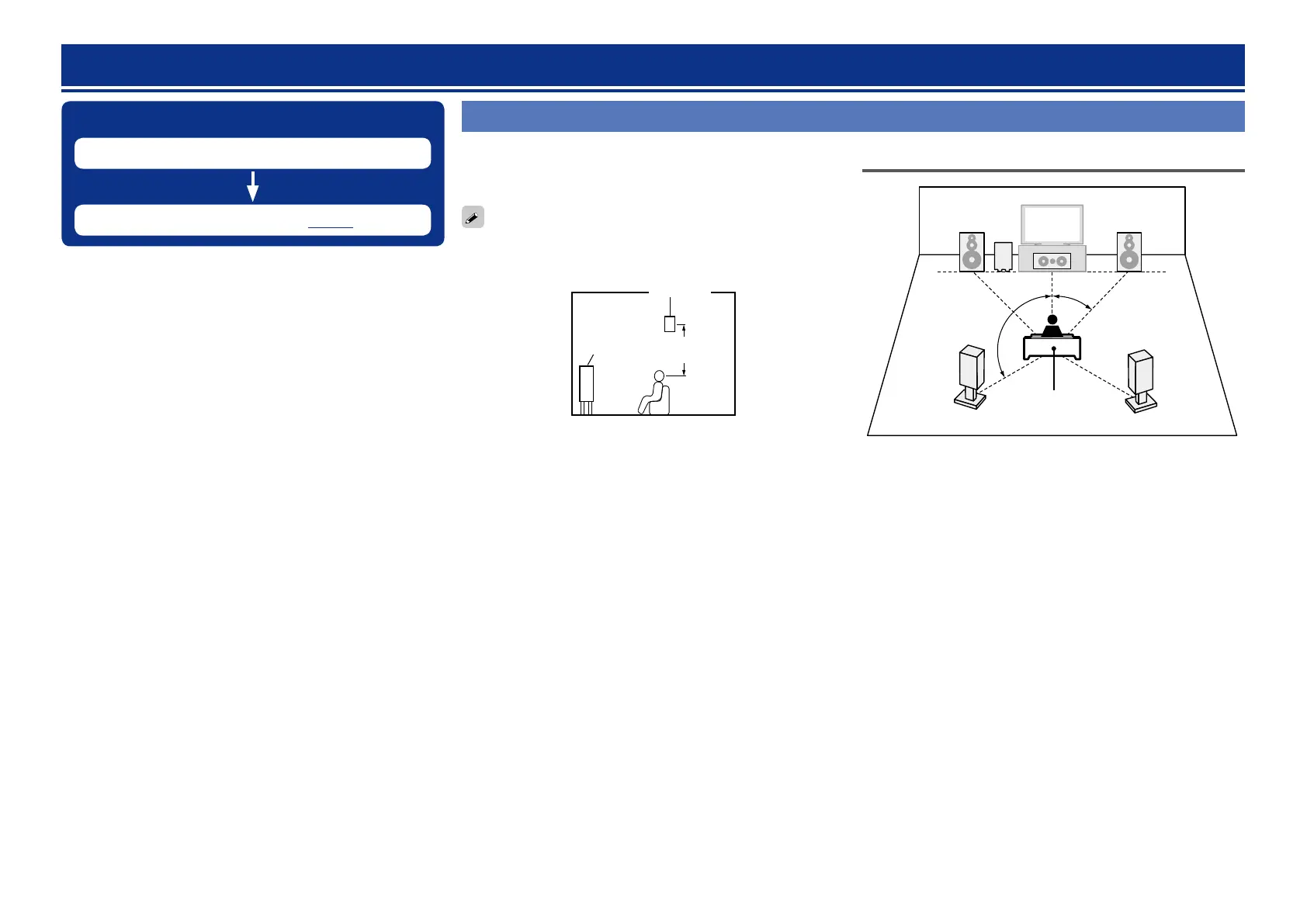

Procedure for speaker settings
Speaker installation
Speaker connection (vpage75)
Speaker installation
•Determine the speaker system depending on the number of speakers
you are using and install each speaker and subwoofer in the room.
Here, we explain how to install the speakers using a typical example.
•The speaker impedance should be from 6 to 16 Ω/ohms.
Use the illustration below as a guide for how high each speaker should
be installed. The height does not need to be exactly the same.
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front
speaker
When 5.1-channel speakers are installed
FL FR
SW
C
SL
SR
z1
z2
Listening position
z1 22˚ – 30˚ z2 120˚
GSpeaker abbreviationsH
FL Front speaker (L) SW Subwoofer
FR Front speaker (R) SL Surround speaker (L)
C Center speaker SR Surround speaker (R)
Installation/connection/setup of speakers (Advanced)
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD

Denon AVR-E300 Specifications

General

Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
3D Pass-through	Yes
Audio Return Channel (ARC)	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Networking	No
AirPlay	No
Audyssey MultEQ	Yes
HDMI Pass-Through	Yes
Receiver Type	AV Receiver
HDMI Ports Quantity	5
Audio DAC	192 kHz / 24-bit
Digital Sound Processor (DSP)	Yes
Input Sensitivity	200 mV
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
Tuner Bands	AM/FM
Amplifier Type	Discrete
Frequency Response	10 Hz - 100 kHz
Bluetooth	No
Wi-Fi	No
Output Power / Total	375 W
Input Impedance	47 kOhms
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Power Output per Channel	75 W (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Power Output	75W (8 ohms, 20 Hz - 20 kHz, 0.08% THD, 2 channels driven)
