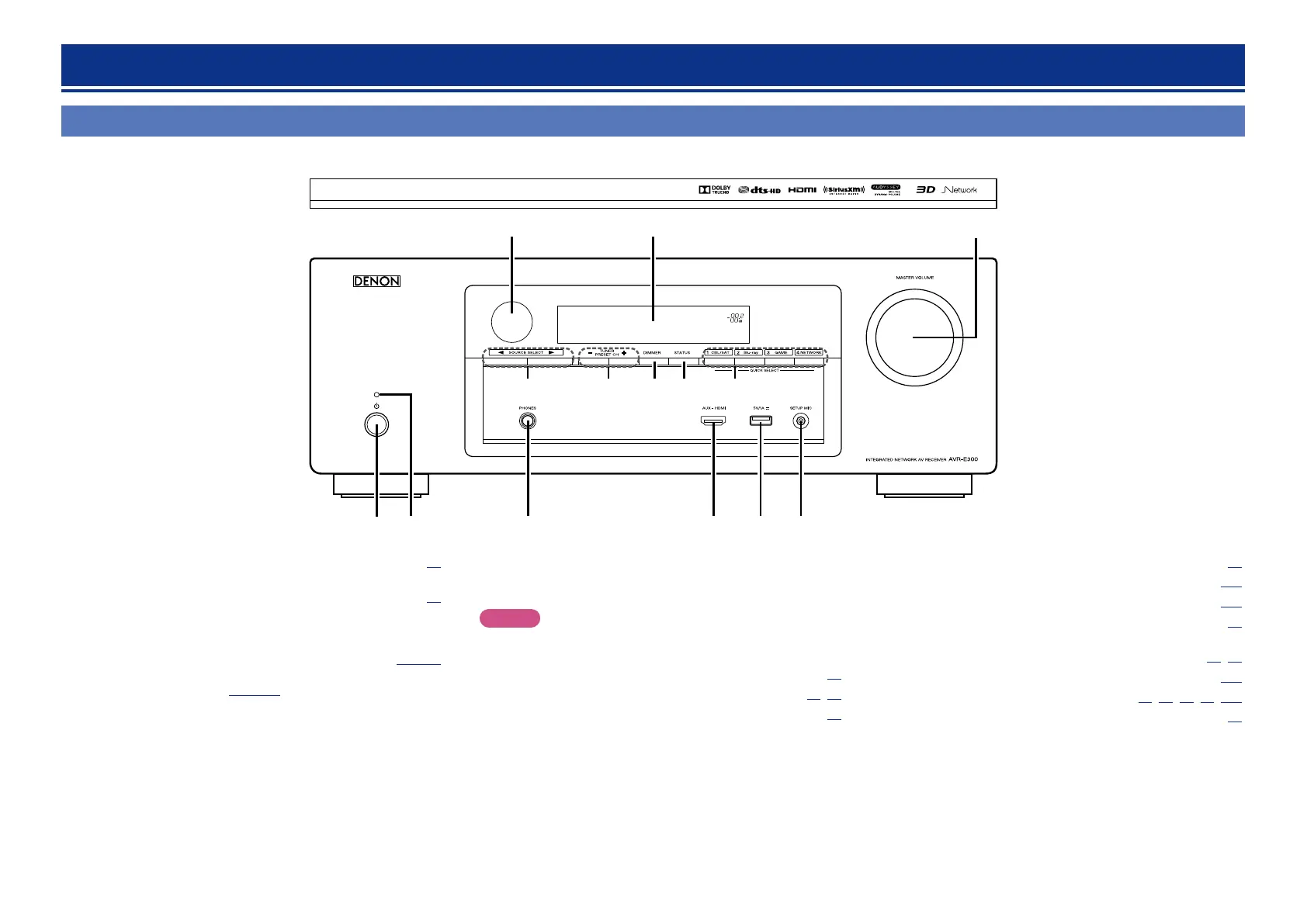

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
Q0 Q4Q1 Q2 Q3
yr teq w
io u
q Power operation button (X) ··················································· (27)
Turns power to this unit on and o (standby).
w Power indicator ······································································· (27)
GPower indicator statusH
•Power on : Green
•Normal standby : O
•When “HDMI Pass Through” or “HDMI Control” (vpage92)
is set to “On” : Red
•When “IP Control” (vpage103) is set to “Always On” : Red
u MASTER VOLUME knob ························································· (28)
i Display ···················································································· (113)
o Remote control sensor ························································· (116)
Q0 SOURCE SELECT buttons (0 1) ··········································· (27)
Q1 Tuner preset channel buttons
(TUNER PRESET CH +, –) ·················································· (35, 39)
Q2 DIMMER button ····································································· (107)
Q3 STATUS button ············································· (30, 45, 49, 61, 108)
Q4 QUICK SELECT buttons ·························································· (80)
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
r AUX-HDMI connector ····························································· (10)
t USB port ············································································· (16, 33)
y SETUP MIC jack ······································································· (21)
