Denon AVR-E300 User Manual

76
Speaker connection
n About the speaker cable label (supplied) for channel identification
The channel display section for speaker terminals on the rear panel is color-coded for each channel to
be identifiable.
Speaker terminals Color
FRONT L White
FRONT R Red
CENTER Green
SURROUND L Light blue
SURROUND R Blue

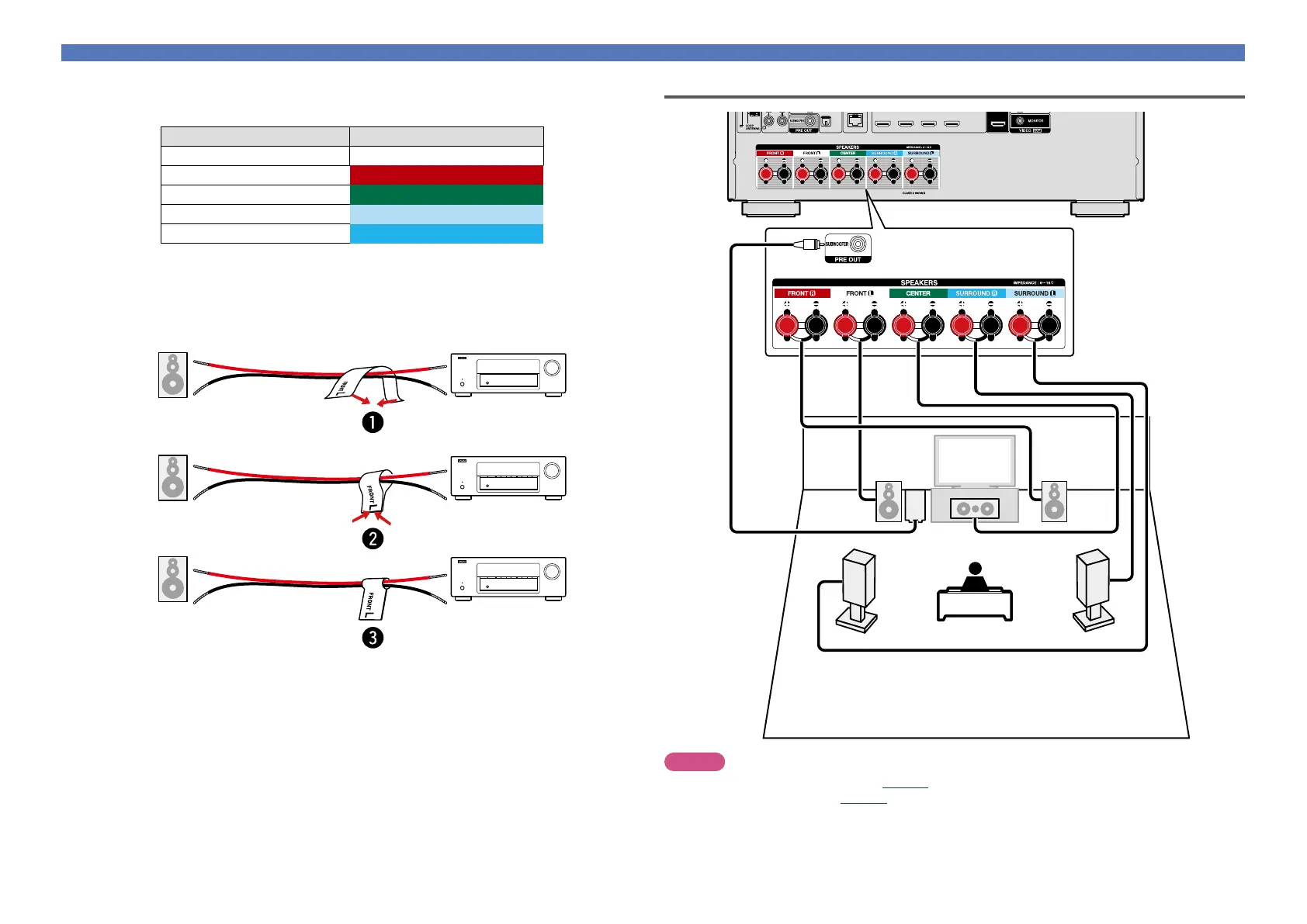

Attach the speaker cable label for each channel to its speaker cable as shown in the diagram.
Then, make connection so that the color of the speaker terminal matches that of the speaker cable
label.
GHow to attach the speaker cable labelH
Speaker This unit
Connecting 5.1-channel speakers
FL FR
C
SL
SR
SW
NOTE
•For speaker cable connections, see page75.
•For speaker impedance, see page75.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD

Denon AVR-E300 Specifications

General

Channels	5.1
HDMI Inputs	4
HDMI Outputs	1
3D Pass-through	Yes
Audio Return Channel (ARC)	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Networking	No
AirPlay	No
Audyssey MultEQ	Yes
HDMI Pass-Through	Yes
Receiver Type	AV Receiver
HDMI Ports Quantity	5
Audio DAC	192 kHz / 24-bit
Digital Sound Processor (DSP)	Yes
Input Sensitivity	200 mV
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
Tuner Bands	AM/FM
Amplifier Type	Discrete
Frequency Response	10 Hz - 100 kHz
Bluetooth	No
Wi-Fi	No
Output Power / Total	375 W
Input Impedance	47 kOhms
Video Inputs/Outputs	Composite
Audio Inputs/Outputs	Digital Optical
Power Output per Channel	75 W (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Power Output	75W (8 ohms, 20 Hz - 20 kHz, 0.08% THD, 2 channels driven)
