Denon AVR-S910W Service Manual

+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
0dBFS
0.88Vrms
PREOUT
159mVrms
AVR-S910W/X2200W

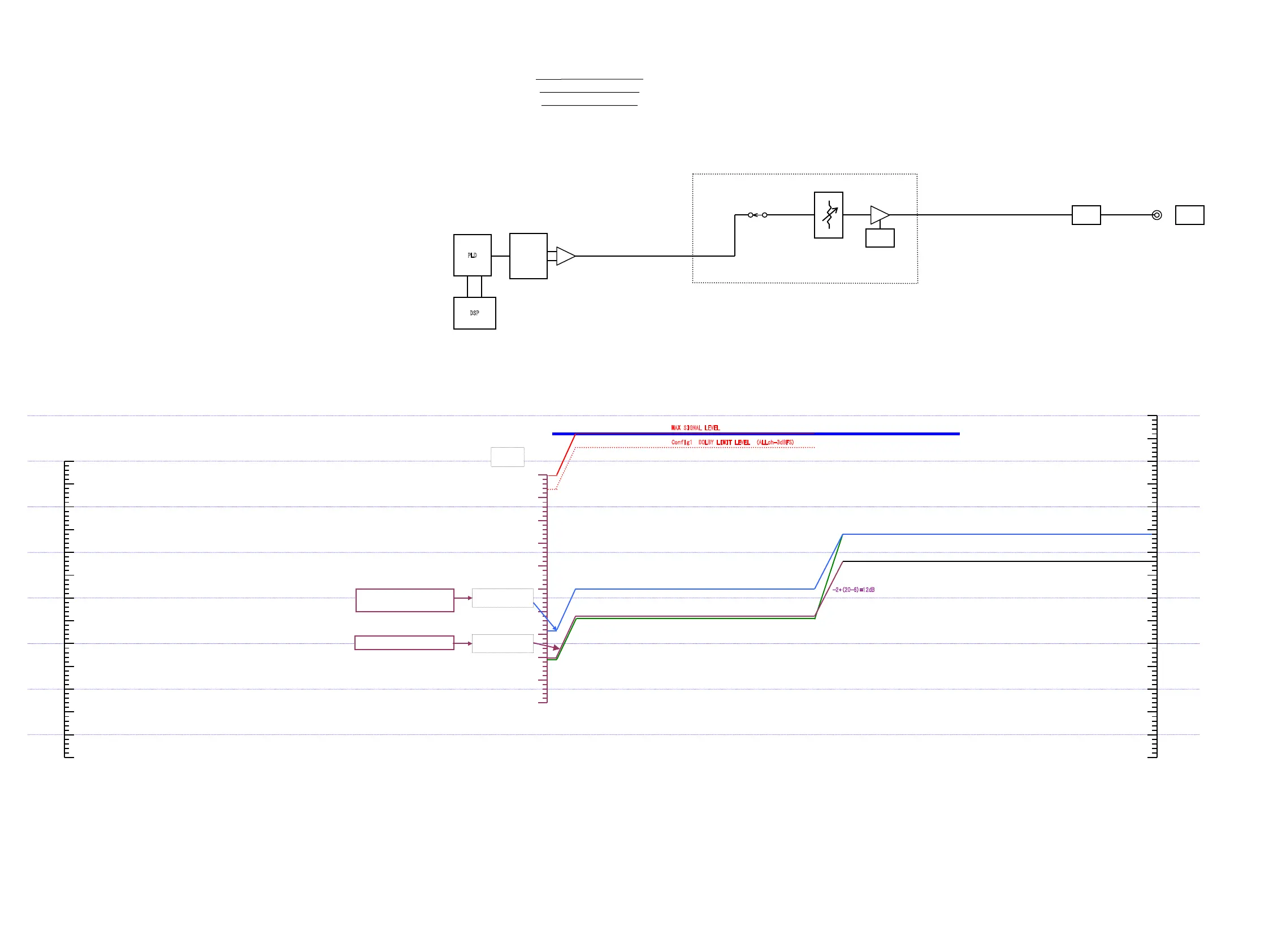

LEVEL DIAGRAM
SUBWOOFER ch
0dBFS
-10dBFS
-20dBFS
-30dBFS
-40dBFS
200mV
+30dB
M
AX SIGNAL LEVEL
+9.5dB
-2+(20-6)=12dB
Config1 DOLBY LIMIT LEVEL (ALLch-3dBFS)
-50dBFS
-40dBFS(DIG.IN)
DD Config1
INPUT:-30dBFS DD LFE
PREOUT
317mVrms
-34dBFS(PCM.IN)
-40.5dBFS(A/D IN)
INPUT : -20dBFS(DIG.IN) PCM
200mV(A/D IN)
＋
DSP
BD34704
GAIN
PRE OUT MUTE
PCM1690
D/A
－
－
＋
PLD
