Denon AVR-S910W Service Manual

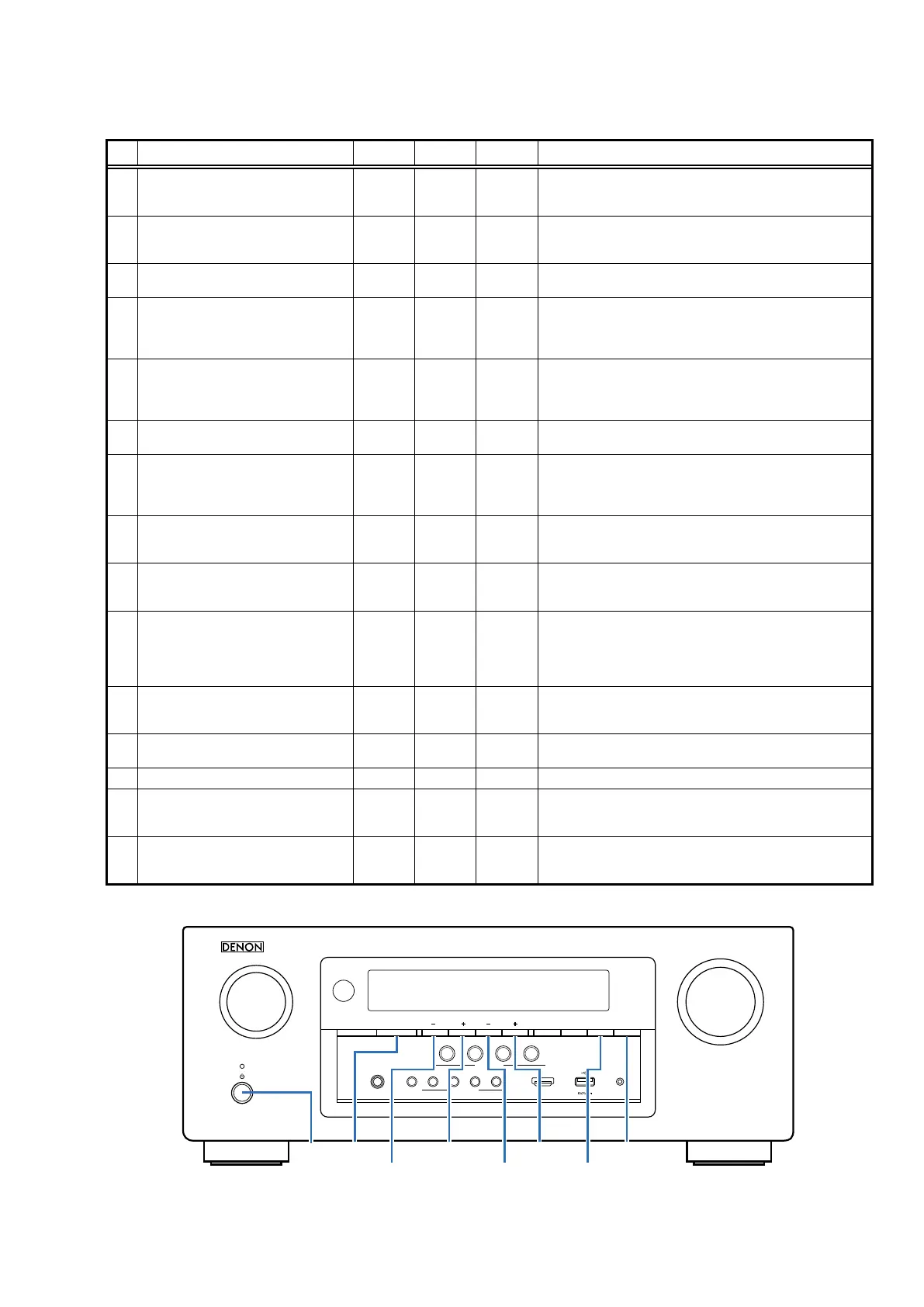

Special mode setting button (AVR-S910W)
b
No. 1 - 6 : While holding down buttons "
A
", "
B
" and "
C
" simultaneously, press the power button to turn on the power.
b
No. 7 : While holding down buttons "
A
" and "
B
" simultaneously, insert the AC plug into the wall outlet to turn on the power.
No. Mode Button A Button B Button C Descriptions
1
Version Display
(u-COM / DSP Error Display)
DIMMER STATUS -
Displays the version of rmware such as the main rmware or DSP.
Errors that have occurred are displayed.
(See page 24)
2
Selecting the Mode for Service-related
TUNER
PRESET CH
+
TUNE - TUNE +
This is a display for turning on each service-related mode.
Service-related modes: No. 2-1 - No. 2-5
2-1
Protection history display mode ↑ - -
Displays the protection occurrence history.
(See page 50)
2-2
Check the Video/Audio path Mode ↑ - -
This is a special mode for service conrmation used during repair
work to simplify the conrmation work for the Audio channel /
video channel.
(See page 30)
2-3
Remote ID Setup Mode ↑ - -
If there are multiple DENON AV receivers in the same area, this
mode prevents other AV receivers from being operated concur-
rently with this device.
(See page 54)
2-4
TUNER STEP Mode
(E3 and E2 model only)
↑ - -
Enables reception STEP of the ANALOG TUNER to be changed.
(See page 53)
2-5
Operation Info Mode ↑ - -
Displays the accumulated operating time of the unit, the number
of times the power was switched on, and the number of occurrenc-
es of each protection.
(See page 52)
3
User Initialization Mode
TUNER
PRESET CH
-
TUNER
PRESET CH
+
-
Initializes backup data.
(Settings for the Installer Setup are not initialized.)
4
Factory Initialization Mode
TUNER
PRESET CH
+
TUNE - -
Initializes backup data.
(The settings for the Installer Setup is also initialized.)
5
PANEL / REMOTE LOCK Selection Mode
ZONE2
SOURCE
TUNER
PRESET CH
+
-
Start this unit in the PANEL/REMOTE LOCK selection mode so that
PANEL LOCK and Remote Lock can be switched between ON and
OFF.
(See page 28)
PANEL LOCK MODE : No. 5 - 1 - No. 5 - 3
5-1
PANEL LOCK Mode
(with Volume)
TUNER
PRESET CH
+
- -
This function disables reception from all keys and encoders on the
front panel except the power button (including the volume).
5-2
PANEL LOCK Mode
(without Volume)
↑ - -
This function disables reception from all keys and encoders on the
front panel except the power button and volume encoder.
5-3
PANEL LOCK mode is turned off ↑ - - This function releases the PANEL LOCK.
6
Protection Pass Mode
ZONE2
SOURCE
TUNER
PRESET CH
+
TUNE +
Enables the power to be turned on when protection detection is
disabled.
(See page 55)
7
Forced USB All Device Write Mode TUNE +
ZONE2
SOURCE
-
Mode used when this unit cannot be recovered.
Forcibly switches this unit to USB update mode.
(See page 62)
SETUP MICAUX 1 - HDMI
MASTER VOLUME
BAND MODE DIMMER STATUS
TUNEZONE2 ON/OFF ZONE2 SOURCE
TUNER
PRESET CH
PHONES
MOVIEINFO MUSIC GAME PURE
CBL/SAT
Blu-ray
2 3
4
ONLINE
1
QUICK SELECT
SOUND MODE
GAME
SOURCE SELECT
TUNE
－
DIMMER
STATUSZONE2
SOURCE
TUNE +
X
TUNER
PRESET CH +
TUNER
PRESET CH
－
23
