Denon AVR-S910W Service Manual

CAUTION IN SERVICING (AVR-S910W)
Initializing This Unit
Make sure to initialize this unit after replacing the microcomputer or any peripheral equipment, or the digital PCB.

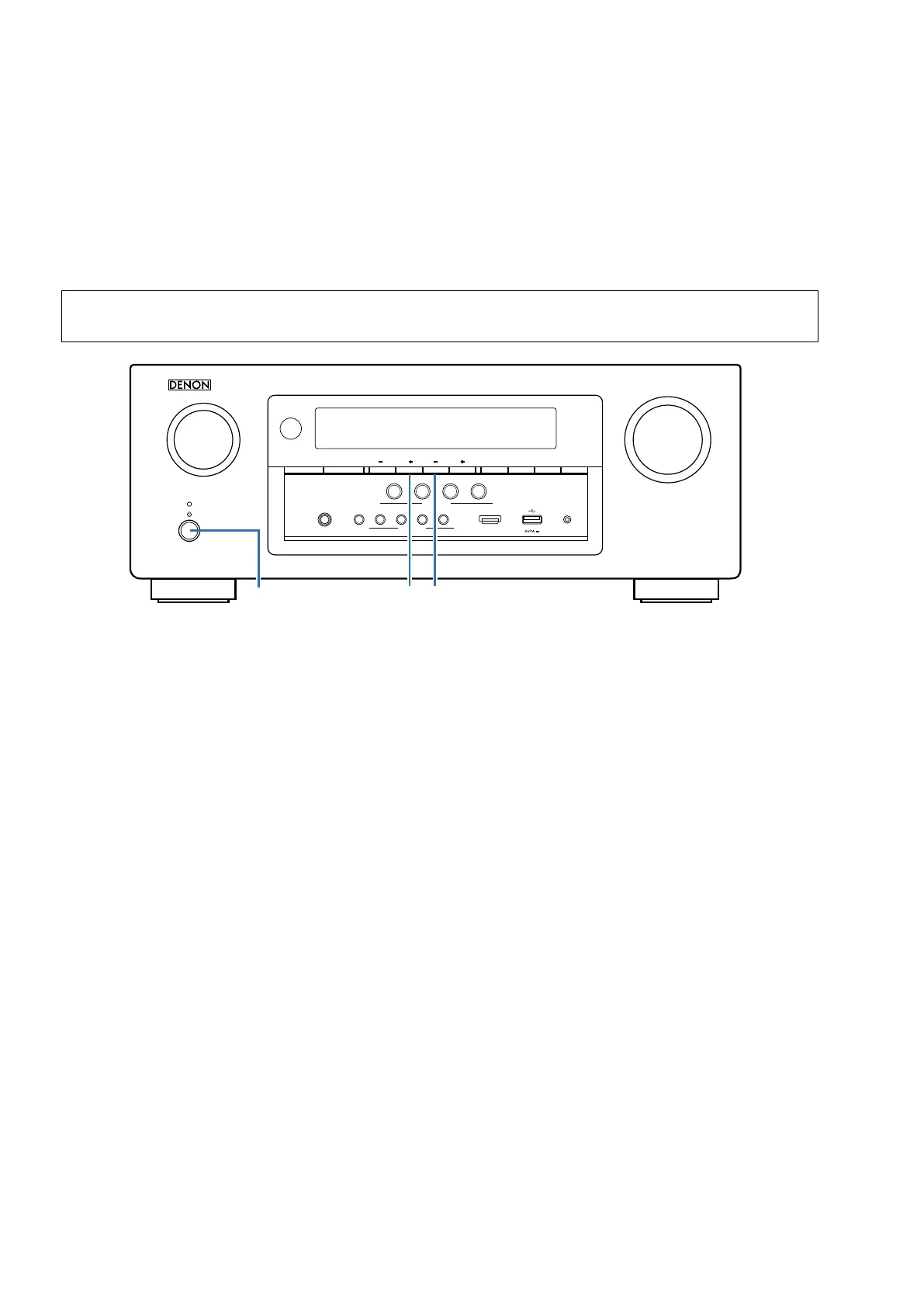

1. Press the power button to turn off the power.
2. While holding down buttons "
TUNER PRESET CH +
" and "
TUNE -
" simultaneously, press the power button to turn
on the power.
3. Release the buttons after conrming that the display ashes at 1-second intervals.
＊ The unit is initialized.
NOTE：
• If the unit fails to enter the service mode in step 3, repeat the procedure from step 1.
• Initializing the device restores the customized settings to the factory settings. Write down your settings in advance and
recongure the settings after initialization.
AVR-S910W
JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
8U-110084S : EXTENSION UNIT KIT : 1Sets
8U-110136S : EXTENSION UNIT KIT : 1Sets
(See page 57)
SETUP MICAUX 1 - HDMI
MASTER VOLUME
BAND MODE DIMMER STATUS
TUNEZONE2 ON/OFF ZONE2 SOURCE
TUNER
PRESET CH
PHONES
MOVIEINFO MUSIC GAME PURE
CBL/SAT
Blu-ray
2 3
4
ONLINE
1
QUICK SELECT
SOUND MODE
GAME
SOURCE SELECT
TUNING
－
X TUNER PRESET CH +
14

Denon AVR-S910W Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Power output per channel (1KHz@6 Ohm)	185 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
Composite video in	2
Digital audio coaxial in	1
Wi-Fi	Yes
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify
Optical drive included	No
Display	-
Product color	Black
Audio decoders	Dolby Surround, Dolby TrueHD
AC input voltage	120 V
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Audio formats supported	AAC, ALAC, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	337.82 mm
Width	434.34 mm
Height	167.64 mm
Weight	9389 g
