Denon AVR-S910W

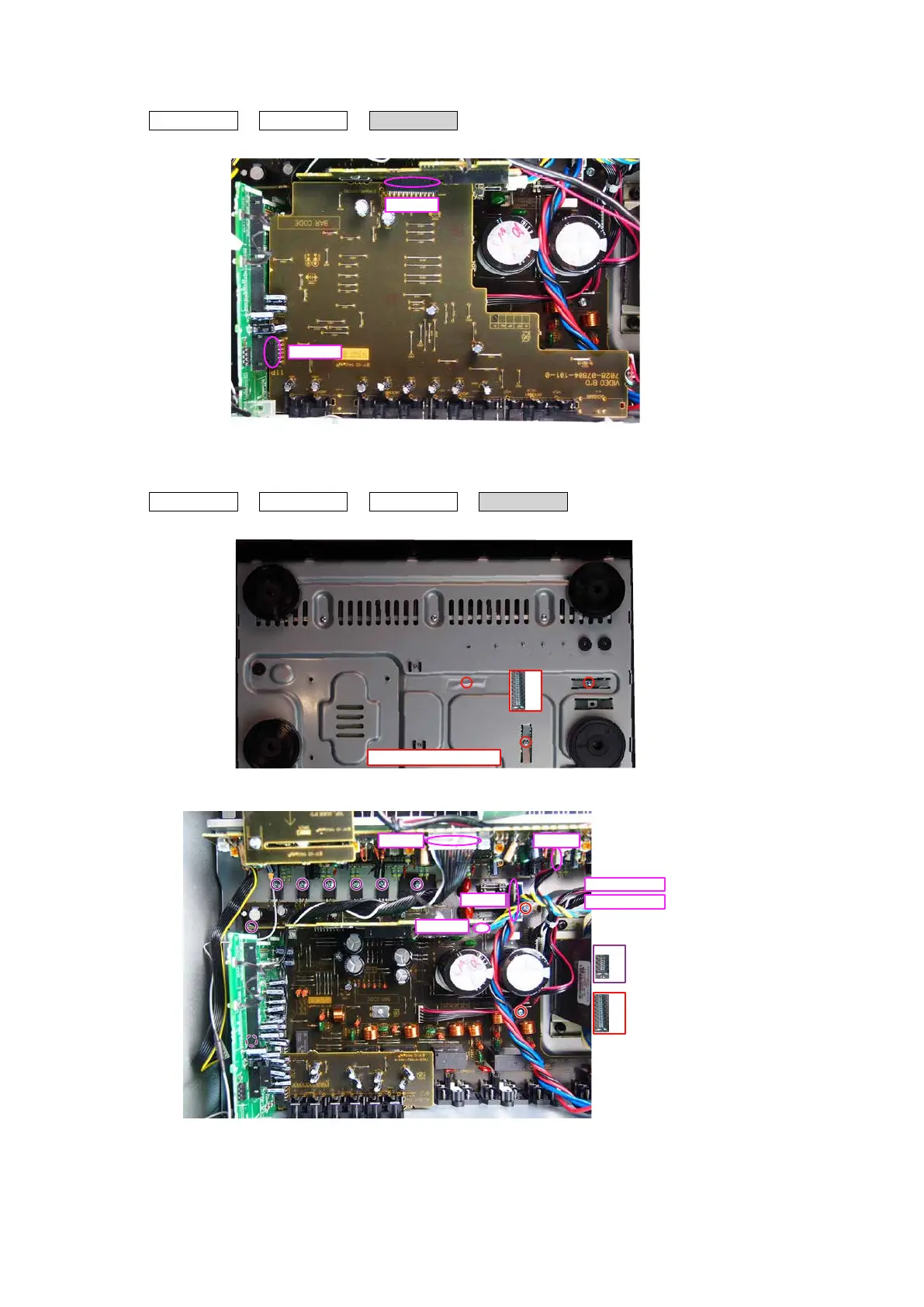

4. VIDEO PCB
Proceeding : TOP COVER
→
HDMI PCB
→
VIDEO PCB
(1) Remove the connector.
5. MAIN PCB
Proceeding : TOP COVER
→
HDMI PCB
→
VIDEO PCB
→
MAIN PCB
(1) Remove the screws.
(2) Remove the screws.
CN5000
CN5000
View from the bottom
x3
x8
x2
from CP405
from CP403
CP402CP401
CP401
CP5003
20
