Denon AVR-S910W Service Manual

JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.

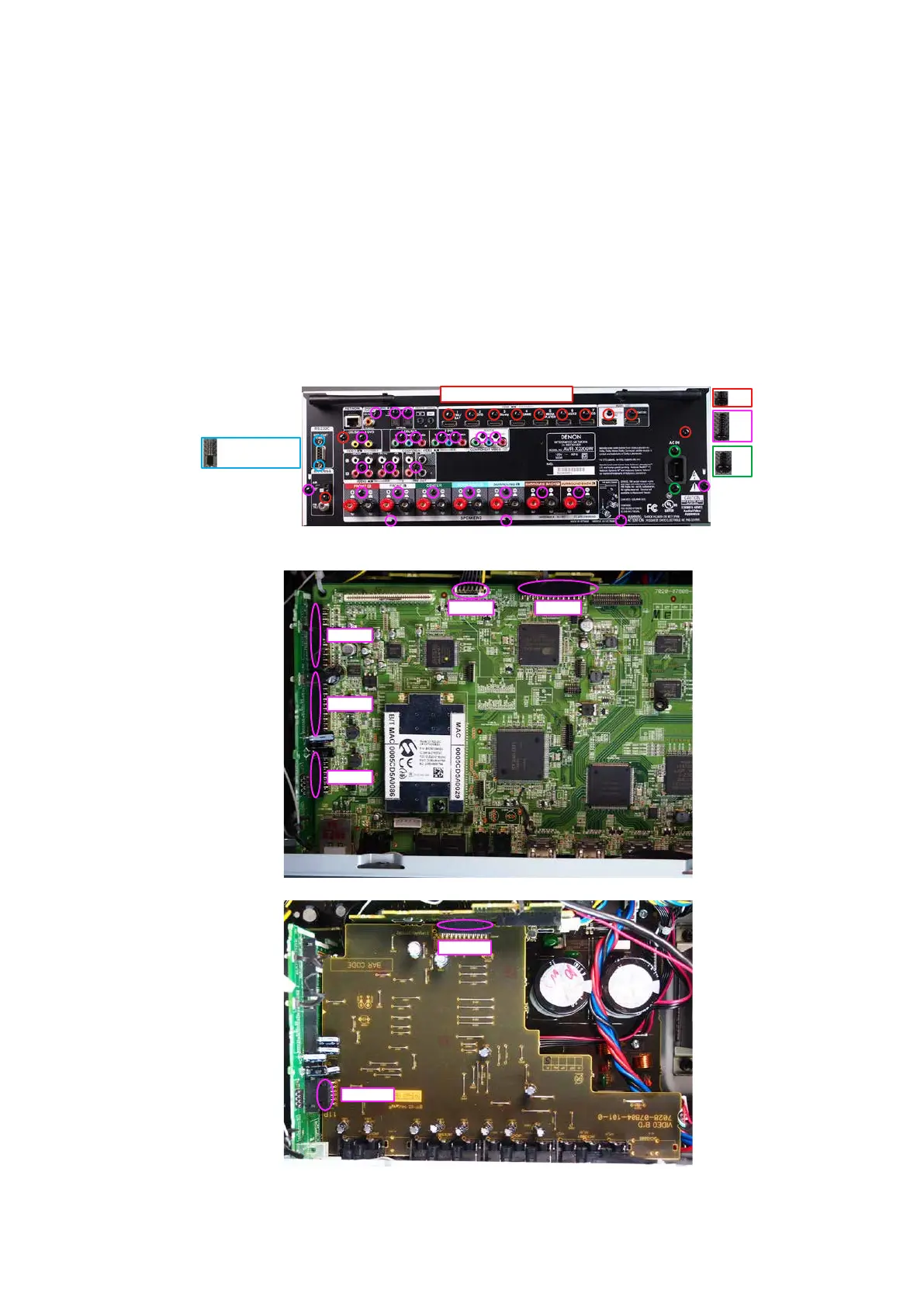

• Connection of Jig for HDMI PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1Sets
8U-110136S : EXTENSION UNIT KIT : 1Sets
Insulation sheet (Not supplied) : 2 sheets
Ground lead (Not supplied) : 2 pc
-Procedures-
(1) Remove the screws.
(2) Remove the connector PCB.
Shooting direction: A
x12
x25
x2 E3 ONLY
x2
N1039N1019
N1014
N1016
N1020
CN5000
CN5000
57

Denon AVR-S910W Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Power output per channel (1KHz@6 Ohm)	185 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
Composite video in	2
Digital audio coaxial in	1
Wi-Fi	Yes
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify
Optical drive included	No
Display	-
Product color	Black
Audio decoders	Dolby Surround, Dolby TrueHD
AC input voltage	120 V
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Audio formats supported	AAC, ALAC, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	337.82 mm
Width	434.34 mm
Height	167.64 mm
Weight	9389 g
