Denon AVR-S910W Service Manual

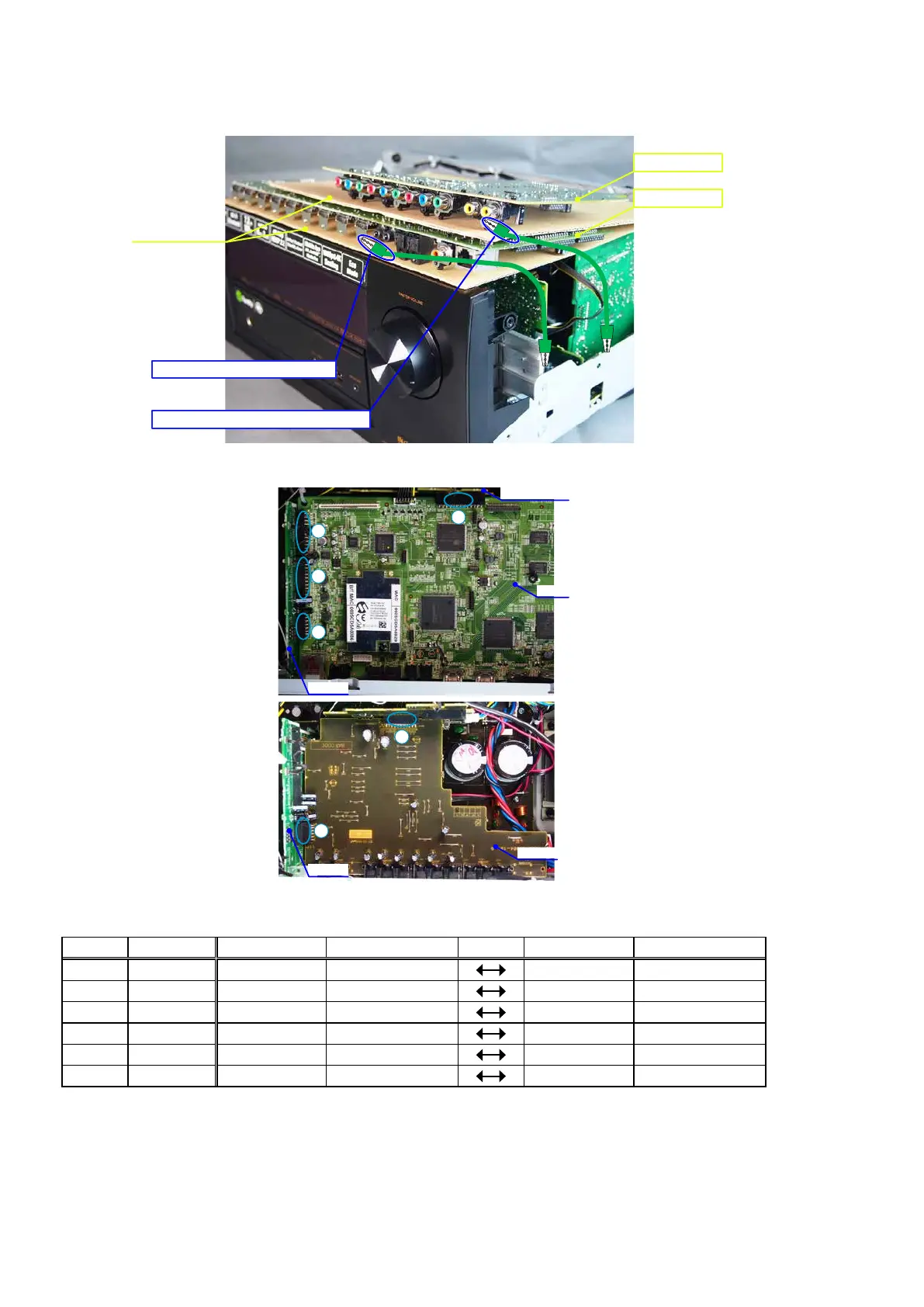

(3) Remove the HDMI PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the HDMI PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
(4) Connect the expansion cables.
Board-to-Board Connections
No. Pin Ref. No. PCB Ref. No. PCB
q
15pin CP4200 INPUT
N1020 HDMI
w
27pin CP4205 INPUT
N1016 HDMI
e
23pin CP4201 INPUT
N1014 HDMI
r
25pin CP3401 FRONT CNT
N1039 HDMI
t
11pin CP4204 INPUT
CN5003 VIDEO
y
21pin CP5000 FRONT CNT
CN5000 VIDEO
Insulation sheet
PCB DIGITAL
PCB VIDEO
CHASSIS-HDMI CONNECTOR
CHASSIS-COMPOSIT CONNECTOR
FRONT CNT
HDMI
VIDEO
INPUT
INPUT
1
2
3
4
6
5
58

Denon AVR-S910W Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Power output per channel (1KHz@6 Ohm)	185 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
Composite video in	2
Digital audio coaxial in	1
Wi-Fi	Yes
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify
Optical drive included	No
Display	-
Product color	Black
Audio decoders	Dolby Surround, Dolby TrueHD
AC input voltage	120 V
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Audio formats supported	AAC, ALAC, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	337.82 mm
Width	434.34 mm
Height	167.64 mm
Weight	9389 g
