Denon AVR-S910W

2. RADIATOR ASSY
Proceeding : TOP COVER
→
FRONT PANEL ASSY
→
RADIATOR ASSY

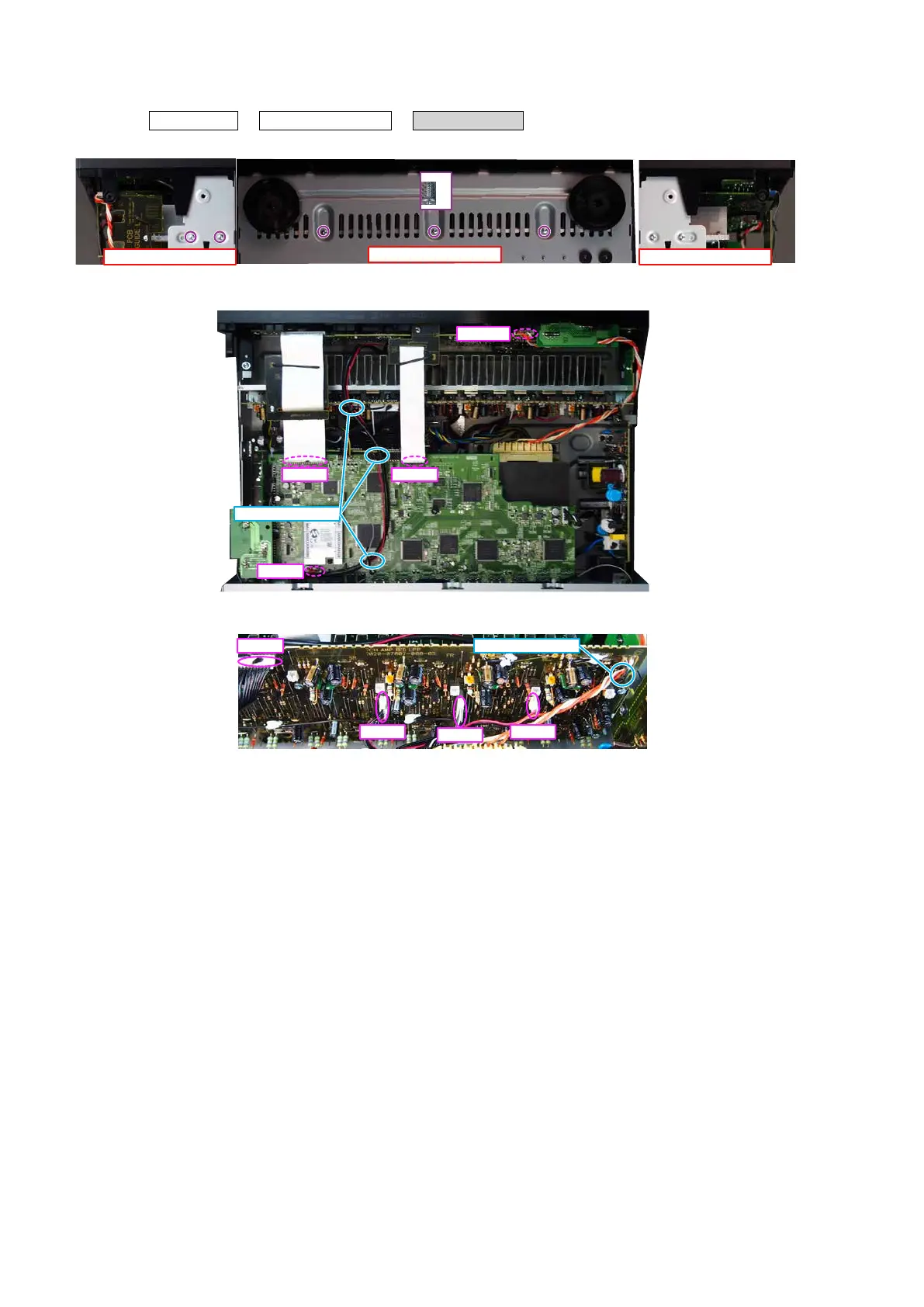

(1) Remove the screws.
(2) Remove the screws. Remove the CORD HOLDERs and connector wires. Remove the FFC.
(3) Remove the CORD HOLDERs and connector wires.
View from the bottom
Shooting direction: C Shooting direction: D
x7
FFC FFC
N1008
CP4400
CORD HOLDER
CP405
CP403
CP402
CP401
CORD HOLDER
