Denon AVR-S910W Service Manual

3. HDMI PCB
Proceeding : TOP COVER
→
HDMI PCB

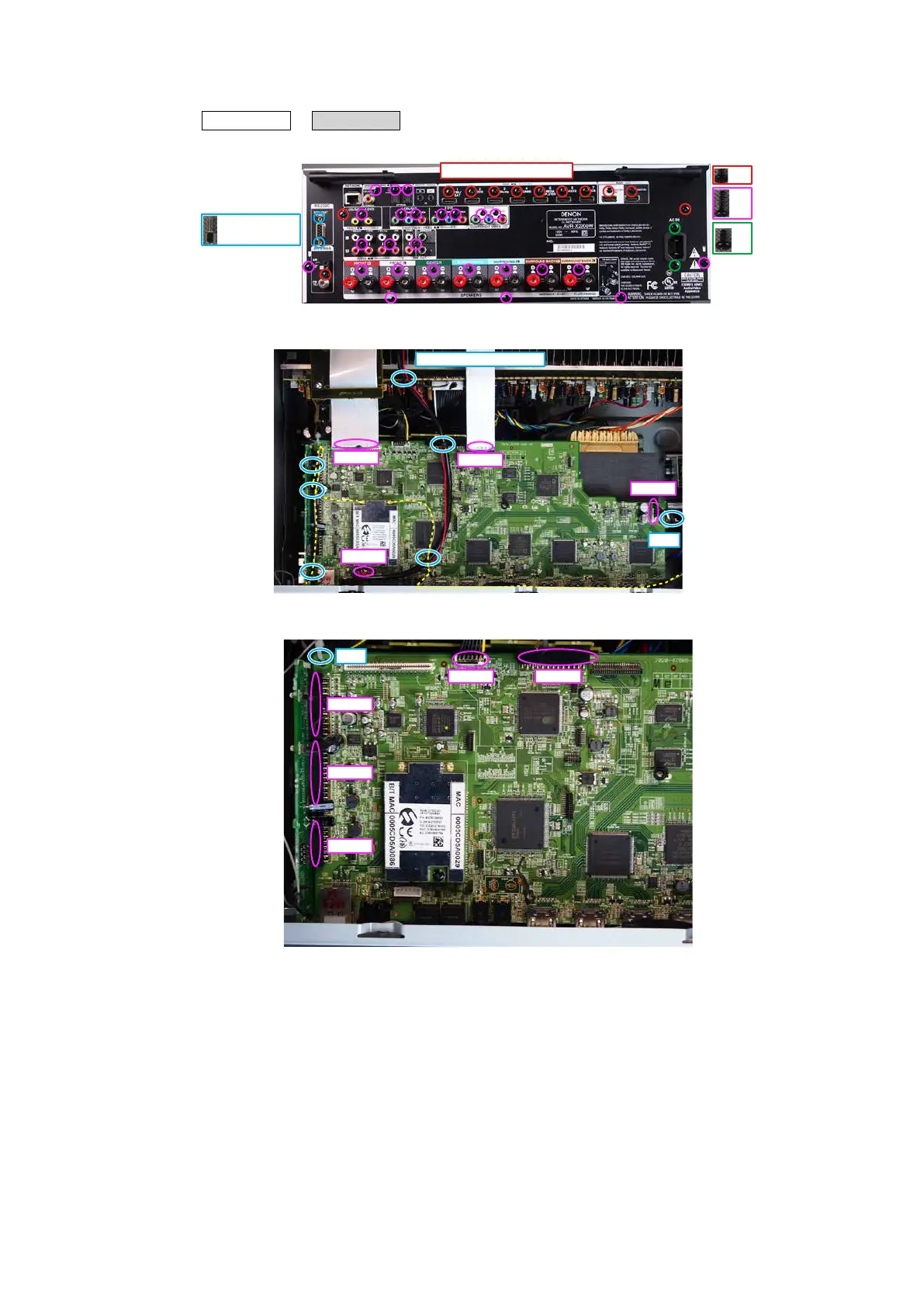

(1) Remove the screws.
(2) Cut the wire clamps, then remove the CORD HOLDERs and connector wires. Remove the FFC.
(3) Cut the wire clamp, then remove the connector.
Shooting direction: A
x12
x25
x2 E3 ONLY
x2
FFC
FFC
N1008
N1033
CORD HOLDER x 6
CUT
N1039N1019
N1014
N1016
N1020
CUT
19

Denon AVR-S910W Specifications

General

Receiver type	Surround
Audio output channels	7.2 channels
Power output per channel (1KHz@6 Ohm)	185 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
Composite video in	2
Digital audio coaxial in	1
Wi-Fi	Yes
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify
Optical drive included	No
Display	-
Product color	Black
Audio decoders	Dolby Surround, Dolby TrueHD
AC input voltage	120 V
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W
Audio formats supported	AAC, ALAC, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	337.82 mm
Width	434.34 mm
Height	167.64 mm
Weight	9389 g
