Denon AVR-X3000 Service Manual

ANALOG AUDIO DIGITAL AUDIO TMDS SIGNAL ANALOG VIDEOGND LINE POWER- LINEPOWER+ LINE DIGITAL VIDEO STBY POWER
TP
TP
TP
TP
TP
TP
RS232C/TRIGGER
C1+
V+
C1-
C2+
C2-
V-
T2_O
R2_I
R2_O
T2_I
T1_I
R1_O
R1_I
T1_O
GND
VCC
RS-232C
REMOTE IN(AVR ONLY)
FLASHER (OPEN)
AVR : RemoteOut
IR / FLASHER
REMOTE IN
OUT1
TRIGGER
<ANAM PN# / MFG PN# / Color>
# TRIGGER JACK OPTION
CJJ2D019Z / PJ-308-02-RD / RED
JK523(TRGOUT1)
AVRX3000
PJ-308-02
# Model Options
AVRX3000
F
G
H OPEN
MOUNT
"H" OPTION
"G" OPTION
"F" OPTION
(TRG_GND->DGND For EMI)
C5231
0.1uF
C5233
0.1uF
C5234
0.1uF
R5231
1K
C5232
OPEN
C5237
0.1uF
C5235
0.1uF
C5236
10/50V
R5232
1K
R5234
1K
R5233
1K
C5238
33P
C5239
33P
D5231
OPEN
D5232
OPEN
161 51 41 31211109
8 7 6 5 4 3 2 1
IC521
ILX3232D
1
6
2
7
3
8
4
9
5
JK521
D227FD009S100BY/YUQIU
1
2
3
JK525
PJ-308-02
1
2
3
JK526
PJ-308-02
D5252
1SS355T
C5251
1000P
D5253
OPEN
R5251
1K
C5252
0.1uF
C5253
1000P
D5256
KDS160RT KP
D5257
BVDSIR34ST3F
R5256
1K
R5257
1K
C5257
0.1uF
C5258
OPEN
C5259
OPEN
R5258
100
C5254
OPEN
C5255
OPEN
C5256
0.1uF
R5255
100
R5252
3.3K
R5253
2.2K
R5254
100K
321
VccGNDVOU T
RC521
CRVHM 336R
R5259
OPEN
D5258
OPEN
D5251
RB521S-30
D5254
RB521S-30
Q5254
OPEN
Q5251
RT1P141C
Q5253
RT1P441C
Q5252
2SC3052
JK523
PJ-308-02
1
2 3
Q5212
CVT RT1N141C
Q5211
2SA2166
R5212
4.7K
R5211
4.7K
C5213
0.1uF
D5211
Z
ENER(16V/0.5W)
C5212
0.1uF
C5214
1000P
DGND
DGND
REMOTE3.3V
DGND
232O_MI
232I_MO
TRIGGER_1
TRG+12V
DGND
M3.3V
RC_IN
FLASHER_IN_MZ
B/P_IRIN_DE
TRG1_OU T
7F
TO F7

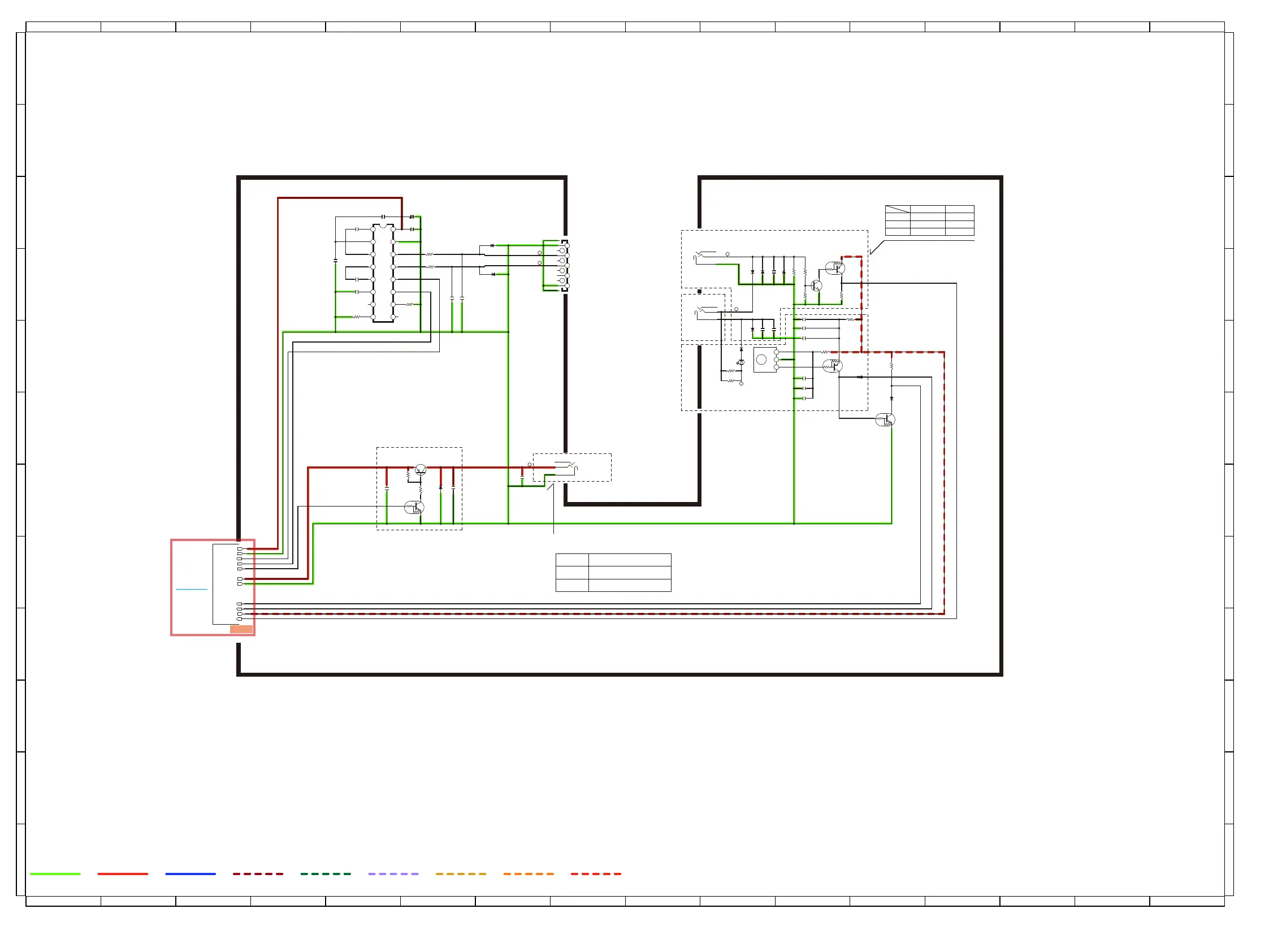

SCHEMATIC DIAGRAMS (23/30)
SCH23_VIDEO_RS232C_TRIGGER
140
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A
B
C
D
E
F
G
H
J
K
L
M
A
B
C
D
E
F
G
H
J
K
L
M
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Denon AVR-X3000 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	16 Ω
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	7
Audio (L/R) in	5
Composite video in	3
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
RDS features	PTY, TP
AM band range	520 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify, vTuner
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	VFL
Color depth	24 bit
Aspect ratio	4:3, 16:9
Product color	Black
Audio decoders	DTS Neo:X, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD, DTS-HD Master Audio
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	10700 g
