Denon AVR-X3000 Service Manual

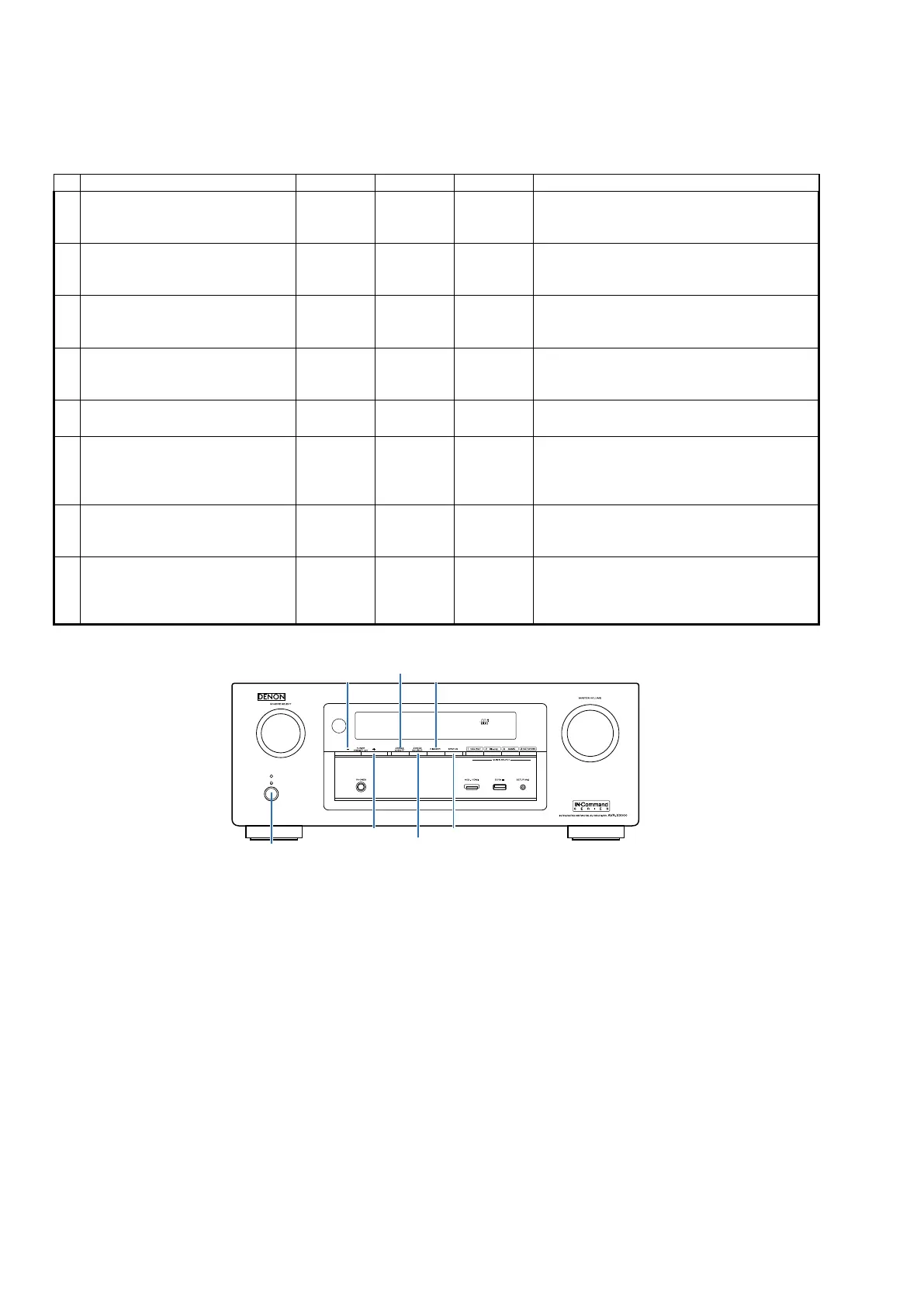

Special mode setting button
b
No.1 - 5, 7, 8 : Press the
"Power operation (
X
)" button to turn on the power while pressing both the buttons A and the button B at the
same time.
b
No.6 : Turn on the power, then press and hold down the A and B buttons for over 3 seconds.
No. Mode Button A Button B Button C Contents
1
Version display
(μcom/DSP Error Display)
STATUS DIMMER -
Firmware versions such as Main or DSP are
displayed in the FL Display. Errors are displayed
when they occur. (Refer to 21 page)
2
User Initialization mode
(Installer Setup settings are not
initialized.)
TUNER
PRESET CH
+
TUNER
PRESET CH
–
-
Backup data initialization is carried out.
(Installer Setup settings are not initialized.)
3
Factory Initialization mode
(Installer Setup settings are also
initialized.)
ZONE2
SOURCE
DIMMER -
Backup data initialization is carried out.
(Installer Setup settings are also initialized.)
4
PANEL/REMOTE LOCK Selection
mode
ZONE2
SOURCE
TUNER
PRESET CH
+
-
Selects to reject operations through panel buttons
and the master volume knob on the main unit and
operations via the remote control.
5 Service Related Selection mode
ZONE2
SOURCE
DIMMER STATUS
Selects the “Diagnostic mode” or “Displaying the
protection history mode”. (Refer to 54 page)
6 Remote ID Setup mode STATUS DIMMER -
When using multiple DENON AV receivers in
the same room, make this setting so that only
the desired AV receiver operates. (Refer to 57
page)
7
Mode for switching tuner frequency
step
(E2 model Only)
TUNER
PRESET CH
+
DIMMER - Change tuner frequency step to FM:50kHz/200kHz
8 Installer Setup mode
ZONE2
SOURCE
TUNER
PRESET CH
-
-
Access the Remote Maintenance mode via the
internet.Installer Setup is displayed on GUI/Option
Menu.
b
Refer to AVR_RemoteMaintenance_.pdf of SDI.
X
DIMMERTUNER PRESET CH –
ZONE2 SOURCE
ZONE2 ON/OFF
STATUSTUNER PRESET CH +
SPECIAL MODE
18

Denon AVR-X3000 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	16 Ω
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	7
Audio (L/R) in	5
Composite video in	3
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
RDS features	PTY, TP
AM band range	520 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify, vTuner
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	VFL
Color depth	24 bit
Aspect ratio	4:3, 16:9
Product color	Black
Audio decoders	DTS Neo:X, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD, DTS-HD Master Audio
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	10700 g
