Denon AVR-X3000

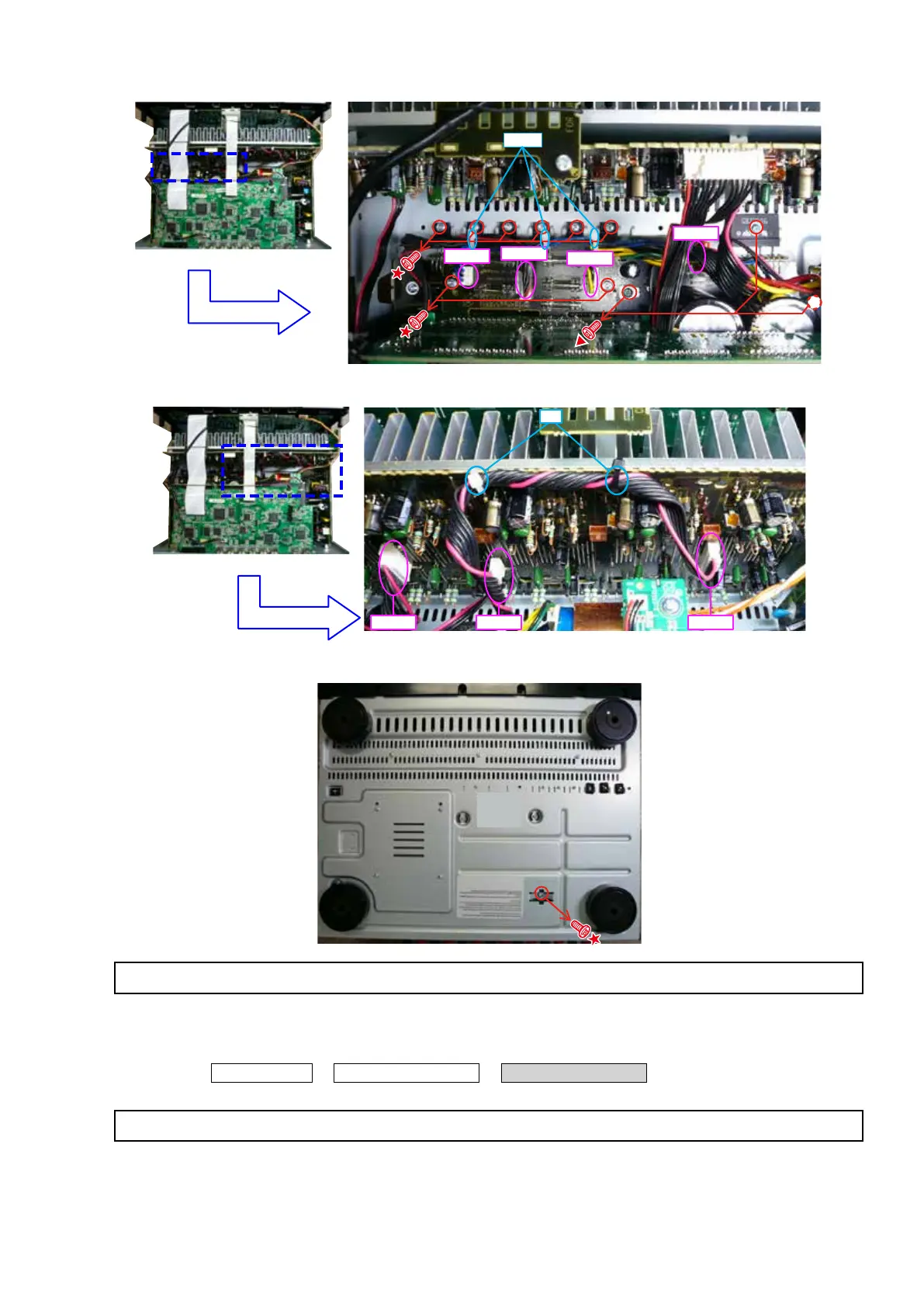

(8) Cut the wire clamp band, then remove the screws. Disconnect the connector wires.
(9) Cut the wire clamp band, then disconnect the connector wires.
(10) Remove the screw.
4. TRANS MAIN
Proceeding : CABINET TOP
→
DIGITAL UNIT ASSY
→
POWER TRANS
CN941
CN932
CN940
CN971
cut
CN701 CN703 CN702
cut
View from the bottom
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in DIGITAL UNIT ASSY.
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in TRANS MAIN.
