Denon AVR-X3000 Service Manual

B+
B-
AC CORD
RELAY
!
!
!
MAIN TRANS
S3 + 57mA
!
S6(FILAMENT)
S5(FL+Vdisp)
S2(+8V,-8V)
S1(AMP+B,-B)
KIA7808API
KIA7908PI
FILAMENT AC
A+5V (DAC,DIR/ADC)
KIA7805BPI
MAIN PWR ON
S3(VIDEO)
FILAMENT AC
KIA7905PI
AV-5V
KIA7805BPI
A+7V (A. AUDIO PART)
A-7V (A. AUDIO PART)
TRIGGER +12V
D3.3V-2
NJM2845DL118
CEC1.8V
NET1.2V
DA1.1V
NJM2845DL118
DV5.0V
NET POWER 1
NET 3.3V
DA POWER
DA 3.3V
DV 3.3V
CEC POWER
CEC 3.3V
AVDD 1.8V
CEC POWER
DV POWER2
CEC 1.8V
DV 1.8V
NET 1.2V
DA 1.1V
NET POW
ER 1
DA POWER
NJM2845DL133
NJM2845DL133
SWM5V
M3.3V
MUTE3.3V
SWM3.3V
REMOTE 3.3V
USB +5V
CEC +5V
SCPU +3.3V
CEC POWER
VBUS
REMOTE POWER
CPU POWER
DM860
DM860,1G FLASH,256M SDRAM*2
DSP
PCM9211,LC89091,74VHC04
ADV8003,128M S.FLASH
ADV8003,512M_DDR2*2
AD8195
AVD7850,SN74LVC244APWR
AVD7850
MCU, EEPROM
MUTE
LEVEL CHG
74VHCT244AFT
FRONT USB
150mA
AVRX3000 : 147mA
102mA
57mA
DV1.8V
IC303
IC302
IC301
IC304
IC305
Q3001
Q3002
Q3004
IC123
IC310
Q3019
IC309
Q3015
Q3012
BD82065
Q3031
Q3033
IC156
Q3005
LAN8700,APPLE
PLD,DSP,16M FLASH,64M SDRAM
PCM1690
D3.3V-1
A
DV8003
HDMI OUTPUT
NJM2845DL133 M-X PORT
IC981
0.944A
0.605A
0.702A
2.38A
1.23A
2.49A
0.864A
0.045A
1.0A
1.0A
VIDEO+5V
VIDEO-5V
D5V
OPEN
OPEN (EN5339QI)
+3V3
NJM2887DL3
IC603
VFD POWER 4.19V
CPU POWER
KIA7805BPI
50mA
A.TUNER +5V
S4 + 330mA
S3 - 57mA
PVDD5,6 1.8VADV8003
VFD
OPEN
TC74VHC125
DCDC#3
DCDC#4
DCDC#1
DCDC#5
DCDC#6
DV POWER 1
Sil9575
0.67A
OPEN
SUB CPU
IC307
(EN5339QI)
(EN5339QI)
(EN5339QI)
(EN5339QI)
(EN5339QI)
DCDC#2
(AVD7850)
M-X PORT,RC-5
SCPU +5V
CEC1.3V
CEC POWER
IC306
0.983A
DCDC#7
(EN5339QI)
CPU POWER
SCPU POWER
D5V POWER
CEC1.3V
HI+B
HI-B
CEC BUFFER
IC320
DV POWER1
Q3003
NJM2845DL133
+3.3V (Z2 DAC)
45mA
IC422
IC931IC936
IC937
IC932
IC934
IC935
163mA
S2 + 344mA
S2 - 147mA
AVRX3000
AVRX3000
AVRX3000
KIA7812BPI
IC933
AV+5V
57mA
+12V(RELAY)
AVRX3000:180mA
AVRX3000 : 147mA
S4(ETC)
D5V POWER
SiI9575
AD8195
PVDD 1.8V
0.125A
AVRX3000 : 344mA
AVRX3000 : 147mA
AVRX3000 : 330mA
57mA
57mA
AVRX3000 : Vdisp(+37V) -> 11mA
CEC BUFFER, TC74VHC4051AFT
Q3017
0.105A
0.05A
0.02A
0.08A
0.05A
0.163A
1
3
4
2
S
G
D
12
3 4
JMP
OPEN
OPEN
0
0
OPEN
JMP

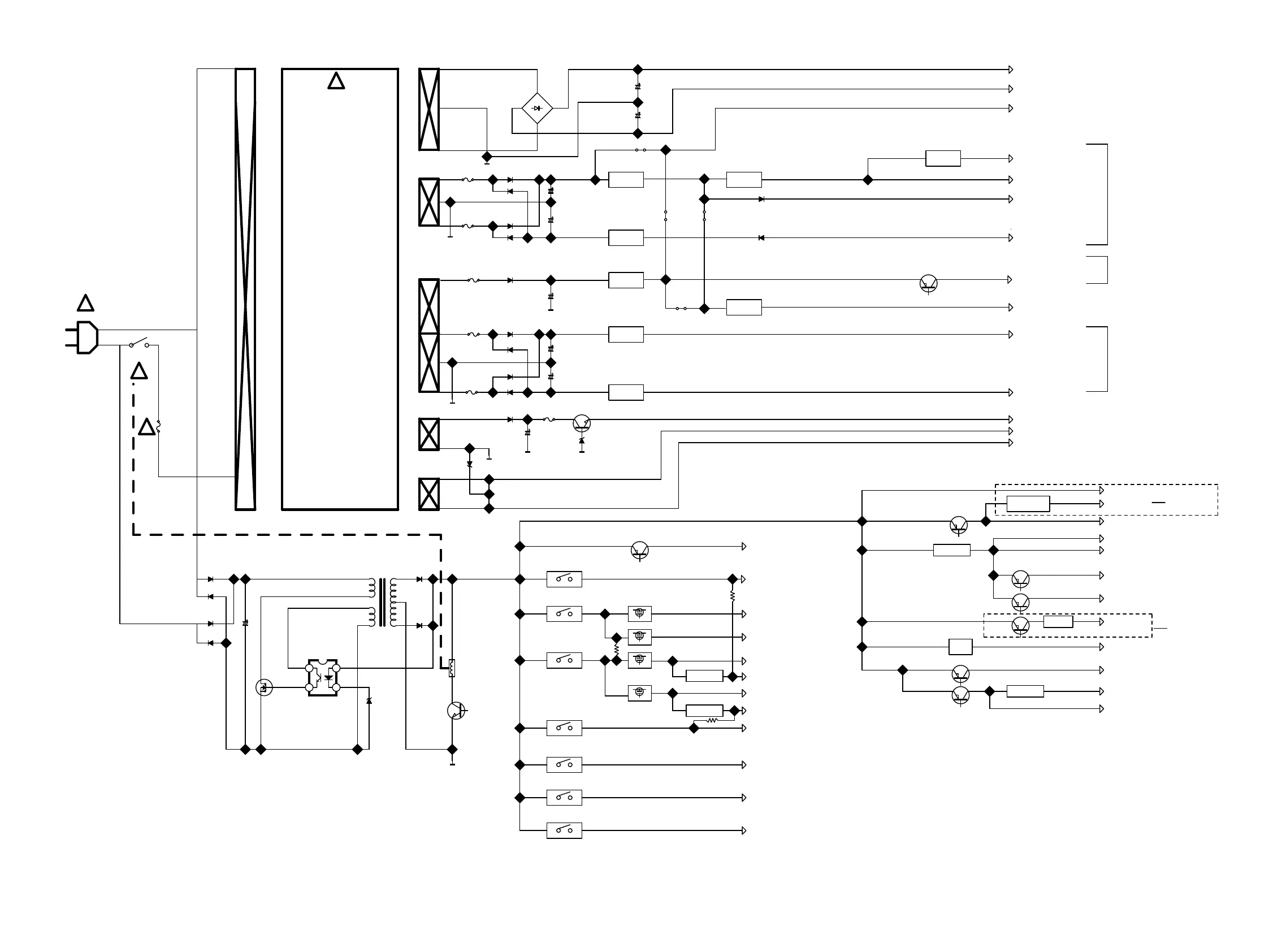

POWER DIAGRAM
107

Denon AVR-X3000 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	16 Ω
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	7
Audio (L/R) in	5
Composite video in	3
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
RDS features	PTY, TP
AM band range	520 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify, vTuner
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	VFL
Color depth	24 bit
Aspect ratio	4:3, 16:9
Product color	Black
Audio decoders	DTS Neo:X, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD, DTS-HD Master Audio
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	10700 g
