Denon AVR-X3000 Service Manual

n
Audio section
• Power amplifier
Rated output:
Front:
105 W + 105 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.
135 W + 135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Center:
105 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Surround:
105 W + 105 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Surround back:
105 W + 105 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Output connectors:
6 – 16 Ω/ohms
• Analog
Input sensitivity/Input impedance:
200 mV/47 kΩ/kohms
Frequency response:
10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N :
100 dB (IHF–A weighted, DIRECT mode)
n
Tuner section
(Note: μV at 75 Ω/ohms, 0 dBf = 1 x 10
–15
W)
Receiving Range:
FM 87.5 MHz – 107.9 MHz
AM 530 kHz – 1710 kHz
Usable Sensitivity:
FM 1.2 μV (12.8 dBf)
AM 18 μV
50 dB Quieting
Sensitivity:
MONO 2.8 μV (20.2 dBf)
S/N :
MONO 70 dB (IHF–A weighted, DIRECT mode)
STEREO 67 dB (IHF–A weighted, DIRECT mode)
Total harmonic
Distortion:
MONO 0.7 % (1 kHz)
STEREO 1.0 % (1 kHz)
n
General
Power supply:
AC 120 V, 60 Hz
AC 230 V, 50/60 Hz
Power consumption:
600 W
Power consumption in standby mode:
0.1 W
Power consumption in CEC standby mode:
0.5 W
Power consumption in network standby mode:
2.7 W
Unit : in. (mm)
Weight : 23 lbs 9 oz (10.7 kg
13 21/64 (338.5)
14 59/64 (379.0)
9 21/64 (236.8)
2 5/32
(54.7)
1 27/32
(47.0)
19/32 (15.0) 5 63/64 (152.0)
6 37/64 (167.0)
17 3/32 (434.0)
13 25/64 (340.0)
2 23/64
(60.0)
1 27/32
(47.0)
1 27/32
(47.0)
47/64
(18.5)
55/64
(22.0)

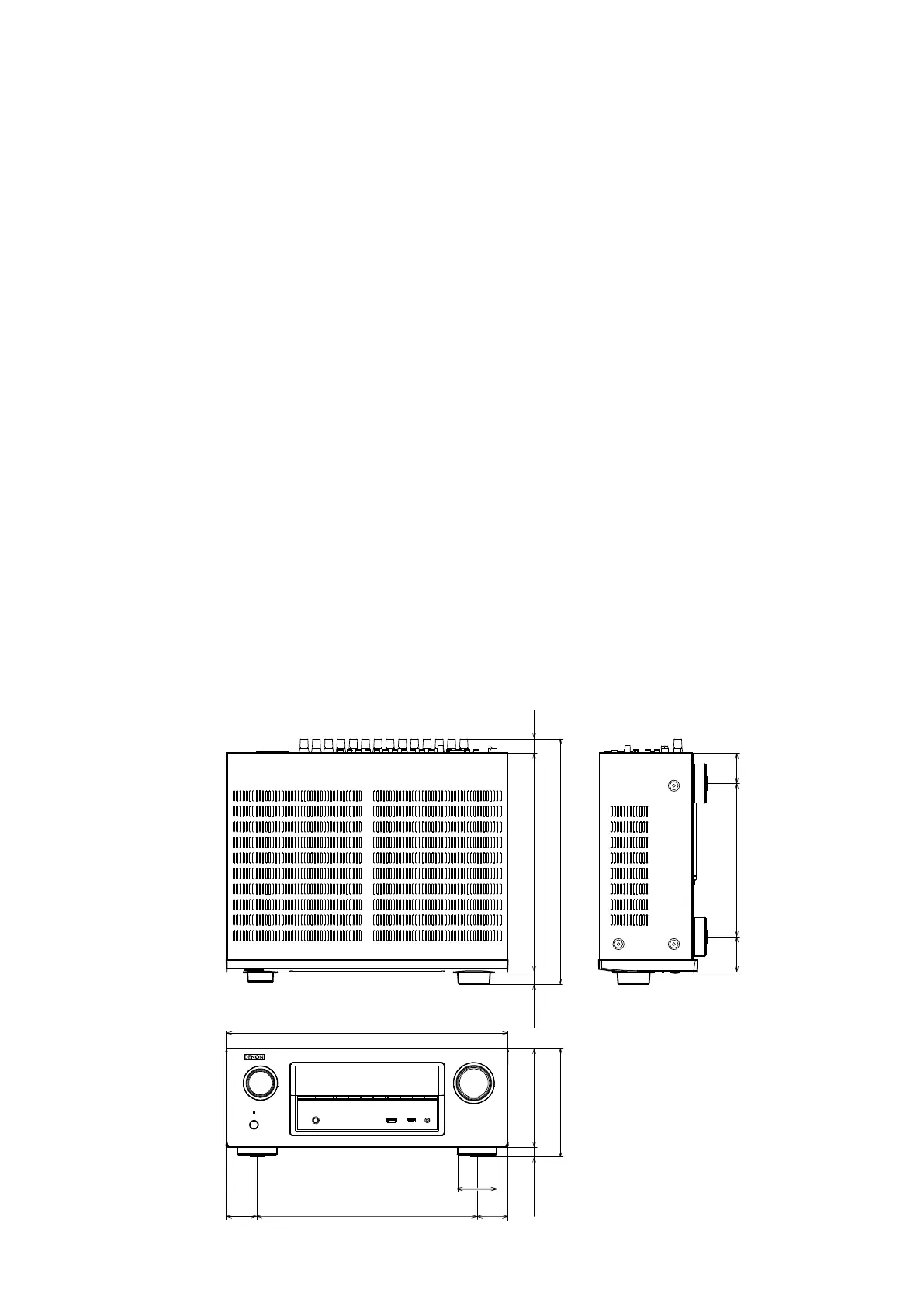

TECHNICAL SPECIFICATIONS
DIMENSION
9

Denon AVR-X3000 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Output impedance	16 Ω
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	7
Audio (L/R) in	5
Composite video in	3
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
RDS features	PTY, TP
AM band range	520 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Spotify, vTuner
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	VFL
Color depth	24 bit
Aspect ratio	4:3, 16:9
Product color	Black
Audio decoders	DTS Neo:X, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD, DTS-HD Master Audio
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Cables included	AC

Weight and Dimensions

Depth	379 mm
Width	434 mm
Height	167 mm
Weight	10700 g
