Denon AVR-X7200W User Manual

Inputs
Perform settings related to input source playback.
You do not have to change the settings to use the unit. Make settings when needed.

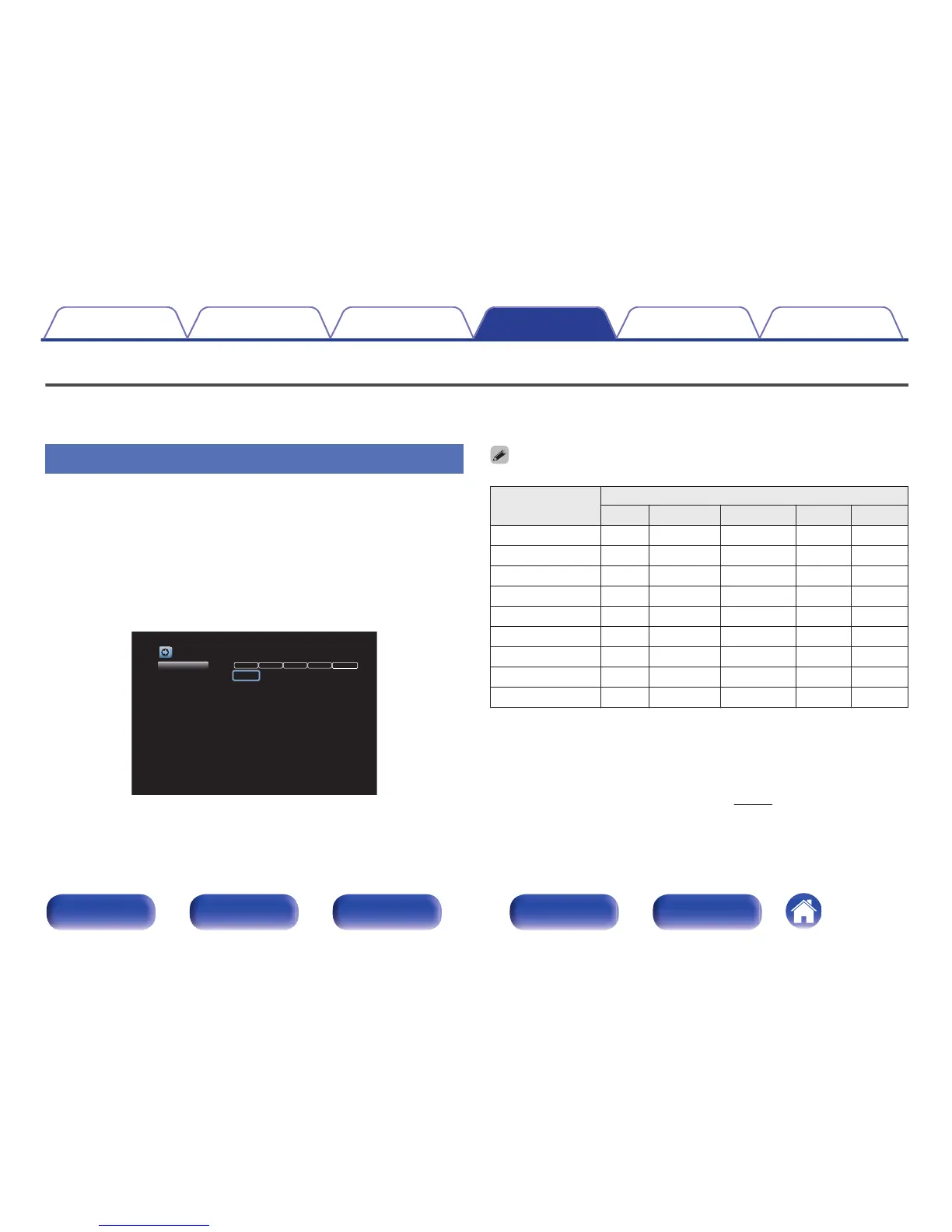

Input Assign
By making connections as indicated by the input sources printed on the
audio/video input connectors of this unit, you can just press one of the
input source select buttons to easily play back audio or video from a
connected device.
Please change the assignment of the HDMI input connector, digital audio
input connector, analog audio input connector, component video input
connector and video input connector when connecting an input source
that differs from that printed to the audio/video input connectors of this
unit.
.
DIGITAL ANALOGHDMI COMP VIDEO
Inputs/Input Assign
Set Defaults
CBL/SAT
DVD
Blu-ray
Game
Media Player
TV Audio
AUX1
AUX2
1
2
3
4
5
-
Front
6
1
2
3
4
6
-
Front
-
1
2
3
-
-
-
-
-
1
2
3
4
-
-
Front
-
COAX1
COAX2
-
-
-
OPT1
-
-
Changes HDMI input assignments
CD - 5 - -
OPT2
By default, each item is set as follows.
Input source
Input connector
HDMI DIGITAL ANALOG COMP VIDEO
CBL/SAT 1 COAX1 1 1 1
DVD 2 COAX2 2 2 2
Blu-ray 3 – 3 3 3
Game 4 – 4 – 4
Media Player 5 – 6 – –
TV Audio – OPT1 – – –
AUX1 Front – Front – Front
AUX2 6 – – – –
CD – OPT2 5 – –
n
TV set top box/satellite users please note
When using the digital audio output on a TV/satellite box:
To play the video signal assigned to “HDMI” combined with the audio
signal assigned at “Input Assign” - “DIGITAL”, you will also need to
select “Digital” in the “Input Mode”. (v p. 222)
Contents
Connections Playback Settings Tips Appendix
219
Front panel Display Rear panel Remote Index

Denon AVR-X7200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	210 W
HDMI in	8
Audio (L/R) in	7
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	427 mm
Width	434 mm
Height	196 mm
Weight	17800 g
