Denon AVR-X7200W User Manual

.
1 CBL/SAT
PHONO
2 DVD
2 DVD 1 CBL/SAT
3 Blu-ray 6 AU X2
7 CD
2 CD 1
TV
AUDIO
6 MEDIA PLAYER
4 GAME
5 MEDIA PLAYER
2 DVD
12
3 Blu-ray
5 CD
4 GAME
1 CBL/SAT 1 CBL/SAT
2 DVD
2 DVD 3
Blu-ray 4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL TRIGGER OUT
PRE OUT
(ASSIGNABLE) (ASSIGNABLE)
VIDEO COMPONENT VIDEO VIDEO COMPONENT VIDEO
ARC
MONITOR1
MONITOR/ZONE3 ZONE2
MONITOR/ZONE3
ZONE2
ZONE23 Blu-ray
MONITOR2
COAXIAL OPTICAL
STRAIGHT CABLE
IR
DC12V 150mA MAX.
ZONE2 ZONE3
FRONT
FRONT
SURROUND SURROUND CENTER SUBWOOFER
SURROUND BACK FRONT WIDE CENTER
HEIGHT1
SURROUND BACK HEIGHT2
1
SUBWOOFER
SIGNAL
GND
AUDIO
(ASSIGNABLE)
(ASSIGNABLE)
HDMI HDMI
AUDIO
DIGITAL AUDIO
(ASSIGNABLE)
2
ASSIGNABLE ASSIGNABLE ASSIGNABLE
SPEAKERS
IMPEDANCE : 4㹼16
Ȑ
CLASS 2 WIRING
Denon Link HD
ANTENNA
AM
FM
1 CBL/SAT
Bluetooth
/
Wi-Fi
ANTENNA
Bluetooth
/
Wi-Fi
ANTENNA
AC IN
NETWORK
Y
P
B/
C
B
PR/
C
R
5V/1A
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1
FRONT
Q
0
Q
5
Q
6
Q
7
Q
3
Q
4
Q
2
Q
1
Q
8
J

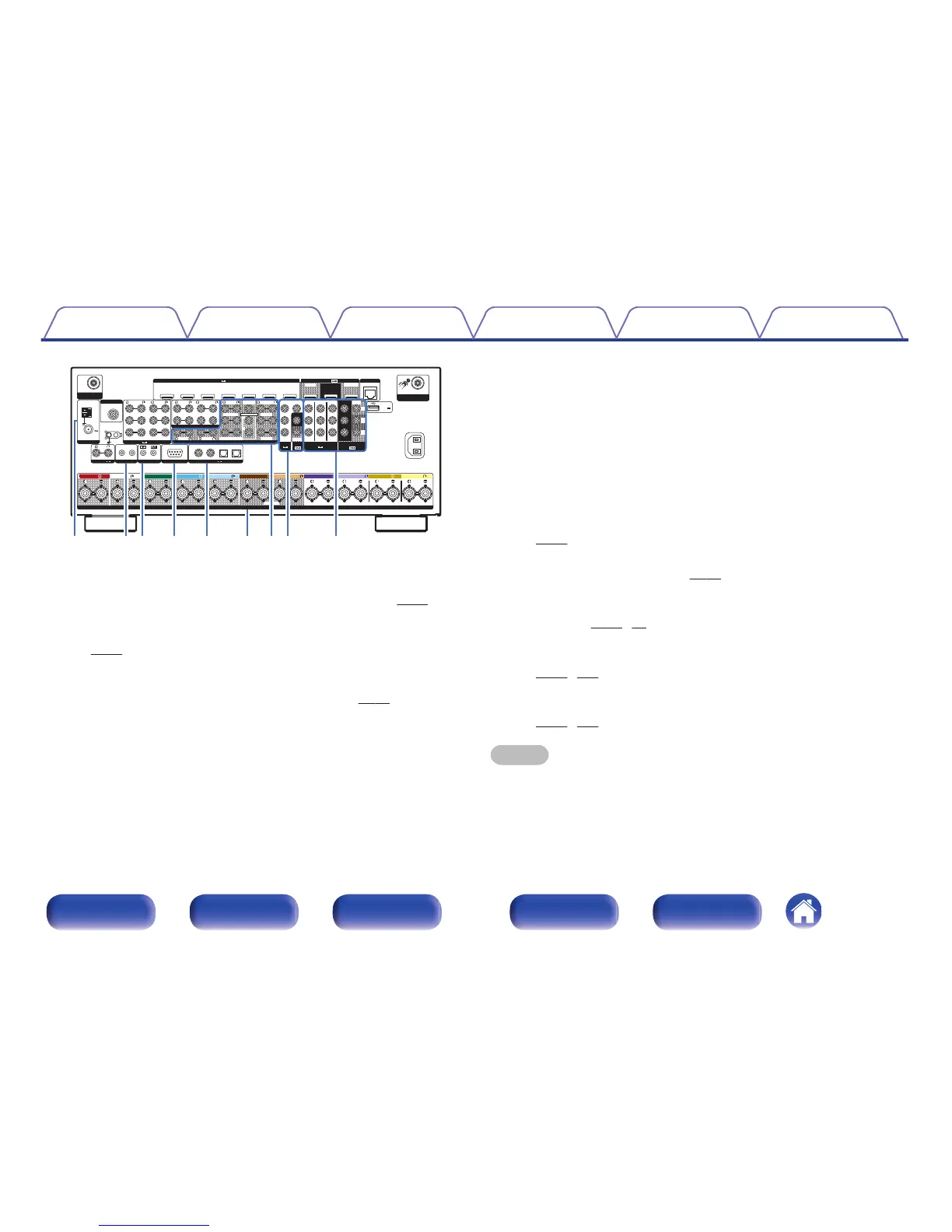

FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 79)
K
TRIGGER OUT jacks
Used to connect devices equipped with the trigger function.
(v p. 84)
L
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v
p. 83)
M
RS-232C connector
Used to connect home automation controller devices fitted with
RS-232C connectors. Consult the owner’s manual of the home
automation controller for more information about serial control of this
unit.
Perform the operation below beforehand.
A
Turn on the power of this unit.
B
Turn off the power of this unit from the external controller.
C
Check that the unit is in the standby mode.
N
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
(v p. 67)
O
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 43)
P
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or an external power
amplifier. (v p. 44, 64)
Q
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
(v
p. 68, 177)
R
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
(v p. 68, 177)
NOTE
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
Contents Connections Playback Settings Tips Appendix
27
Front panel Display Rear panel Remote Index

Denon AVR-X7200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	210 W
HDMI in	8
Audio (L/R) in	7
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	427 mm
Width	434 mm
Height	196 mm
Weight	17800 g
