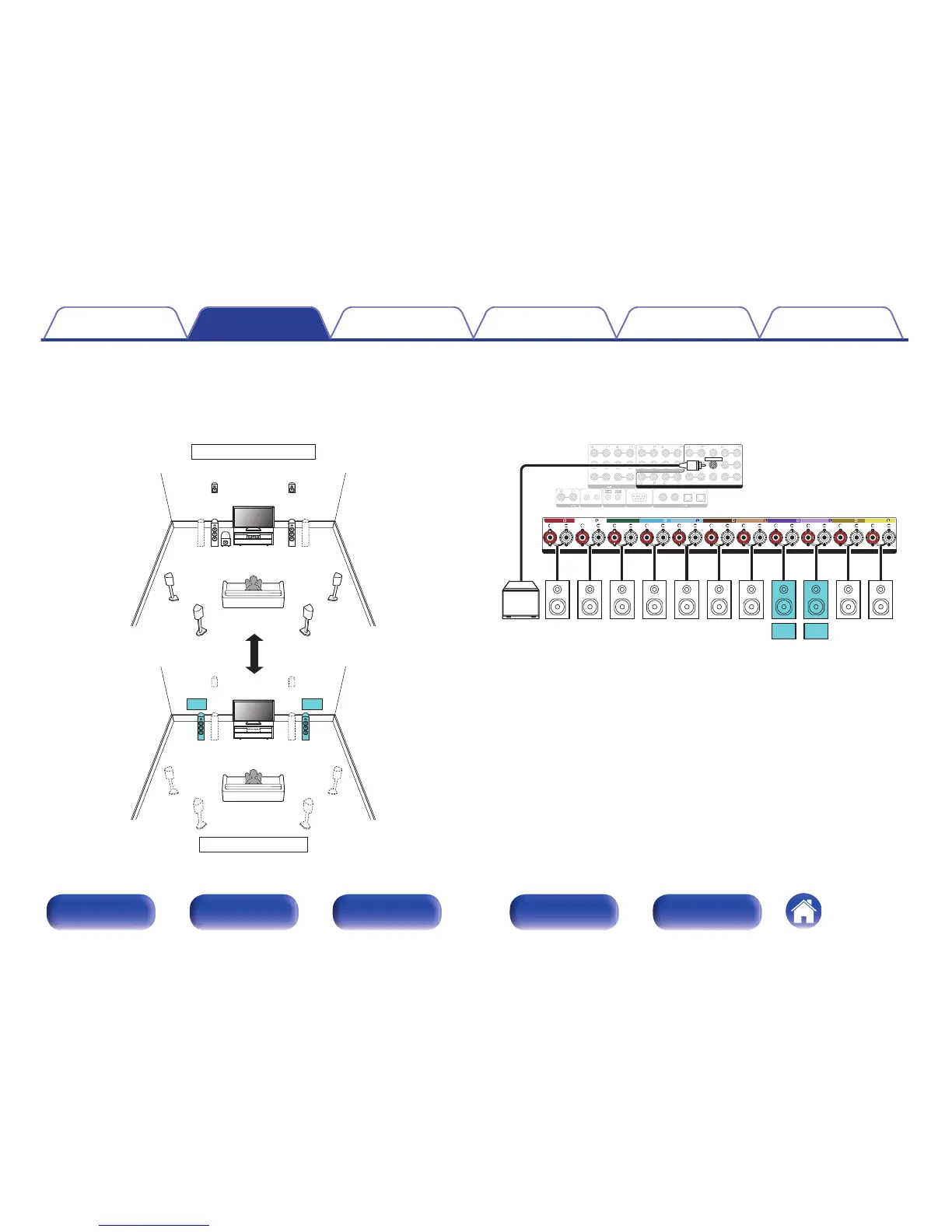

Exclusive 9.1-channel playback + 2-channel playback speakers
You can connect speakers used exclusively for 2-channel playback, which are used for the direct and stereo modes, and speakers used exclusively
for 9.1 multi-channel playback. The speakers used exclusively for multi-channel playback and the speakers used exclusively for 2-channel playback
are automatically switched for playback in accordance with the sound mode.
.
FHL
FLFL’
SW
C
SL
SBL
FHR
FR FR’
SR
SBR
FHL
FL
C
SL
SBL
FHR
FR
SR
SBR
FL’ FR’
Multi-channel playback
Switching
2-channel playback
.
1 CBL/SAT
PHONO
2 DVD 1 CBL/SAT
2 CD 1
TV
AUDIO
6 MEDIA PLAYER
2 DVD
12
3 Blu-ray
5 CD
4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL TRIGGER OUT
PRE OUT
COAXIAL OPTICAL
STRAIGHT CABLE
IR
DC12V 150mA MAX.
ZONE2 ZONE3
FRONT
FRONT
SURROUND SURROUND CENTER SUBWOOFER
SURROUND BACK FRONT WIDE CENTER
HEIGHT1
SURROUND BACK HEIGHT2
1
SUBWOOFER
AUDIO
(ASSIGNABLE)
AUDIO
DIGITAL AUDIO
(ASSIGNABLE)
2
ASSIGNABLE ASSIGNABLE ASSIGNABLE
SPEAKERS
IMPEDANCE : 4㹼16
Ȑ
CLASS 2 WIRING
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1
FRONT
SBR SBL FHR FHLSW
FR FL C SR SL
FR’ FL’
