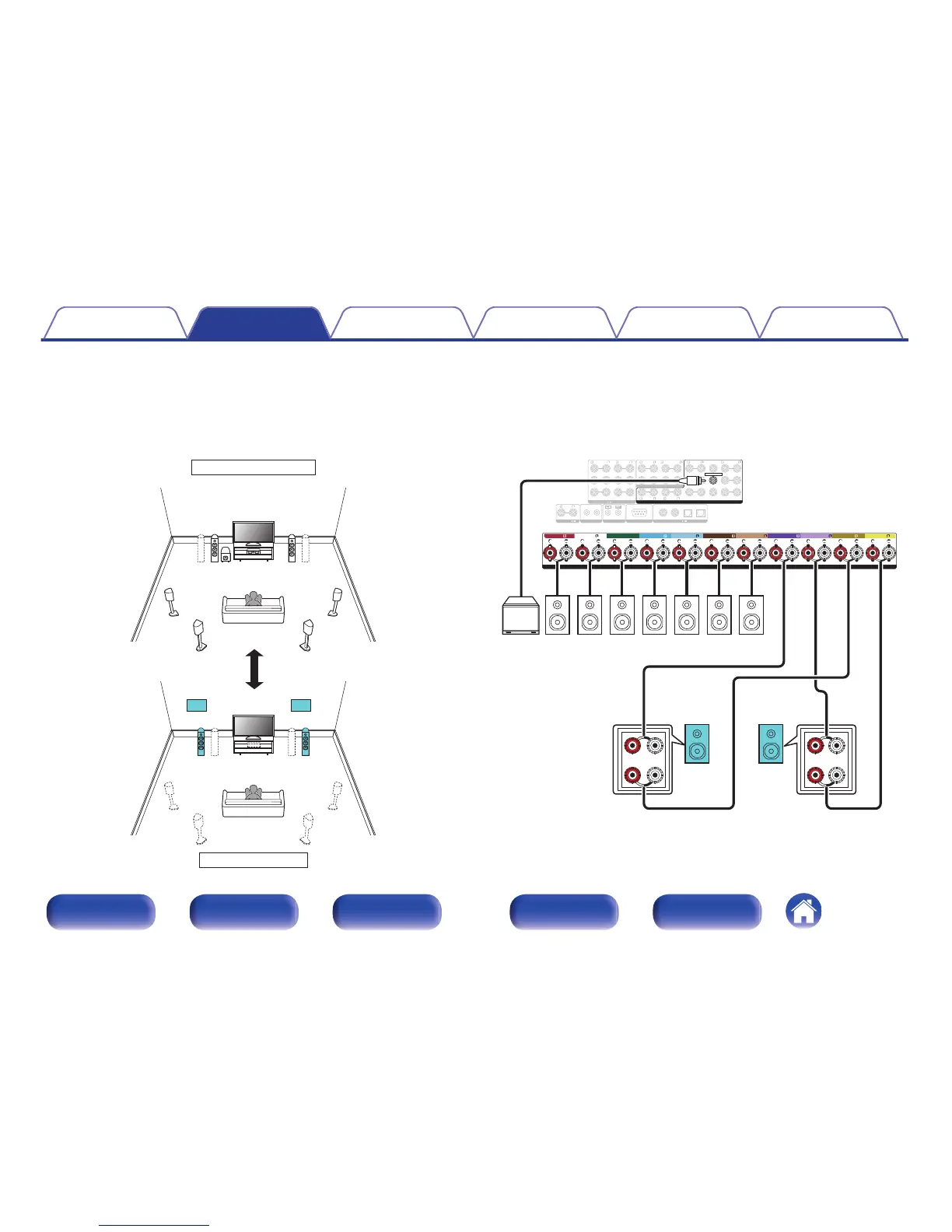

Exclusive 7.1-channel playback + 2-channel playback (bi-amp connection) speakers
You can connect speakers used exclusively for 2-channel playback, which are used for the direct and stereo modes, and speakers used exclusively
for 7.1 multi-channel playback. You can use the bi-amp connection for the speakers exclusively used for 2-channel playback. The speakers used
exclusively for multi-channel playback and the speakers used exclusively for 2-channel playback are automatically switched for playback in
accordance with the sound mode.
.
FLFL’
SW
C
SL
SBL
FR FR’
SR
SBR
FL C
SL
SBL
FR
SR
SBR
FL’ FL’
Multi-channel playback
Switching
(Bi-Amp)
(Bi-Amp)
2-channel playback
FL’ FR’
.
1 CBL/SAT
PHONO
2
DVD
1
CBL/SAT
2
CD
1
TV
AUDIO
6 MEDIA PLAYER
2 DVD
12
3 Blu-ray
5 CD
4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL
TRIGGER OUT
PRE OUT
COAXIAL OPTICAL
STRAIGHT CABLE
IR
DC12V 150mA MAX.
ZONE2 ZONE3
FRONT
FRONT
SURROUND
SURROUND
CENTER
SUBWOOFER
SURROUND BACK
FRONT WIDE
CENTER
HEIGHT1
SURROUND BACK HEIGHT2
1
SUBWOOFER
AUDIO
(ASSIGNABLE)
AUDIO
DIGITAL AUDIO
(ASSIGNABLE)
2
ASSIGNABLE ASSIGNABLE ASSIGNABLE
SPEAKERS
IMPEDANCE : 416
Ȑ
CLASS 2 WIRING
CENTER SURROUND
SURROUND BACK
SURROUNDFRONT
SURROUND BACK
FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2
HEIGHT1 HEIGHT1
FRONT
wqwq
(R) (L)
SBR SBLSW
FR FL C SR SL
FL’FR’
