13

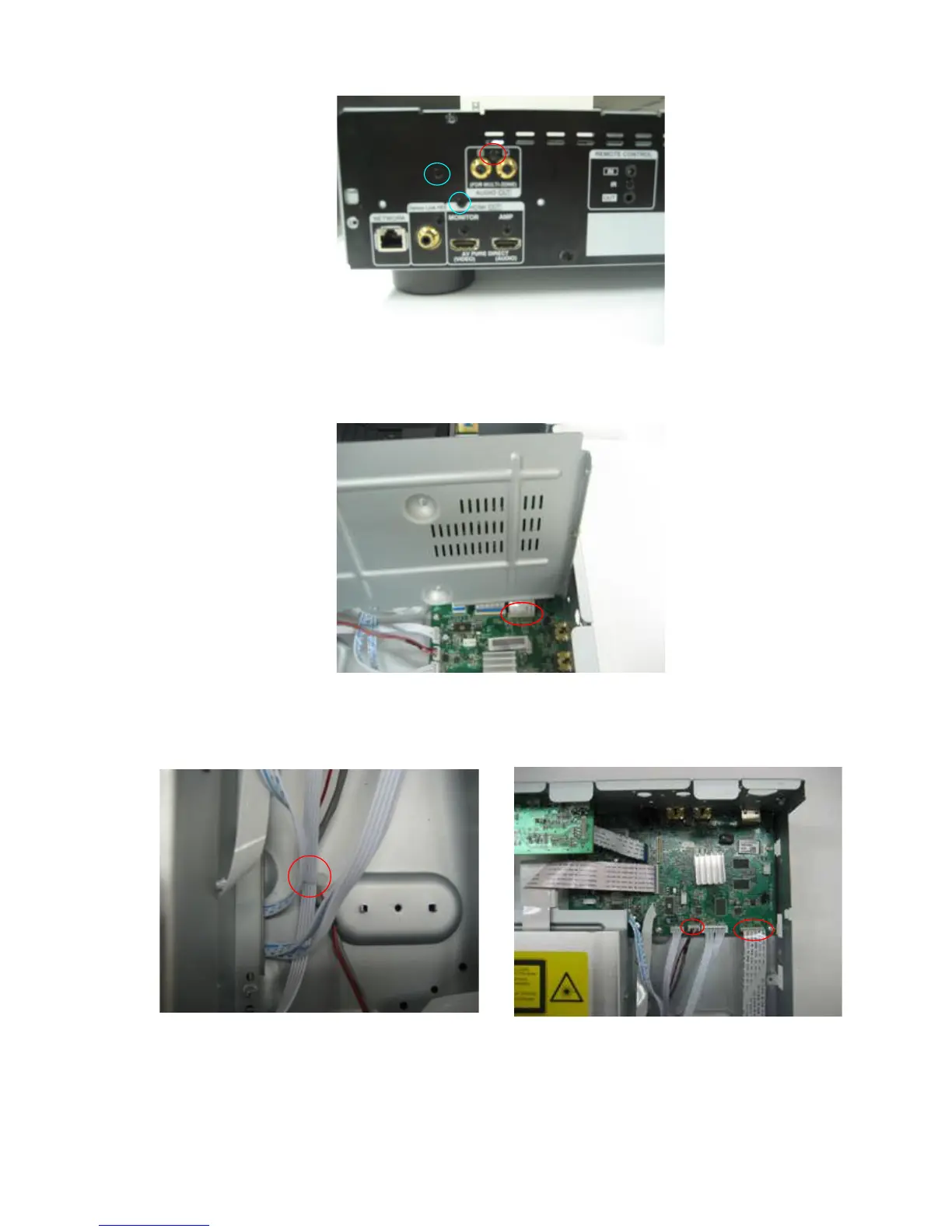

(5) Remove the screw. (x3)
(6) Remove the PCB Bracket. As shown in the gure raised to PCB Bracket, disconnect the FFC. Then, remove in one
piece, the board and the bracket.
(7) Disconnect the connector wire and FFC.
Cut the wire clamp.
Remove 4p-PH
【
XP3
】
and 18P-FFC
【
XP4
】
