Denon DCD-1500AE - MSM51 V18165 F IC Pin Descriptions; Pin Descriptions

37
DCD-1500AE
Serial Port Pins

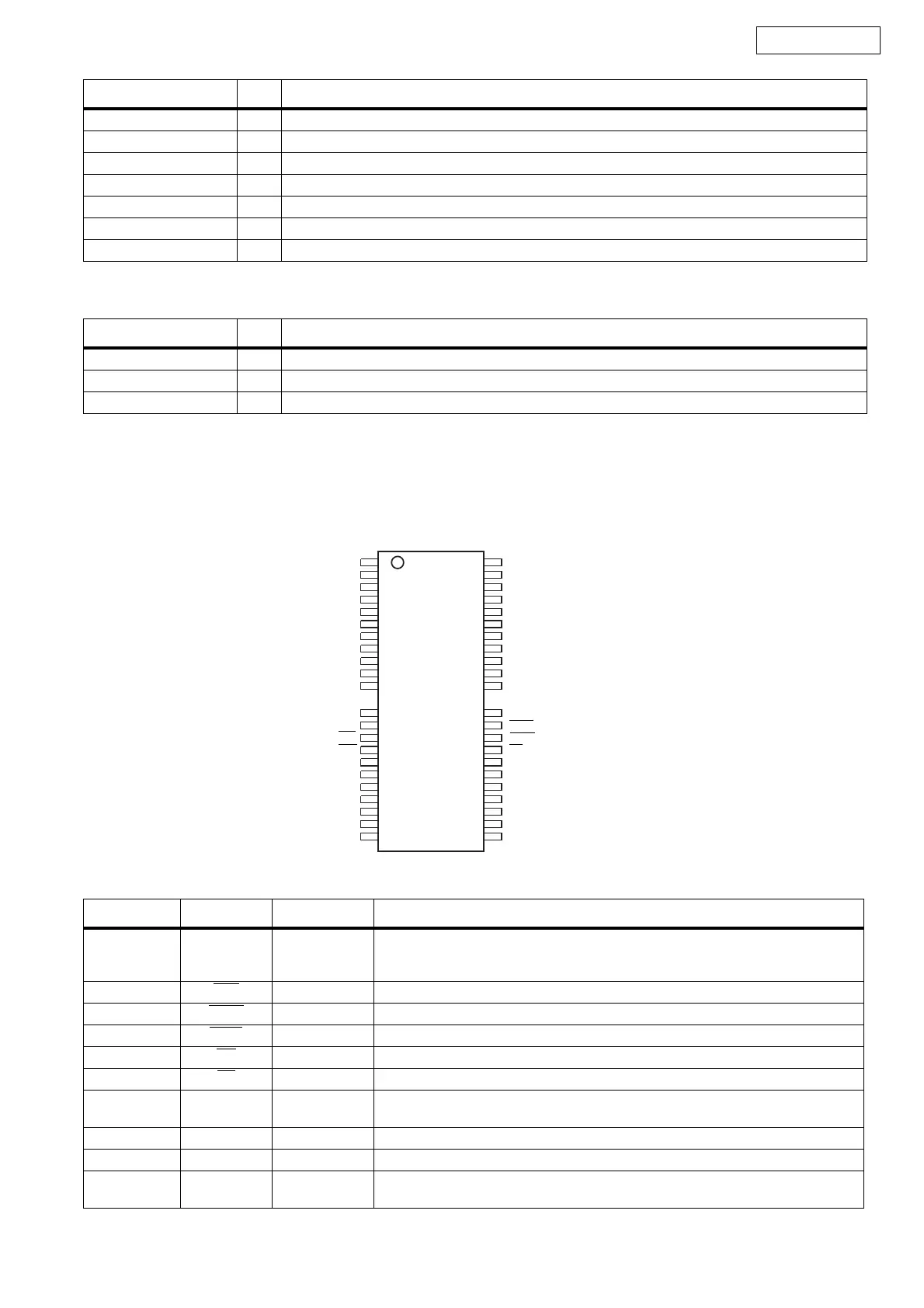

MSM51V18165F-50TSK-7 (SM: IC503)
Pin Descriptions
MB - MIRR bottom hold terminal
MEV - RFDC bottom envelope terminal
MLPF - Mirror LPF terminal
TPH - PI top hold terminal
VC - Reference voltage output
V125 - Reference voltage output
RX - Reference resistor input
Name I/O Function
SDEN I Serial data enable
SDATA I/O Serial data
SCLK I Serial clock
PIN NO. PIN NAME TYPE DESCRIPTION
18, 21, 24 ~29 A0~A9 Input
Address Input
Row Address : A0~A9
Column Address : A0~A9
15 RAS
Input Row Address Strobe
31 CASH
Input Column Address Strobe/Upper Byte Control
32 CASL
Input Column Address Strobe/Lower Byte Control
14 WE
Input Write Enable
30 OE
Input Output Enable
2~5, 7~10,
35~38, 40~43
I/O0~I/O15 Input/Output Data Input/Output
1, 6, 22 Vcc Supply Power, (5V or 3.3V)
23, 39, 44 Vss Ground Ground
11~13, 16, 17,
33, 34
NC - No Connect
Name I/O Function
10
1Vcc
I/O0
I/O1
I/O2
I/O3
Vcc
I/O4
I/O5
I/O6
I/O7
NC
NC
NC
WE
RAS
NC
NC
A0
A1
A2
A3
Vcc
Vss
I/O15
I/O14
I/O13
I/O12
Vss
I/O11
I/O10
I/O9
I/O8
NC
NC
CASL
CASH
OE
A9
A8
A7
A6
A5
A4
Vss
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
