DCD-1500AE

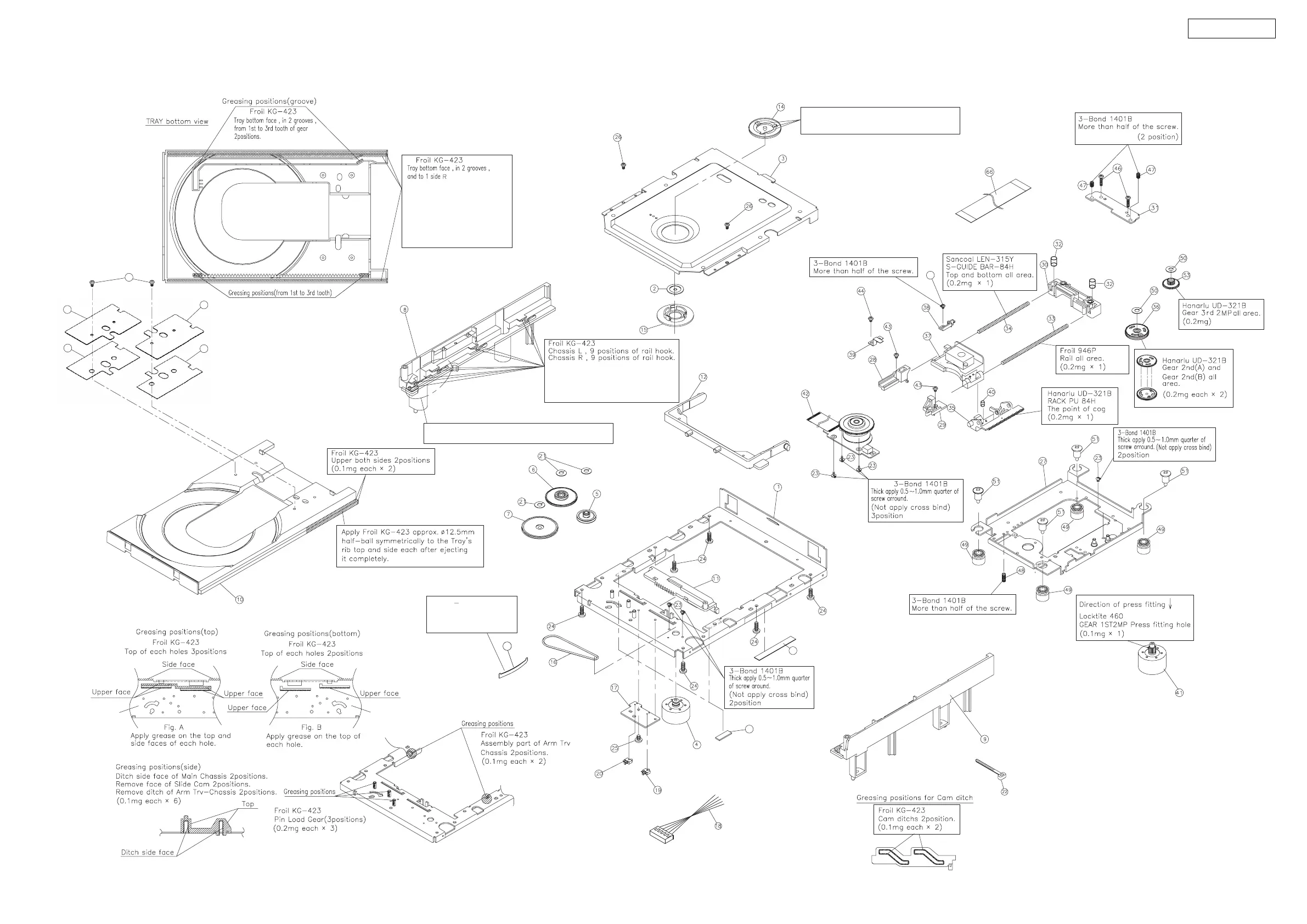

POINTS OF GREASING
59
57
58
57
55
58
70
56
54
Main
Chassis
Main Chassis
*As for greasing to the R rail
groove and groove's side edge,
apply grease to the outer face
"intentionally".
(Not only running a brush into
the groove, use it with pressing
to the outer face consciously.)
After applying , check especially for the front 3 ribs outer side
in order not to be insufficient greasing.
When greasing each rib, apply to
the rib's left, right, and top faces
properly with running a brush on both sides
of the rib.
With Cemedine 575, glue 3 joint parts of Clamper-L
and H hooks. (0.05mg each x 3)
Froil KG 423
After attaching plate spring,
apply to the TRAY side of
the plate spring.
