5
ENGLISH
3

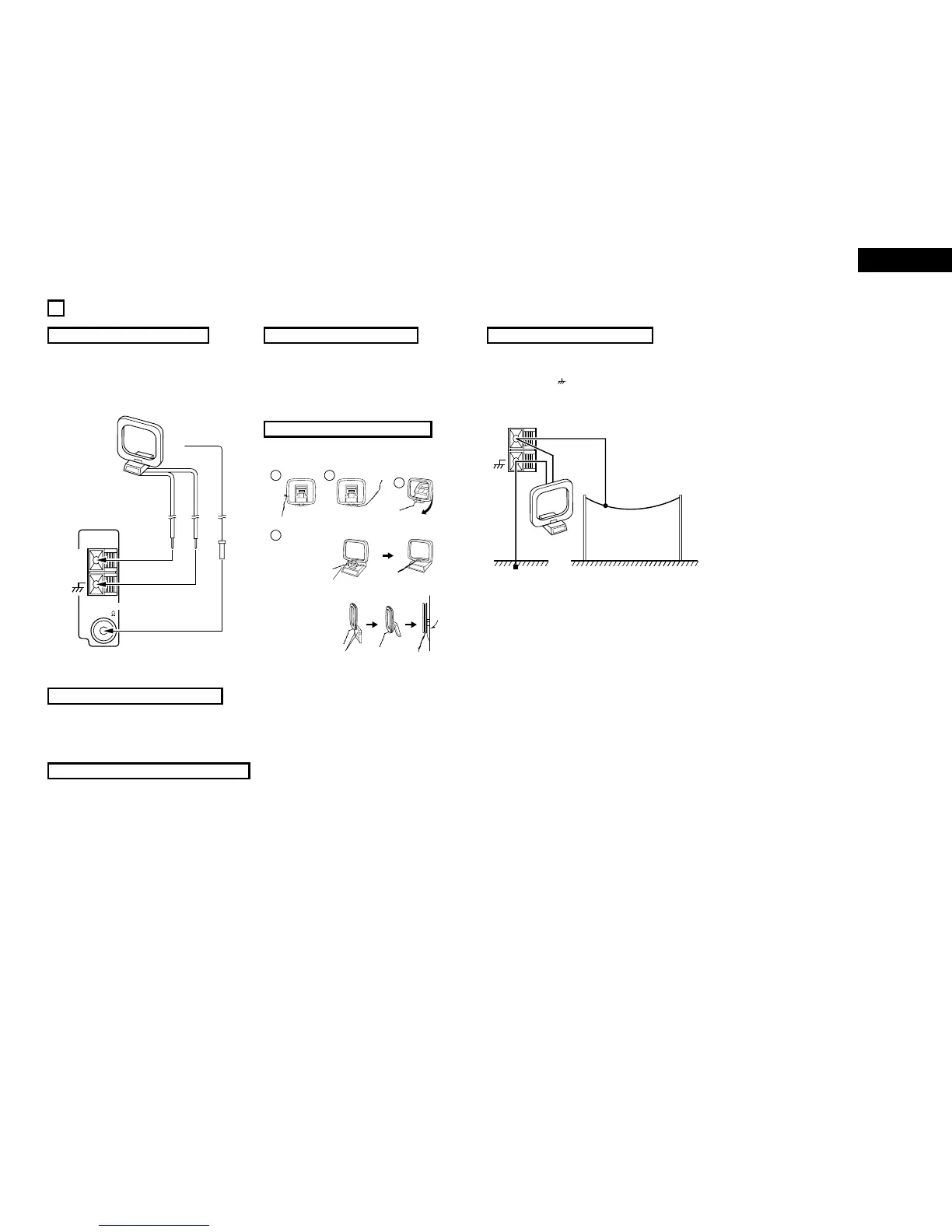

CONNECTING THE ANTENNAS
Installing the FM indoor antenna
Tune in FM station (see page 13), set the antenna so that
distortion and noise is minimal, then secure the tip of the
antenna in this position using tape or a pin.
Installing the AM loop antenna
Tune in an AM station (see page 13) and set the antenna
as far from the system as possible to keep distortion and
noise is minimal. In some cases, it is best to invert the
polarities. AM broadcasts cannot be received well if the
loop antenna is not connected or if it is set close to metal
objects.
Connecting an FM outdoor antenna
If good reception cannot be achieved with the included
FM antenna, use an FM outdoor antenna. Connect an IEC-
type connector to the coaxial cable and connect the
antenna to the FM COAX (75 Ω/ohms) terminal.
Selecting a place for the FM outdoor antenna
• Set the antenna so that it points towards the broadcast
station’s transmitting antenna. Behind buildings or
mountains, set the antenna in the position at which
reception is best, and also try changing the direction of
the antenna.
• Do not install the antenna under power lines.
Doing so is extremely dangerous, as the power line
could touch the antenna.
• Install the antenna away from roads or train tracks to
avoid noise from cars or trains.
• Do not install the antenna too high, as it may be hit by
lightning.
FM antenna
AM loop antenna
Installing an AM outdoor antenna
Connect the signal wire from the AM outdoor antenna to
the antenna terminal. Be sure to connect the signal
ground wire to the terminal. Also be sure to connect
the included AM loop antenna.
To Next Page
