Denon RCD-CX1 Service Manual
5
of 1
of 1 rating
116 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
12
RCD-CX1
(2)

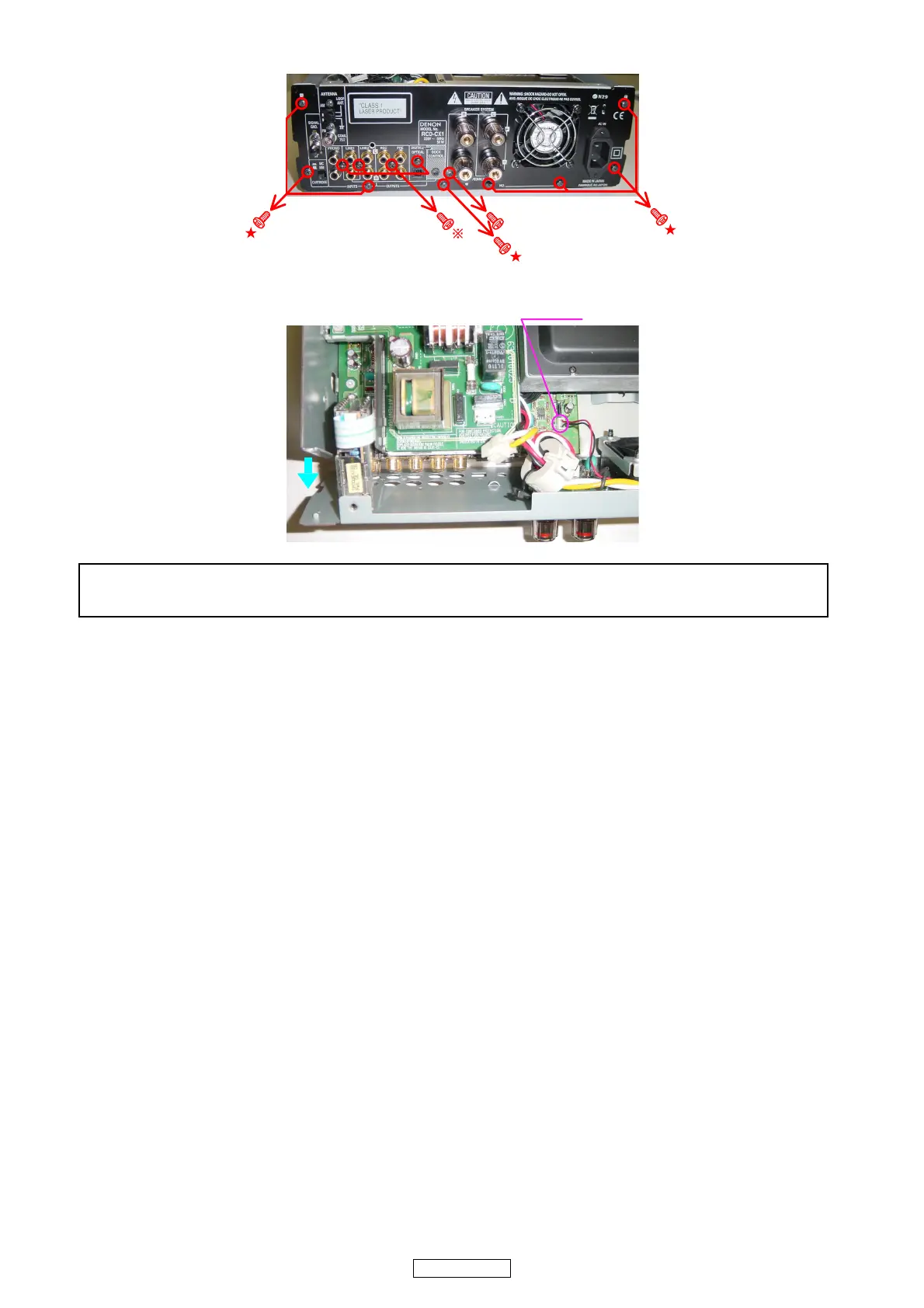

Remove the screws.
（ねじをはずす。
）
(3)
Disconnect the connector wire.
（コネクタワイヤーをはずす。
）
Please refer t
o
"EXPLODED VIEW"
for the disassembly method of each P.W.B included in BACK PANEL ASSY.
BACKPANELASSY
の各基板のはずしかたは
"EXPLODEDVIEW"
を参照してください。
B
ً
CW021
T
op
view
11
13
