RCD-CX1
4. FRONT PANEL SUB ASSY

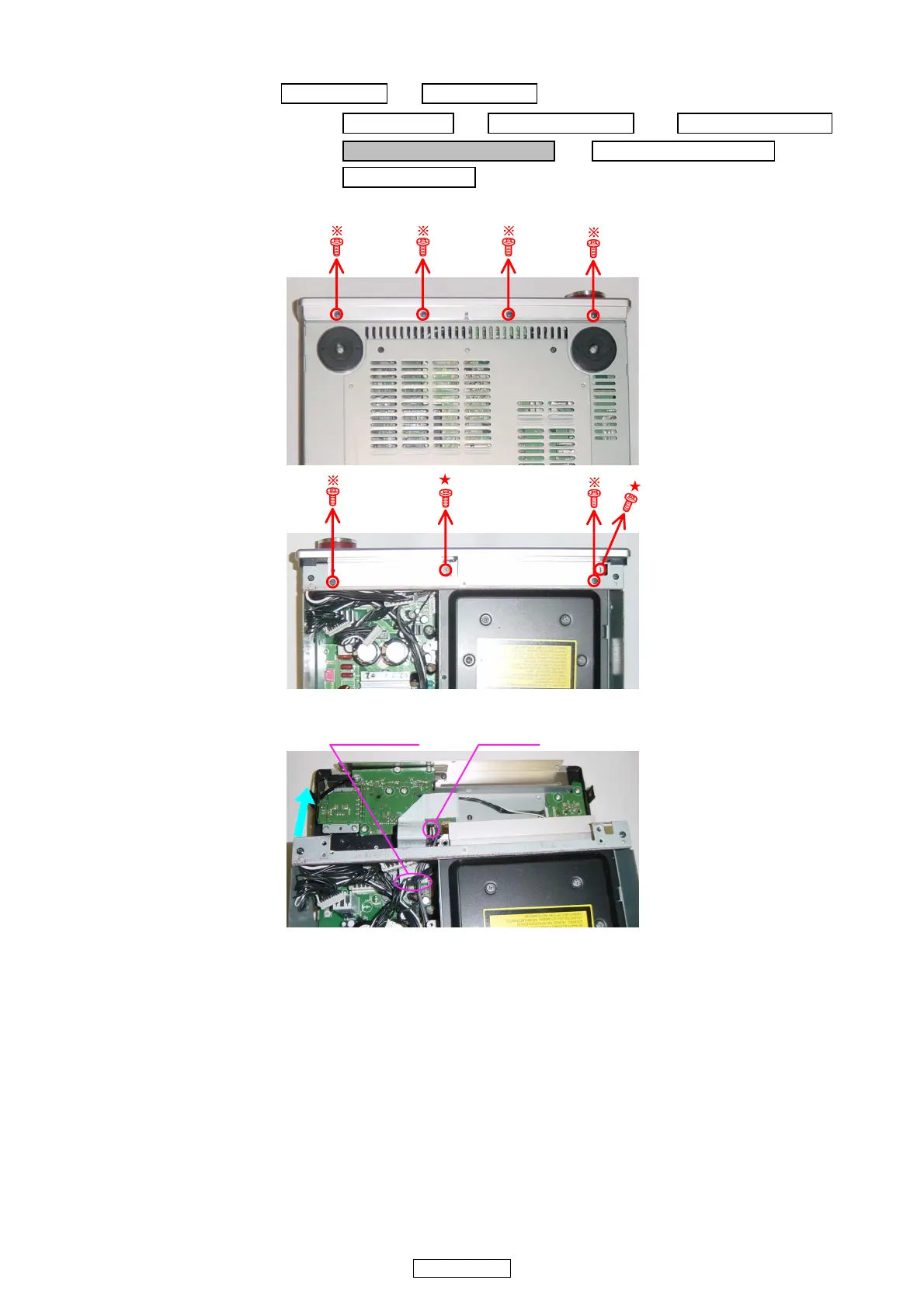

(1) Remove the screws. ( ねじをはずす。）
(2) Disconnect the connector wire and FFC cable.（コネクタワイヤーと FFC ケーブルをはずす。）
Proceeding (手順) : TOP PANEL → SIDE PANEL
→ TOP ANGLE → SW POWER UNIT → SHIELD BRACKET
→ FRONT PANEL SUB ASSY → TOP PANEL BRACKET
→ FRONT ANGLE
Bottom view
Top view
CY051
Top v iew
FFC CABLE
