23
PowerScout HD
Meter Configuration

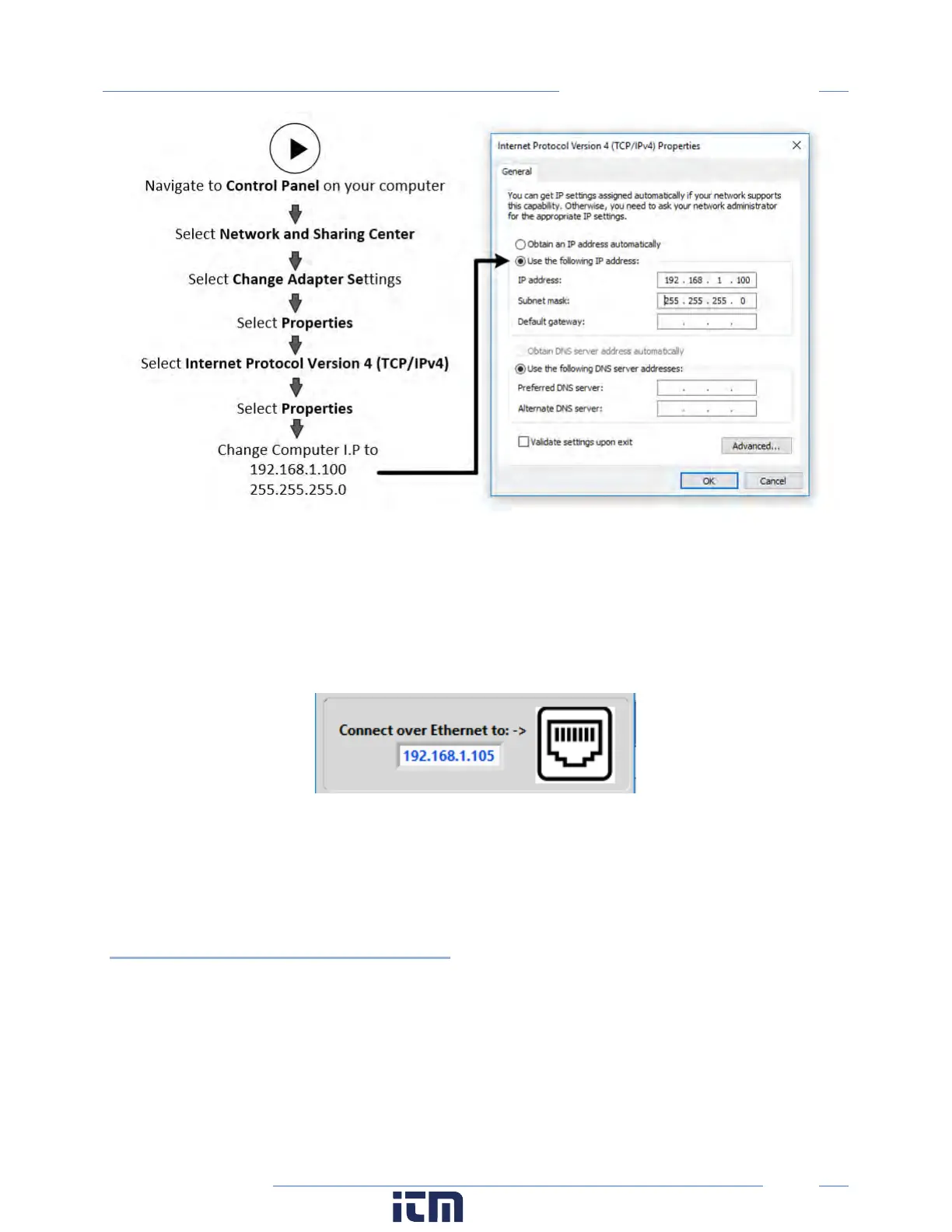

Once the PC and PSHD are set to communicate on the same IP subnet:
1) Launch the ViewPoint HD application and enter the IP address of the meter (shown as the
factory default).
2) Press the “Connect over Ethernet to:” button on the pop-up window.
3) The meter should now be communicating. ViewPoint HD is an intuitive application; read the
ViewPoint HD overview section (below) and/or watch the tutorial videos on the DENT website
for additional information on configuring the meter.
Meters without an LCD User Interface
A PSHD meter without an LCD user interface has no way to communicate to the user its IP address
and is only recommended if the meter has been previously set to a known static address. Setting the
IP address must be done ahead of time using another interface such as ViewPoint HD over USB or
via user-supplied applications over RS-485.
