DENT Instruments

PowerScout HD

Meter Installation

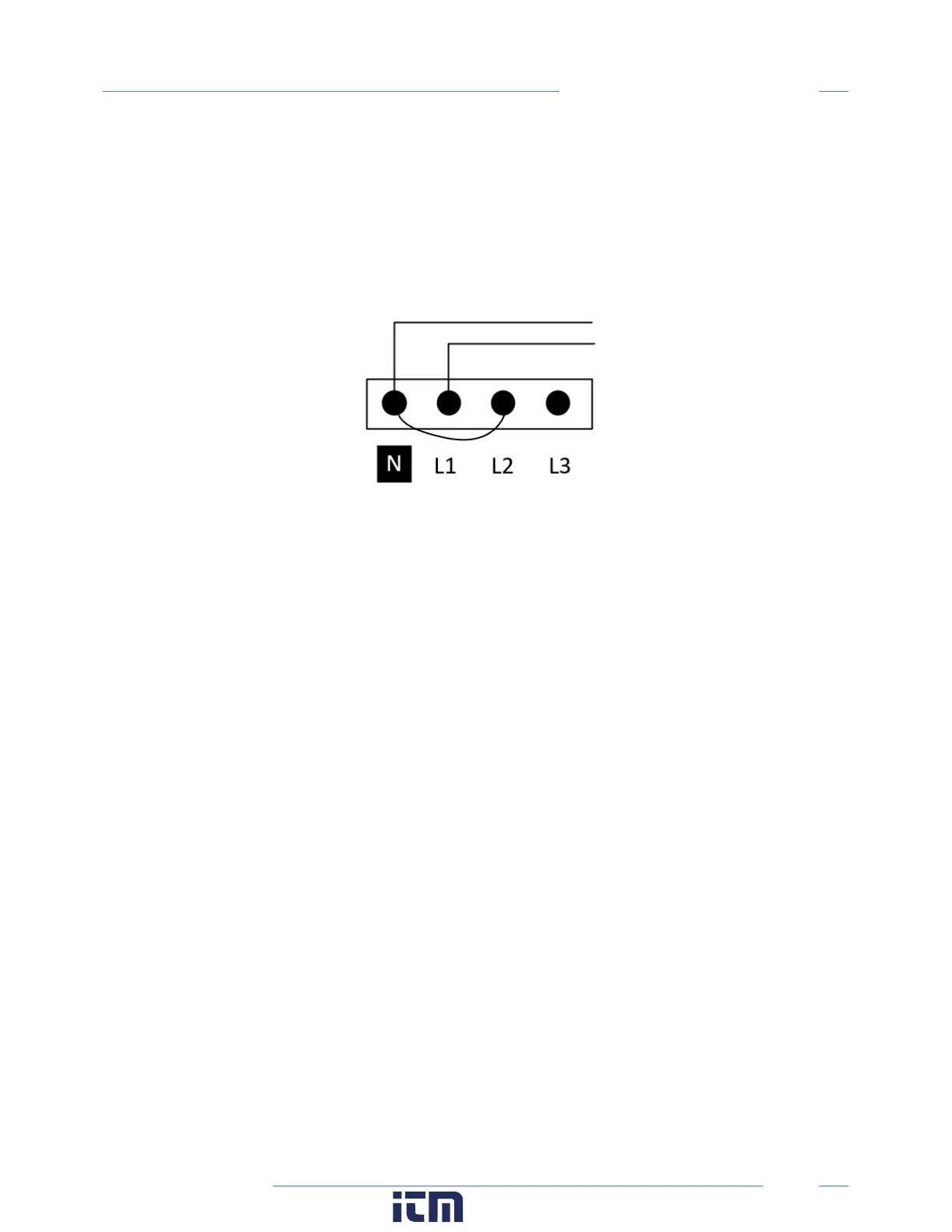

Wiring the PSHD Meter in a Single-Phase Application

The PSHD meter is internally powered through the voltage between L1 and L2. For Single Phase

installations where no L2 exists it is advised to jumper N to L2. This connection provides power to the

meter while maintaining Neutral as the metering voltage reference.
