PowerScout HD
METER INSTALLATION - DETAILS
This section is intended to support the physical installation of the meter and
provide guidance on connecting the current transformers (CTs) correctly within
the electrical load center and to the PSHD meter.
Meter Mounting Configurations

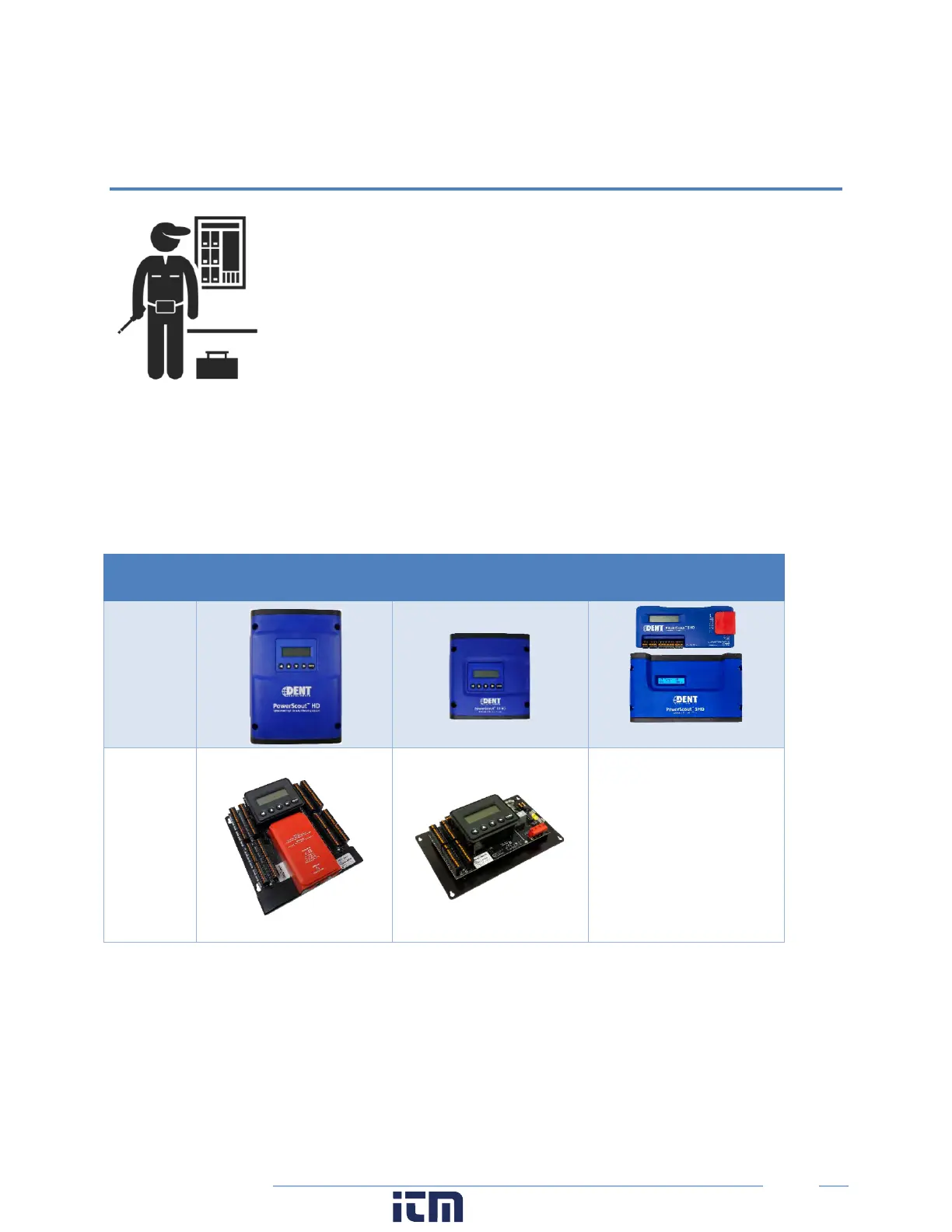

DENT PowerScout HD meters are sold in several form factors. Wall mounted enclosures are designed to
be connected to electrical conduit. Plate or rail versions are ready to be mounted inside a user-supplied
UL/NEMA certified enclosure. Care should be taken to not flex the circuit board during mounting.
Mounting
PS48 HD/PS24 HD PS12 HD PS3HD
Enclosure
OEM Plate
N/A
