PowerScout HD

Meter Installation

Wiring CTs to PS3HD Meters

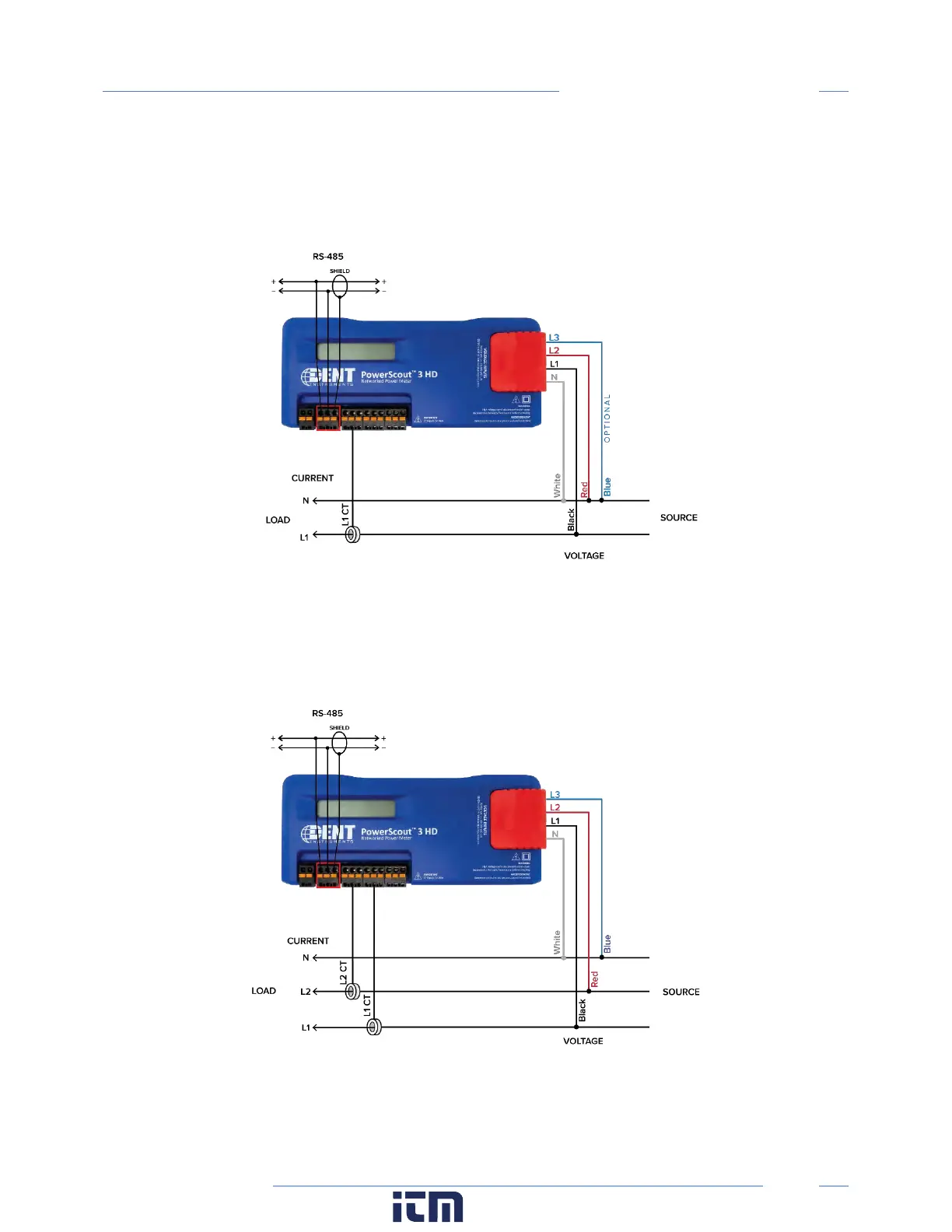

The images below represent CT and voltage connections between the PowerScout 3 HD and the most

common service types. For specific wiring questions outside the scope of this document, contact DENT

technical support.

Two Wire Single Phase

Three Wire Single Phase
