DentalEZ aXcs Series - Page 30

1-1/2"
13"
FLOOR
1"
3"
1-1/2"
7/16"
3"
4 x Ø 5/16"
through
Ø 1-1/4"
through
(Cabinet Mount Only)
MOUNTING BRACKET
EDGE OF CABINET
PN: 2677-046B

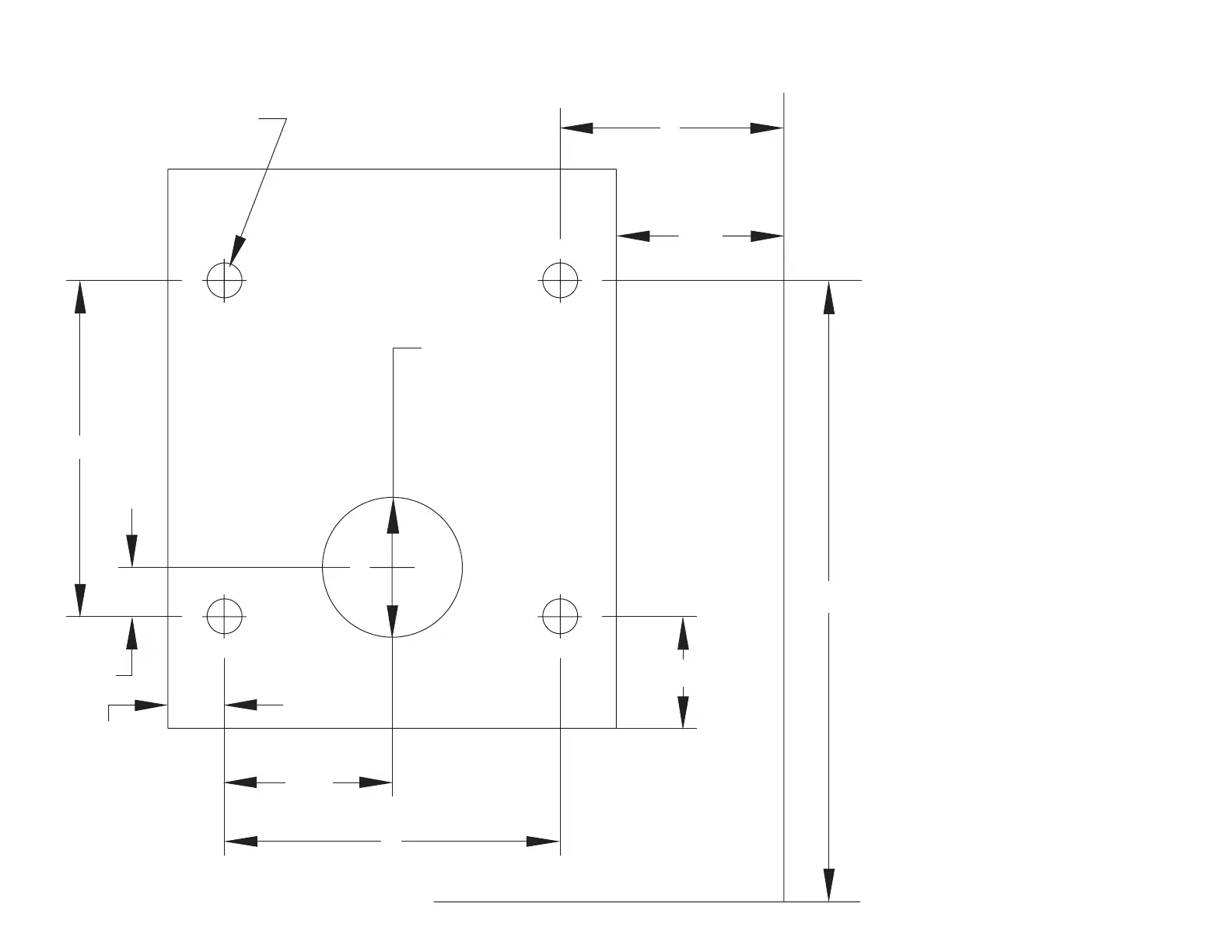

aXcs Wall/Cabinet Mount Template
®
1. Mark the top right
hole f or the T-nuts
13" abo ve the
floor . Also, for
cabinet mounted
units , mark the hole
2" fr om the front
edge of the cabinet.
2. Le vel the template
and mark the
r emaining three
holes f or the T-nuts.
3. Drill f our 5/16"
holes f or the T-nuts.
4. For cabinet
mounted units
onl y, mark and
drill a 1-1/4"
hole f or tubing.
March, 2001
1/2"
2"
