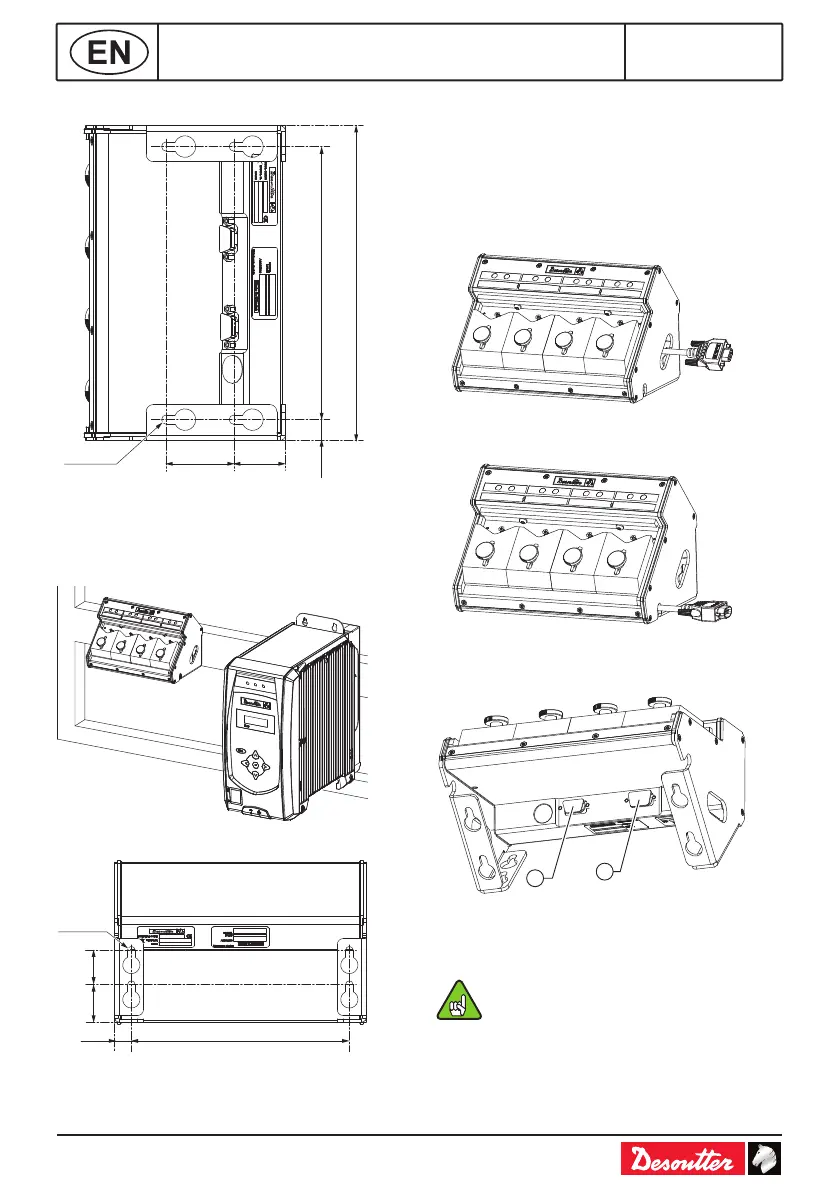

Desoutter CVI3 - Socket Tray Dimensions and Connections; Dimensioning (bottom view); EBUS CABLE ROUTING; WALL MOUNTING

11/2016 5 / 72
6159931430
Issue no: 05
Series: -
Dimensioning (bottom view)
3647
219 190
4 x Ø6.5
14.5
WALL MOUNTING
● Secure the socket tray on the wall by using 4
M6 screws.
Dimensioning (rear view)
33 30
190
4 x Ø6.5
14.5
EBUS CABLE ROUTING
It is possible to daisy-chain up to 15 accessories
e.g. socket trays, stacklights, I/O expanders on
the eBUS network.
● Before connecting, select how to pass the
cable:
on the side:
from below:
SOCKET TRAY CONNECTION
1
2
Legend
1 Termination plug SubD 9-pt
2 eBUS cable connection
Put the termination plug when:
- The socket tray is unique on the
eBUS network.
- The socket tray is the last accessory
on the eBUS network.
