Desoutter CVIR II Manual

Desoutter - ZAC de la Lorie - 38 rue Bobby Sands
BP 10273 - 44818 Saint-Herblain Cedex - France
Part no
Issue no
Language
Date
Page
6159932730
06
English
10/2015
6/36
6/36

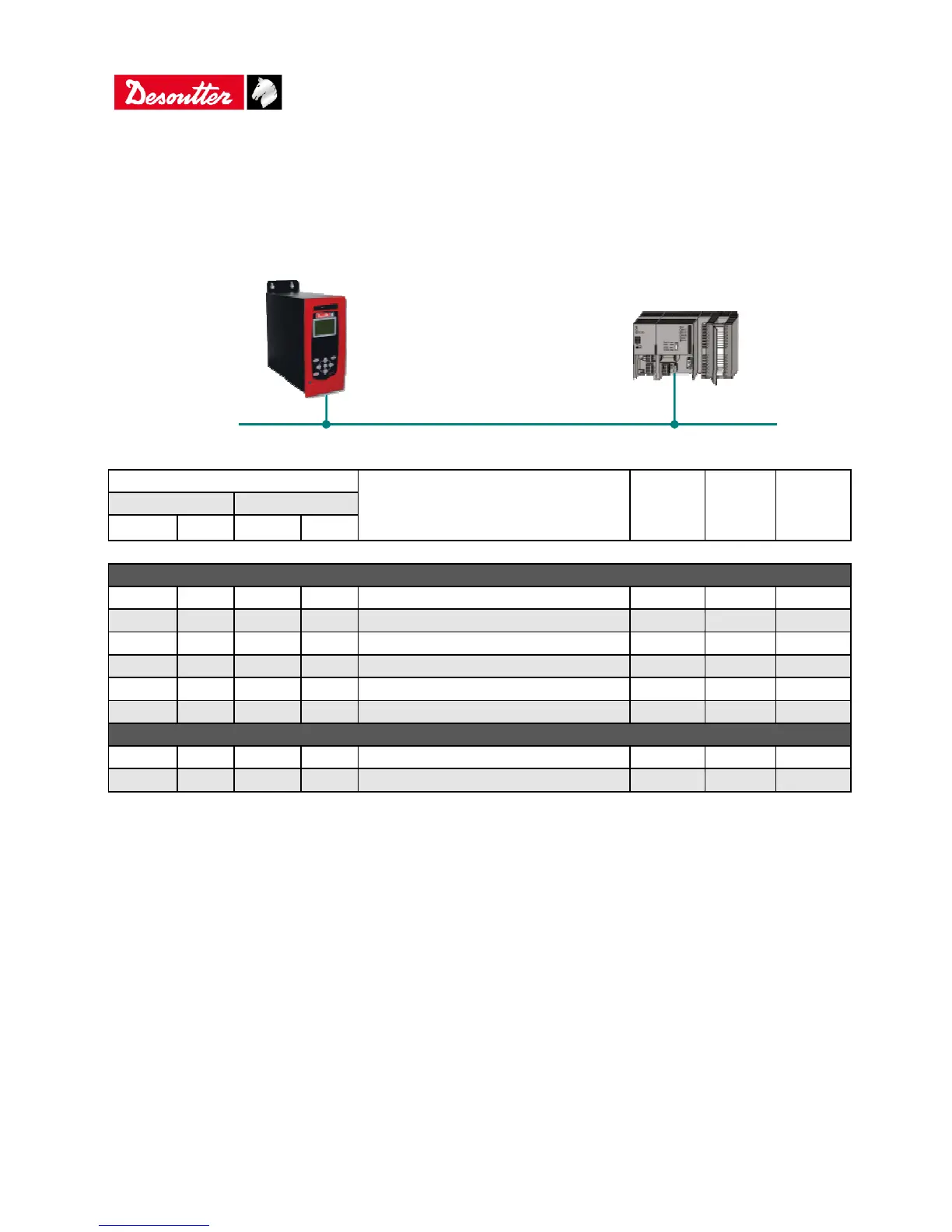

2. CVIC II & CVIL II Controllers
2.1. CVIx II - Memory Mapping Table
CVIxII Memory Address
Data
Description
Access
(R/W)
Size
(bytes)
Value
Type
In
Bytes
In
Words
Hexa. Deci. Hexa. Deci.
CVIxII - Data Outputs => PLC Inputs
0x0000 0000 0x0000 0000 CVIx II Outputs R 1 Bool
0x0001 0001 0x0000 0000 Selected Cycle (Cycle Echo) R 1 Integer
0x0002 0002 0x0001 0001
Final Torque Result R 4 Float
0x0006 0006 0x0003 0003
Torque Trend R 2 Integer
0x
0008
000
8
0x
000
4
000
4
Final Angle Result R 4 Float
0x000C 0012 0x0006 0006
Angle Trend R 2 Integer
CVIxII - Data Inputs <= PLC Outputs
0x0000 0000 0x0000 0000 CVIx II Inputs W 1 Bool
0x0001 0001 0x0000 0000 Cycle Number Selection W 1 Integer
CVI
xII
PLC
Fieldbus
