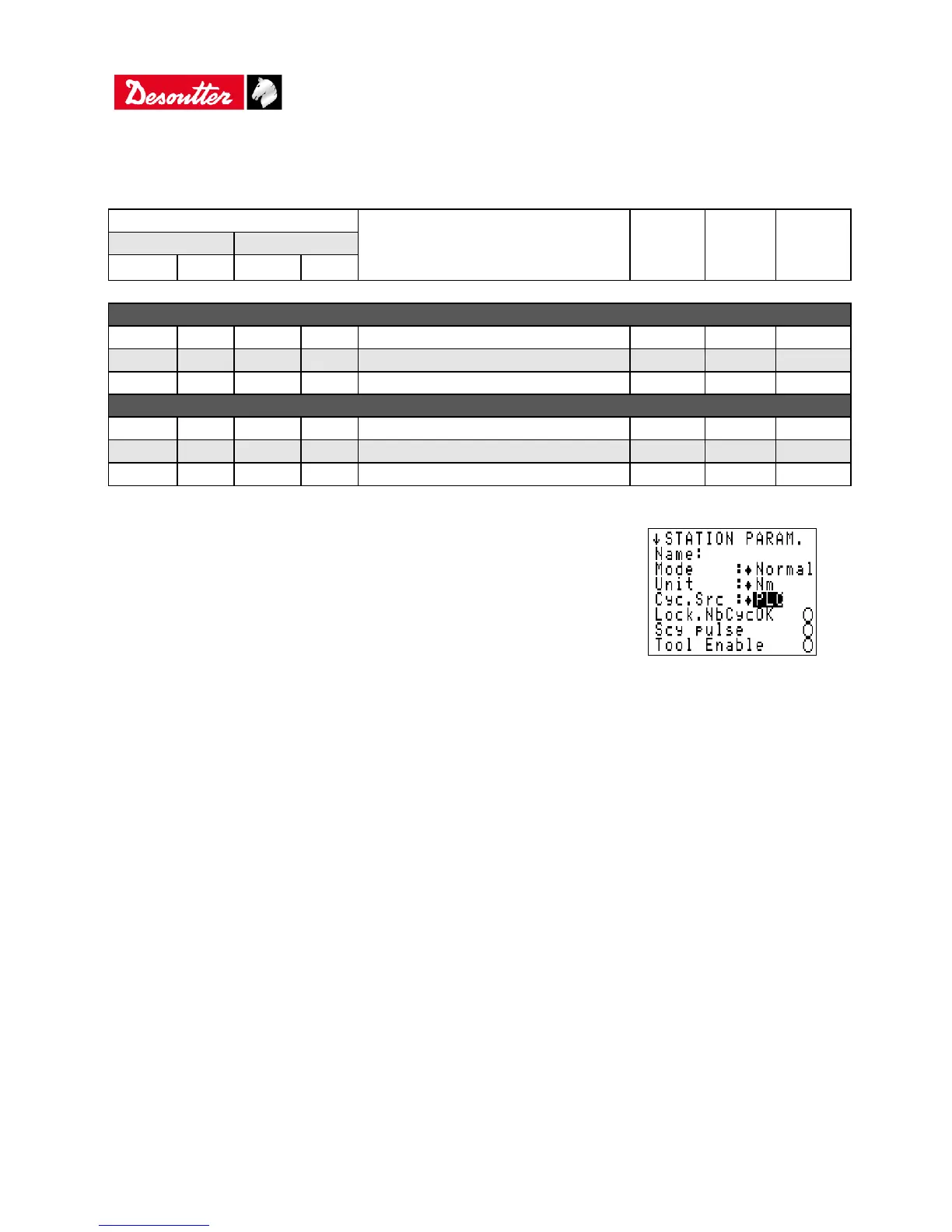

2.3. CVIx II - Cycle Selection
CVI
xII
Memory Address
Data
Description
Access
(R/W)
Size
(bytes)
Value
Type
In Bytes In Words
Hexa. Deci. Hexa. Deci.
CVIx II - Data Outputs => PLC Inputs
--- --- --- --- --- --- --- ---
0x0001 0001 0x0000 0000 Selected Cycle (Cycle Echo) R 1 Integer
--- --- --- --- --- --- --- ---
CVIx II - Data Inputs <= PLC Outputs
--- --- --- --- --- --- --- ---
0x0001 0001 0x0000 0000 Cycle Number Selection W 1 Integer
--- --- --- --- --- --- --- ---
2.3.1. Cycle number selection
The Cycle number selection is only taken into consideration by the CVIx II
if the “Source of cycle number” is set to “PLC” in the controller station parameters.
(0 = no cycle selection).
2.3.2. Selected Cycle (Cycle Echo)
This byte indicates the number of the selected cycle in the CVIx II controller (0 = no cycle selected).
