2 Installation
This booklet contains installation instruction and information on the thermostat only.
Separate installation instructions for the furnace or air handler and outdoor AC
condensing unit or heat pump are provided.
This thermostat is designed exclusively for the ClimateTalk
TM
communicating
system.
2.1 Wiring Requirements

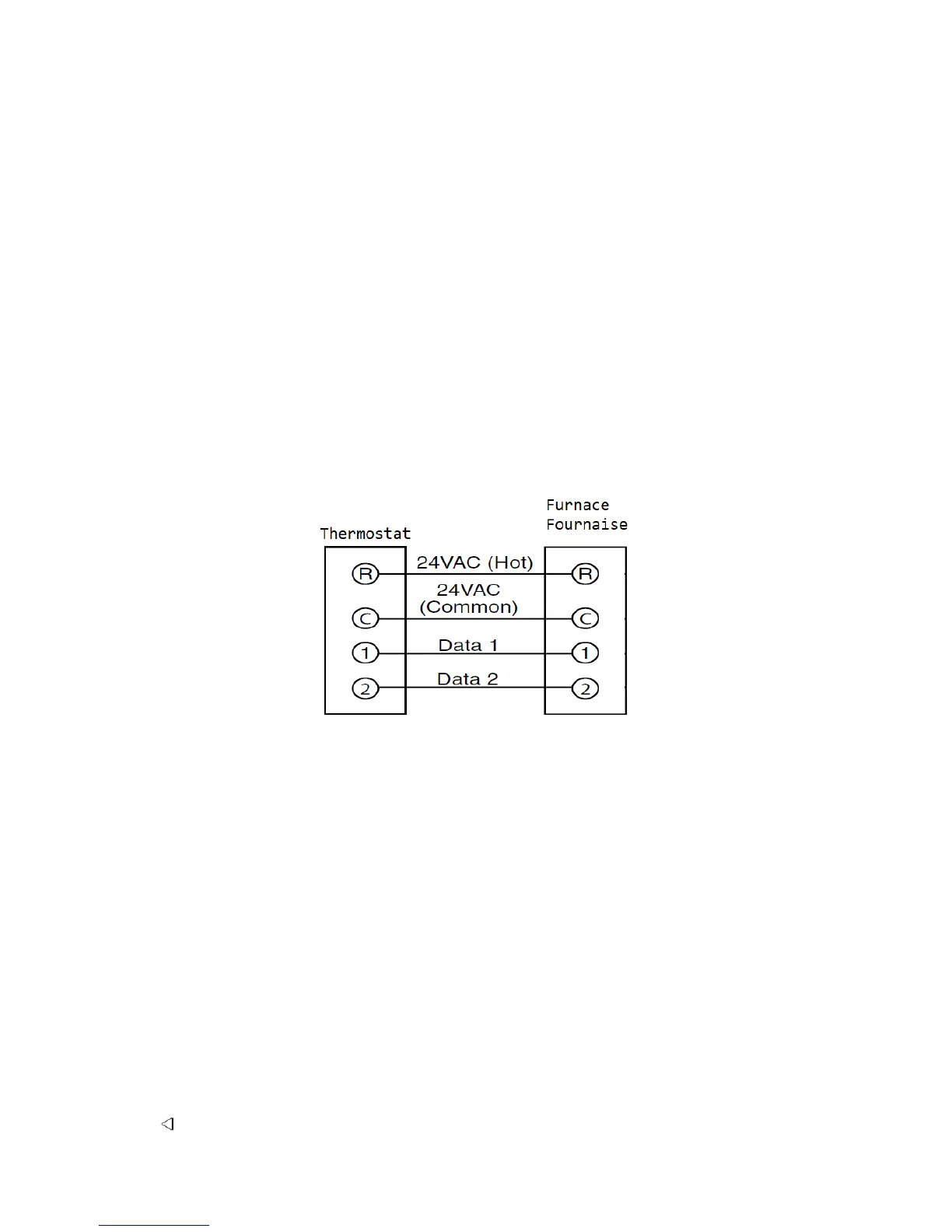

Each communicating device in the system has a four wire connection labelled (R, C, 1, 2). Each R,
C, 1, and 2 terminals must be wired consistently. Maximum length from the thermostat to the indoor
unit is 100 feet.
2.2 Quick Installation Steps
• Determine location of thermostat installation.
• Mount thermostat base to wall.
• Connect wires to thermostat base.
• Attach thermostat to base.
• Turn on power to system. Allow approximately 2 minutes for the system to configure.
• Set the time
• Select advanced installer menu settings or use USB upload feature to install Thermostat
Configuration information
• Perform thermostat/system operation checkout.
• Program thermostat or accept factory programming.
• Touch to run schedule.
