LT-2023
24
FIGURES, DIAGRAMS, AND VIEWS

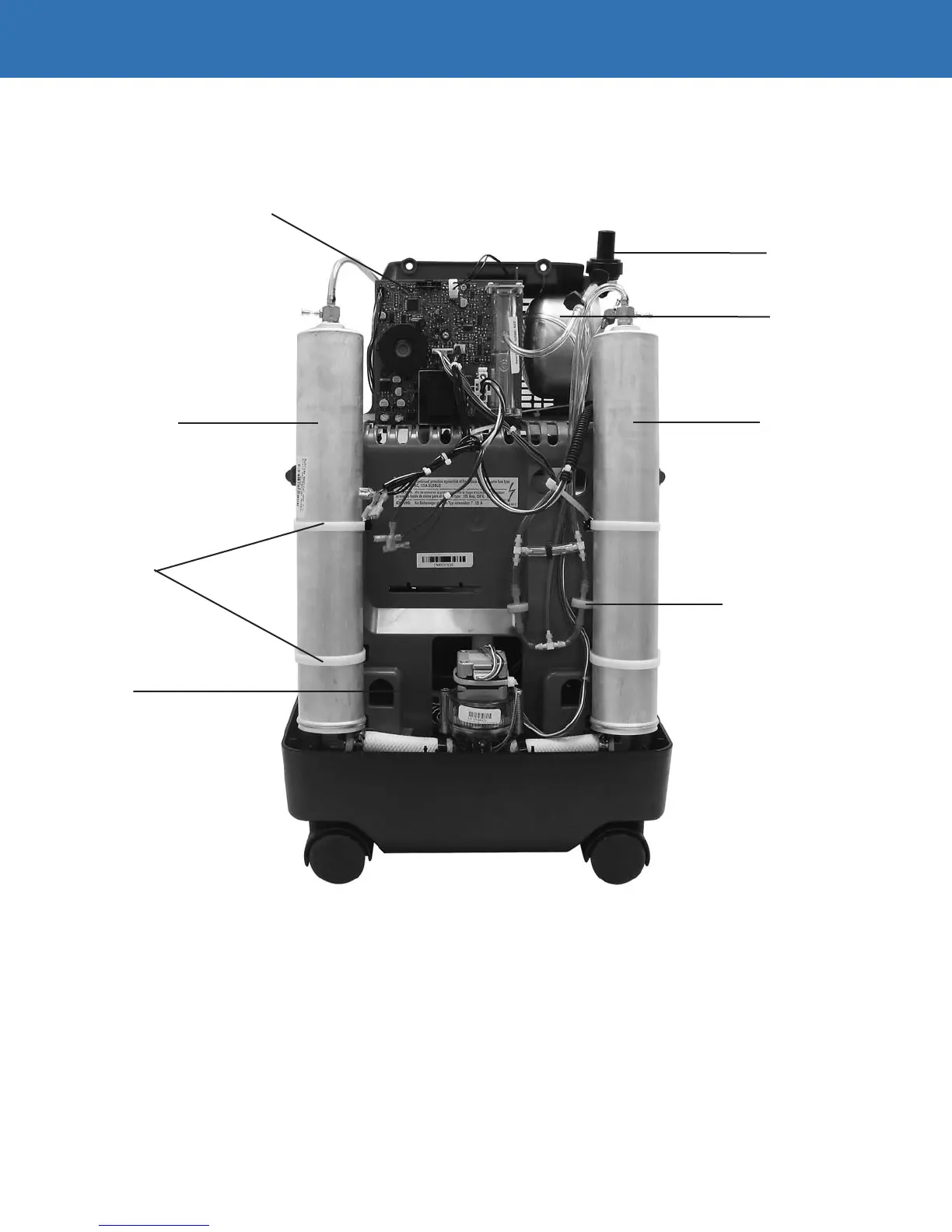

Figure 5 - Interior, Front View
Left Sieve Bed
PC Board
Rotary
Valve
Sieve Bed
Cable Ties
Pressure
Regulator
Right Sieve Bed
Accumulator
Tank
Check Valve
