FIGURES, DIAGRAMS, AND VIEWS

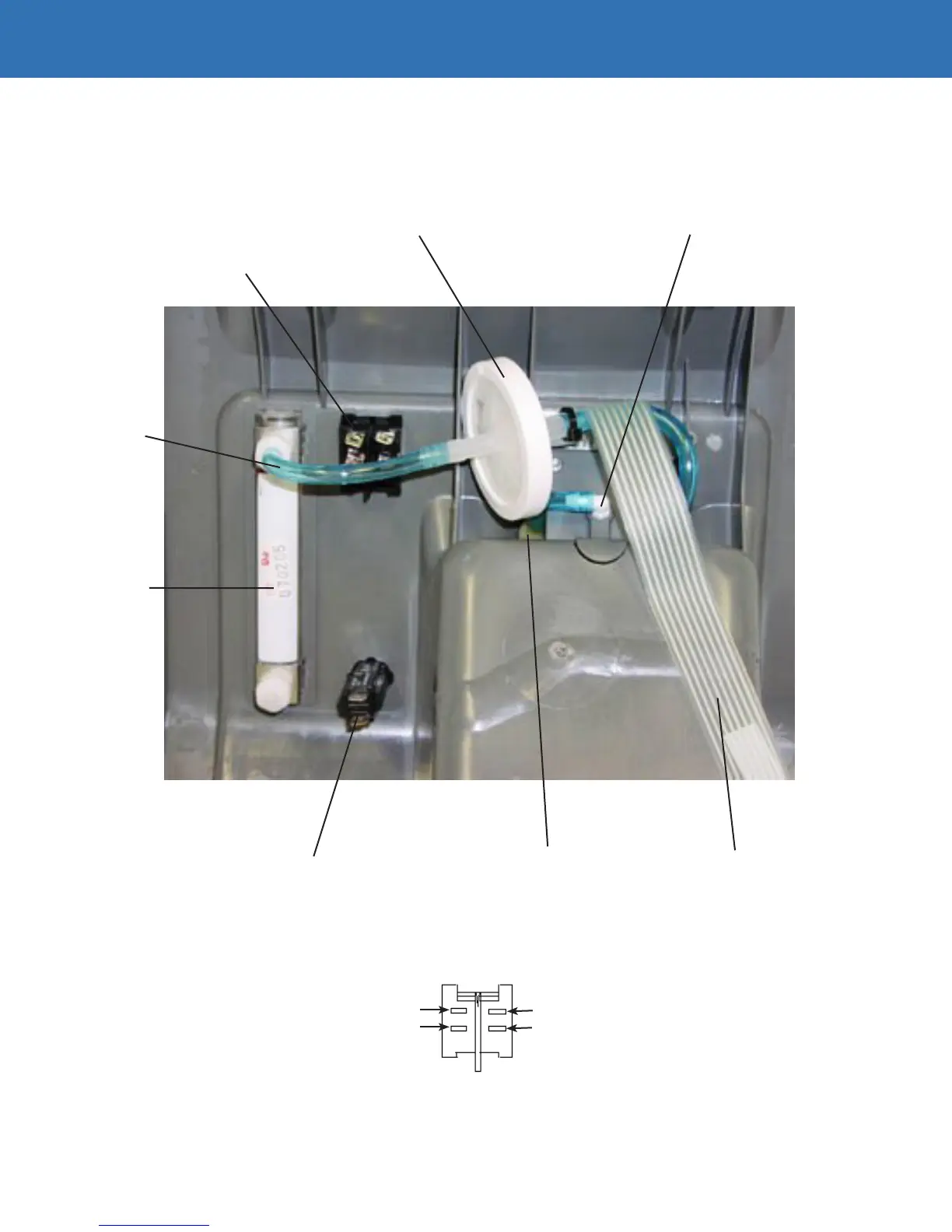

Figure 10 - Interior, Behind Bib
Final Bacteria
Filter
1/8” ID
Hose
Flow
Meter
Power Switch
Final Check
Valve
Light Panel
Ribbon Connector
Plastic
Elbow
Circuit
Breaker
Brown Wire (or 2 Black Wires)
2 Black Wires (or 1 Brown Wire)
*Red Wire
*Red Wire
* Either red wire can be connected to
either left hand terminal of the switch
Switch Detail
To Next Page
