Network configuration 30
devolo Magic 1 WiFi mini

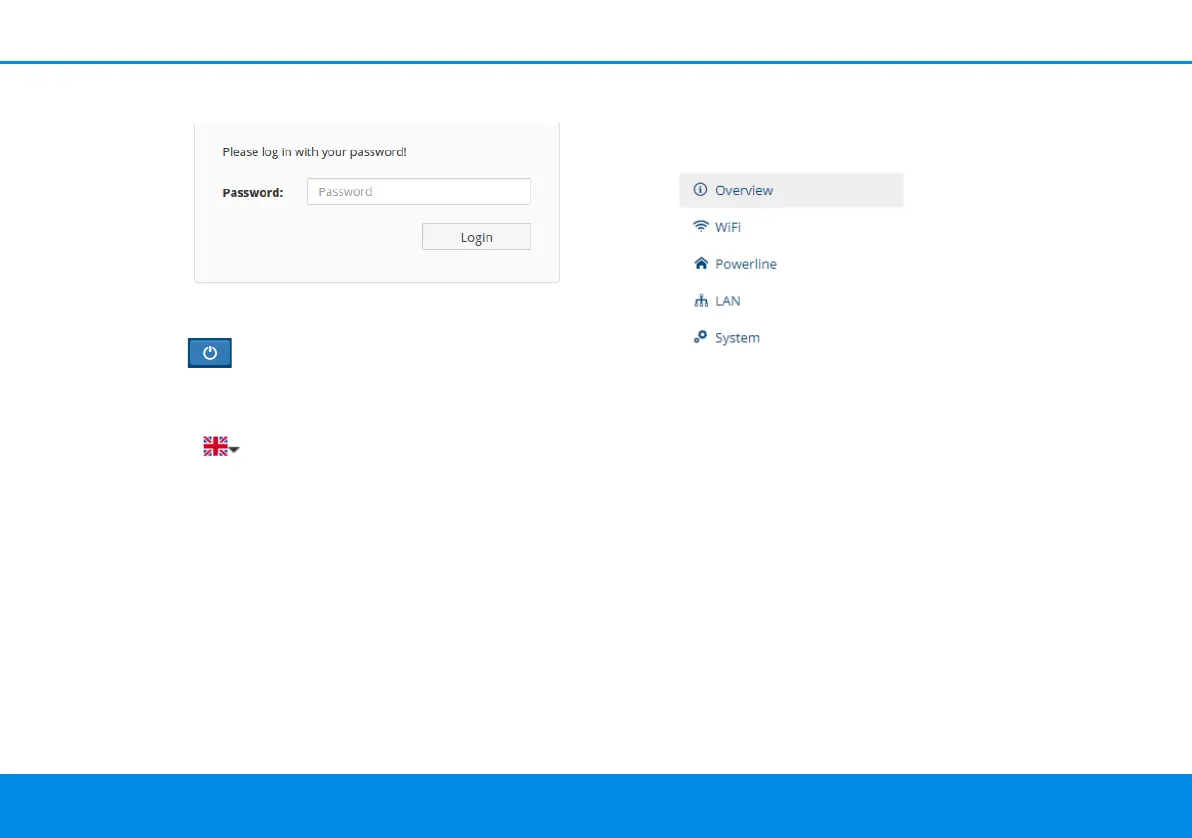

Enter your existing password each time you login
again and confirm by pressing Log in.
Logging out
Log out of the web interface by clicking Log
out.
Language selection
Select the desired language in the
language selection list.
The central areas of the web interface and their
sub-categories are listed on the left edge. Click the
entry for an area to move directly into it.
Making changes
Once you make a change, two icons are shown on
the corresponding menu page:
b Disk icon: Your settings are being saved.
b X icon: The operation is being cancelled. Your
settings are not being saved.
Required fields
Fields with a red border are required fields. This
means entries must be made in these fields to con-
tinue with the configuration.
Fig. 5: Overview
Magic_1_WiFi_mini.book Seite 30 Mittwoch, 16. Oktober 2019 11:27 11

Devolo Magic 1 WiFi mini Specifications

General

Modulation	64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, DSSS, OFDM, QPSK
Power plug	Type C
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit AES, WPA, WPA2, WPS, WPS-PBC, WPS-PIN
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	1200 Mbit/s
Maximum operating distance	400 m
Ethernet LAN interface type	Fast Ethernet
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
WLAN data transfer rates supported	300 Mbit/s
Certification	CE
Product color	White
LED indicators	PLC, WLAN
Cables included	LAN (RJ-45)
Quantity per pack	- pc(s)
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power consumption (standby)	1 W
Power consumption (typical)	4.4 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks
Linux operating systems supported	Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10
Mobile operating systems supported	Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13
Windows operating systems supported	Windows 10, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	41 mm
Width	68 mm
Package depth	231 mm
Package width	190 mm
Package height	92 mm
Package weight	670 g
