DeWalt D25900K Service Manual

Page 30 of 63

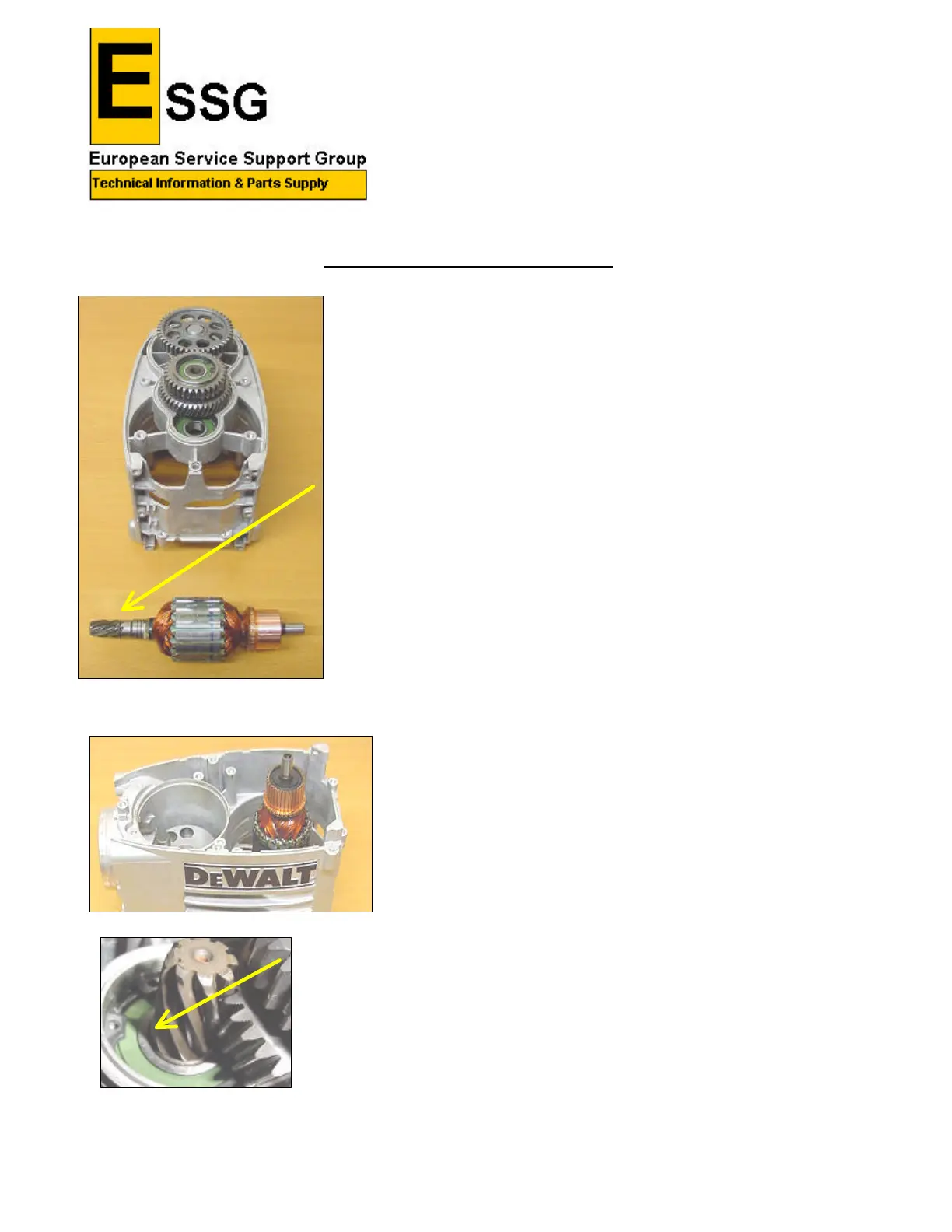

Service Tooling 559618-99.
Make sure the Snap Ring is in place on the Armature. If the
Armature has been replaced it will be supplied with the Ring
fitted.
q Place main Housing onto Service Jig 55918-99.
q Place Armature into Main Housing through the Bearing
making sure the splines mesh with the Double Gear.
q Press Armature into Bearing until the Snap Ring has passed through
the Bearing and located correctly into the groove,

DeWalt D25900K Specifications

General

Input power	1500 W
Power source	AC
AC input voltage	230 V
AC input frequency	50 Hz
Impact rate	2040 bpm
Impact energy (max)	25 J
Chuck type	SDS Max

Weight and Dimensions

Weight	9800 g
