DeWalt D25900K Service Manual

Page 31 of 63

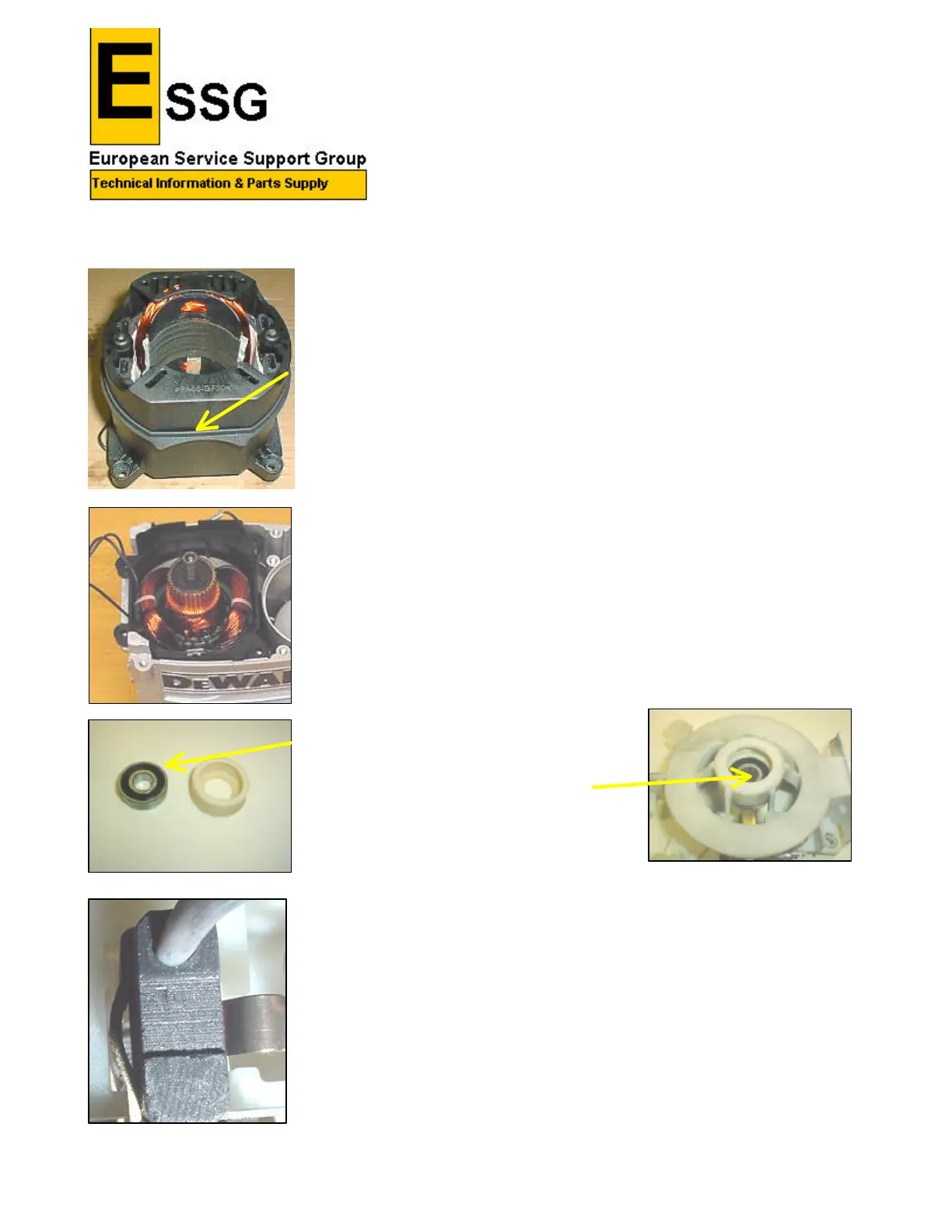

q Fit the Seal (33) to the Field Housing (2).
q Fit the Motor pot over the Armature and into the Main Housing
making sure the Seal (33) remains in place
q Push down until seated correctly.
q Fit the Bearing (5) into the Insulator (4)
q Then Fit to the Brush Assembly
q If not already done fit new Brushes to the Brush Assembly and leave
in this position.
q Connect the Lead to the tag on the Brush Holder.

DeWalt D25900K Specifications

General

Input power	1500 W
Power source	AC
AC input voltage	230 V
AC input frequency	50 Hz
Impact rate	2040 bpm
Impact energy (max)	25 J
Chuck type	SDS Max

Weight and Dimensions

Weight	9800 g
