DeWalt D25900K Service Manual

Page 33 of 63

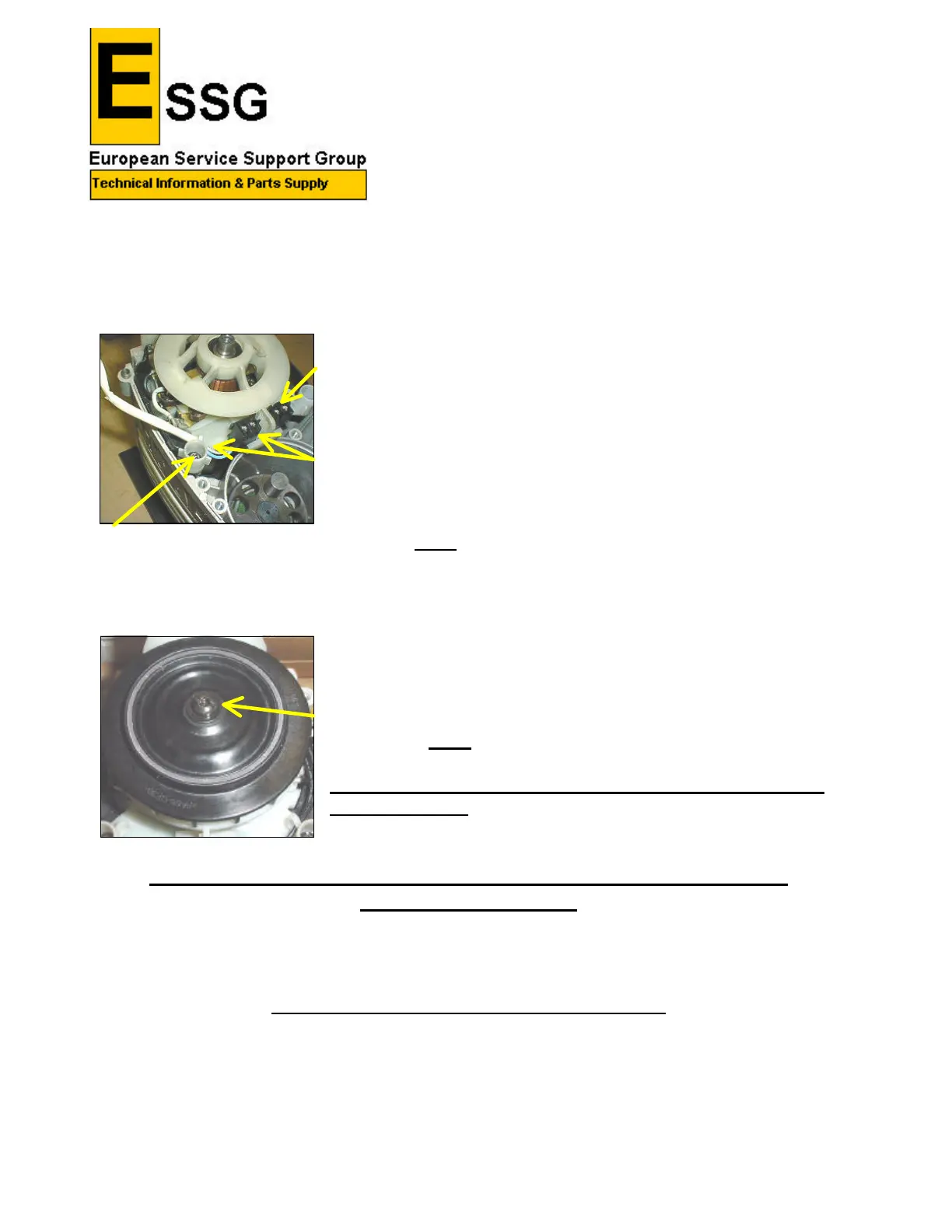

q Reconnect the Terminal from the Field to the Brush Assembly
q Reconnect the Switch Lead (18) to the brush assembly and pass
the wire under the wire trap.
q Fit four new Screws (58) and tighten to 3 Nm
q Fit the fan (10) to the Armature shaft and tighten the
Screw to 5 Nm.
Grip outside edge of Fan; Use protective gloves the edge of the
Fan is very sharp
IMPORTANT NOTE, MAKE SURE THE FAN IS TIGHT ON THE
ARMATURE SHAFT .
This compleates the Motor unit assembly.

DeWalt D25900K Specifications

General

Input power	1500 W
Power source	AC
AC input voltage	230 V
AC input frequency	50 Hz
Impact rate	2040 bpm
Impact energy (max)	25 J
Chuck type	SDS Max

Weight and Dimensions

Weight	9800 g
