Single port KVM over IP switch
6.
Menu Options
6.1 Remote Control
6.1.1 KVM Console

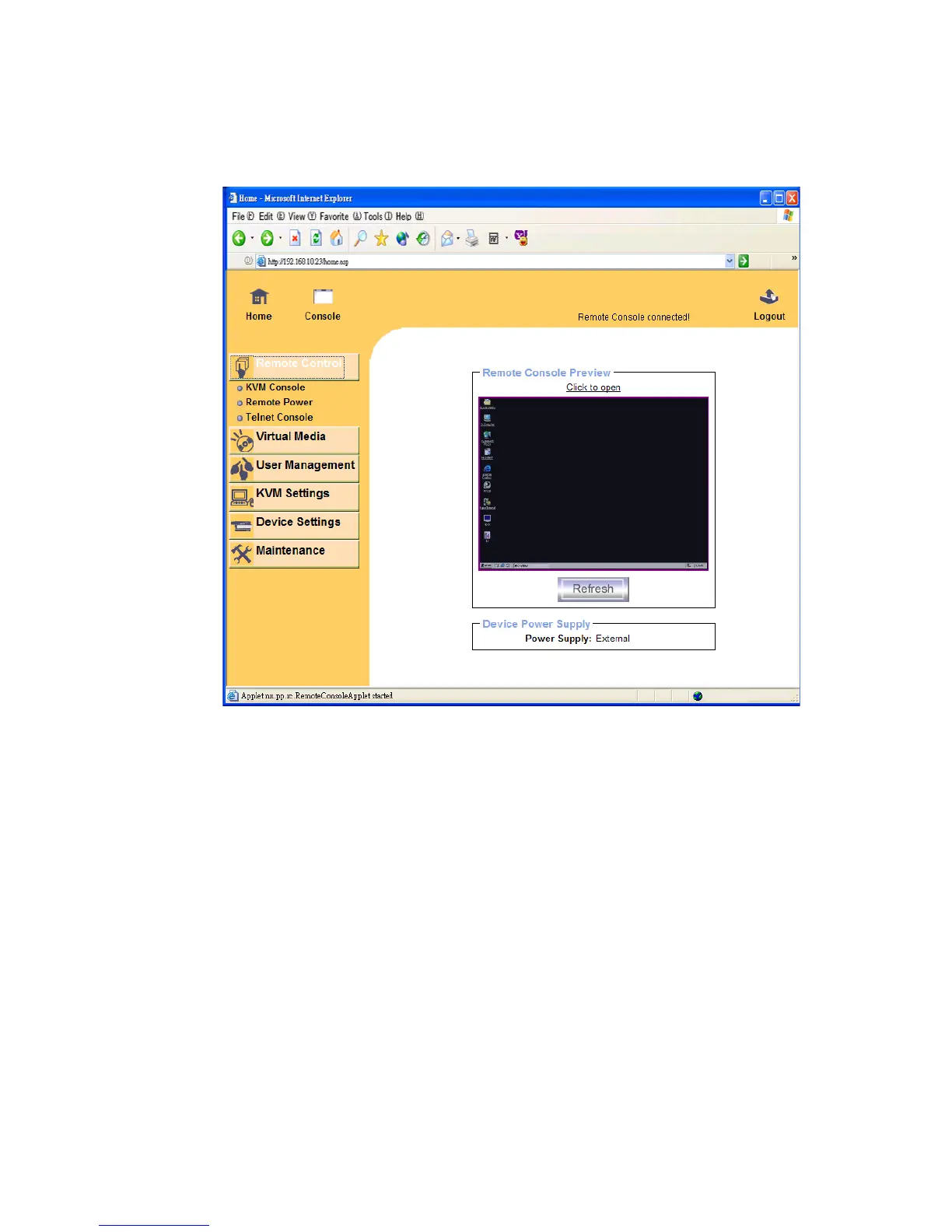

Figure 6-1. KVM Console
To open the KVM console, either clicks on the menu entry on the left, or on the console
picture on the right. To refresh the picture, click on the button “ Refresh ” .
For the power settings see the Section called Remote Power .
6.1.2 Remote Power
The power button is the representation of the ATX power button on your host system. It is
used to switch on and off the power supply. The ATX power button knows two operation
modes: pressing it shortly and pressing it for about 4 seconds.
As shown in Figure 6-1 these two modes are supported separately.
Short Press
A short press on the ATX button is normally caught by the running operating system that
tries to initiate a controlled shutdown.
Usually this should always be the first action you try in case you would like to power off
your system. Only in case this is not working you should try the long press button.
