Dexter Laundry T-650 - Machine Anchoring

23
8514-300-001 REV PR

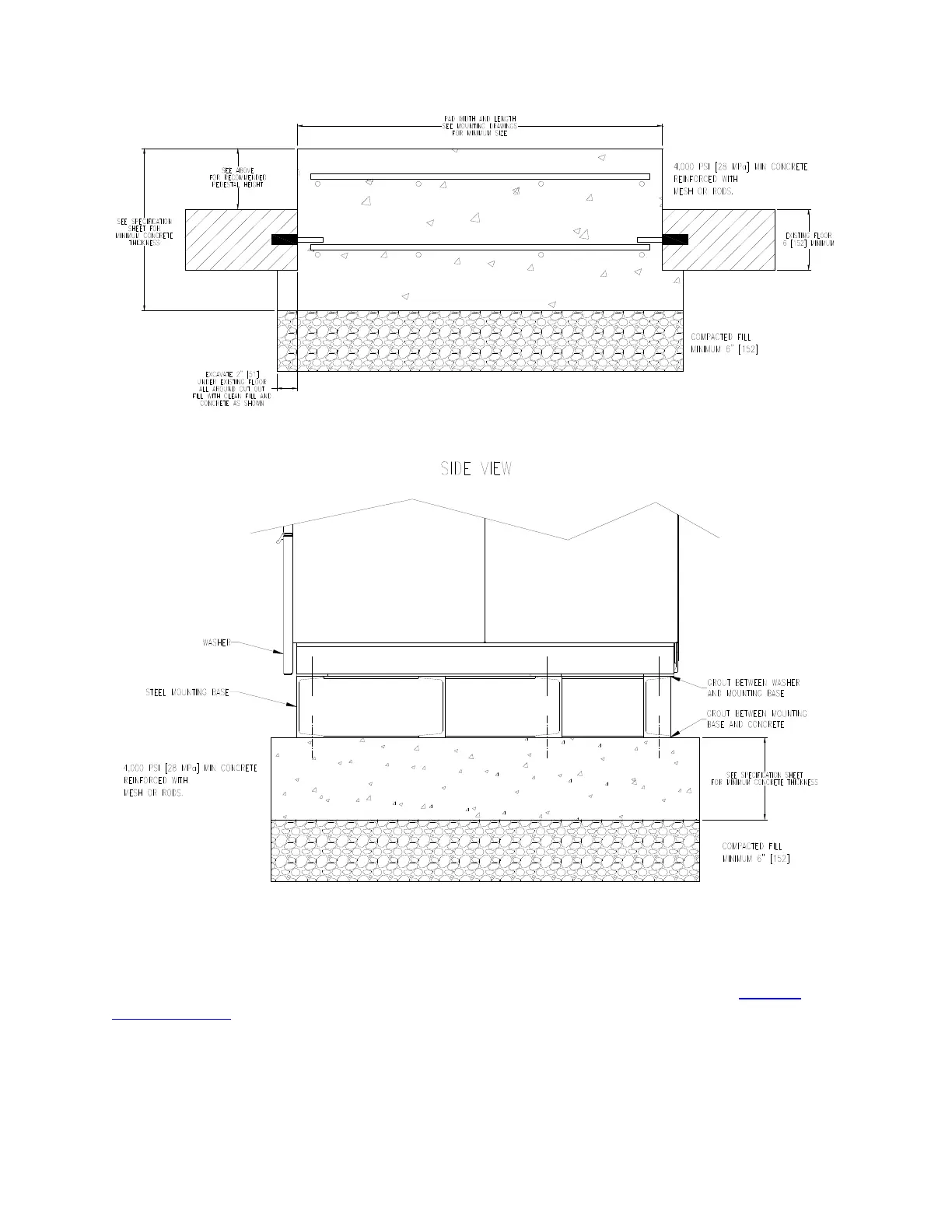

Figure 7-4 New Raised Concrete Pedestal Tied to Exisng Floor
Figure 7-5 Steel Mounng Base on Concrete Floors
7.1.4 Machine Anchoring
All installations require concrete floors and quality grade anchor bolts or expansion anchors.
Mounting hardware is not provided with the machines. Refer to appropriate model Machine
Mounting Detail Figures 1-1, 1-2 and 1-3 for floor thickness and bolt sizes. See mounting
diagram for overall washer dimensions.
