Dexter Laundry T-650 - Machine Moun Ng Details

27
8514-300-001 REV PR
7.1.7 Machine Mounng Details

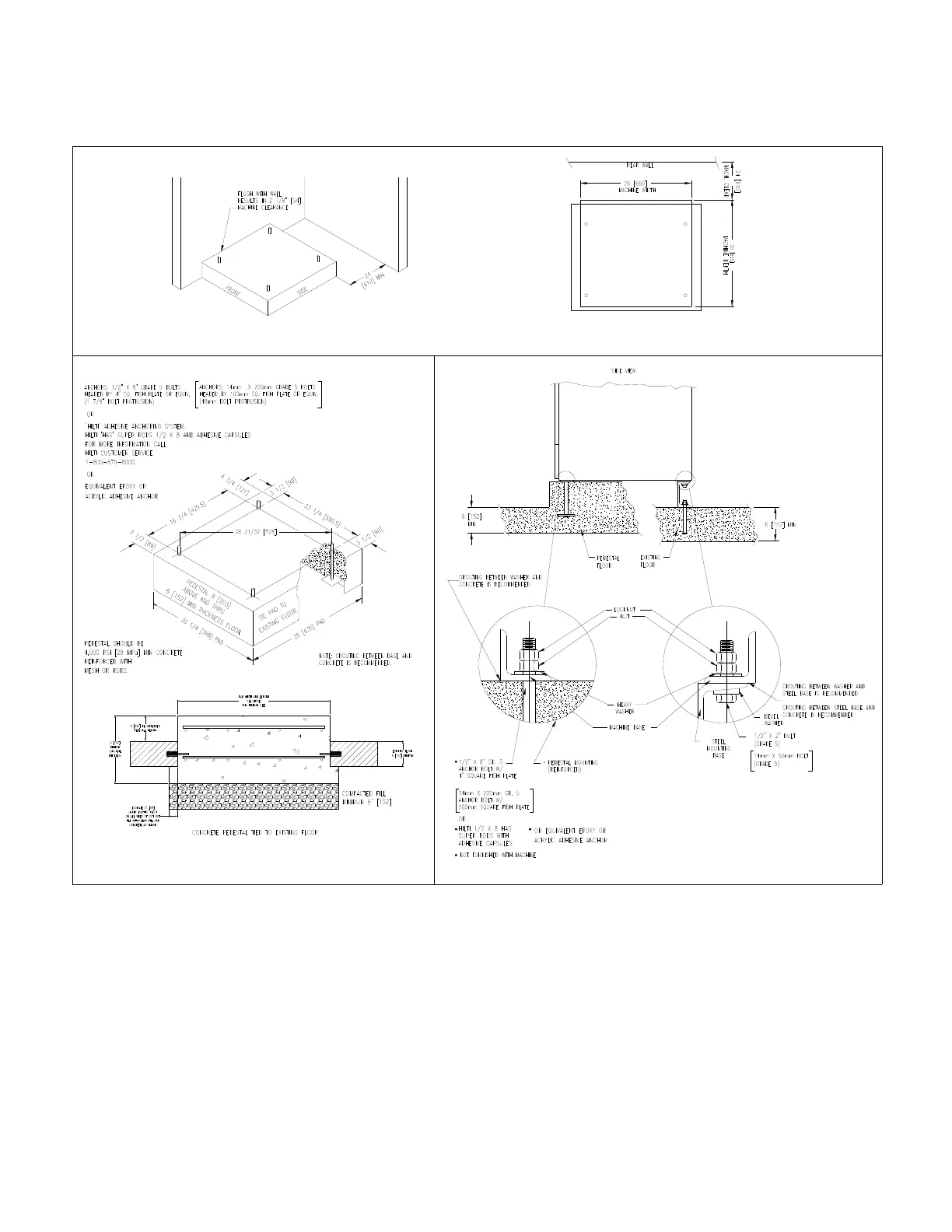

Figure 7-7 T-300 Machine Mounng Details
RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1
Figure 1-3
MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
