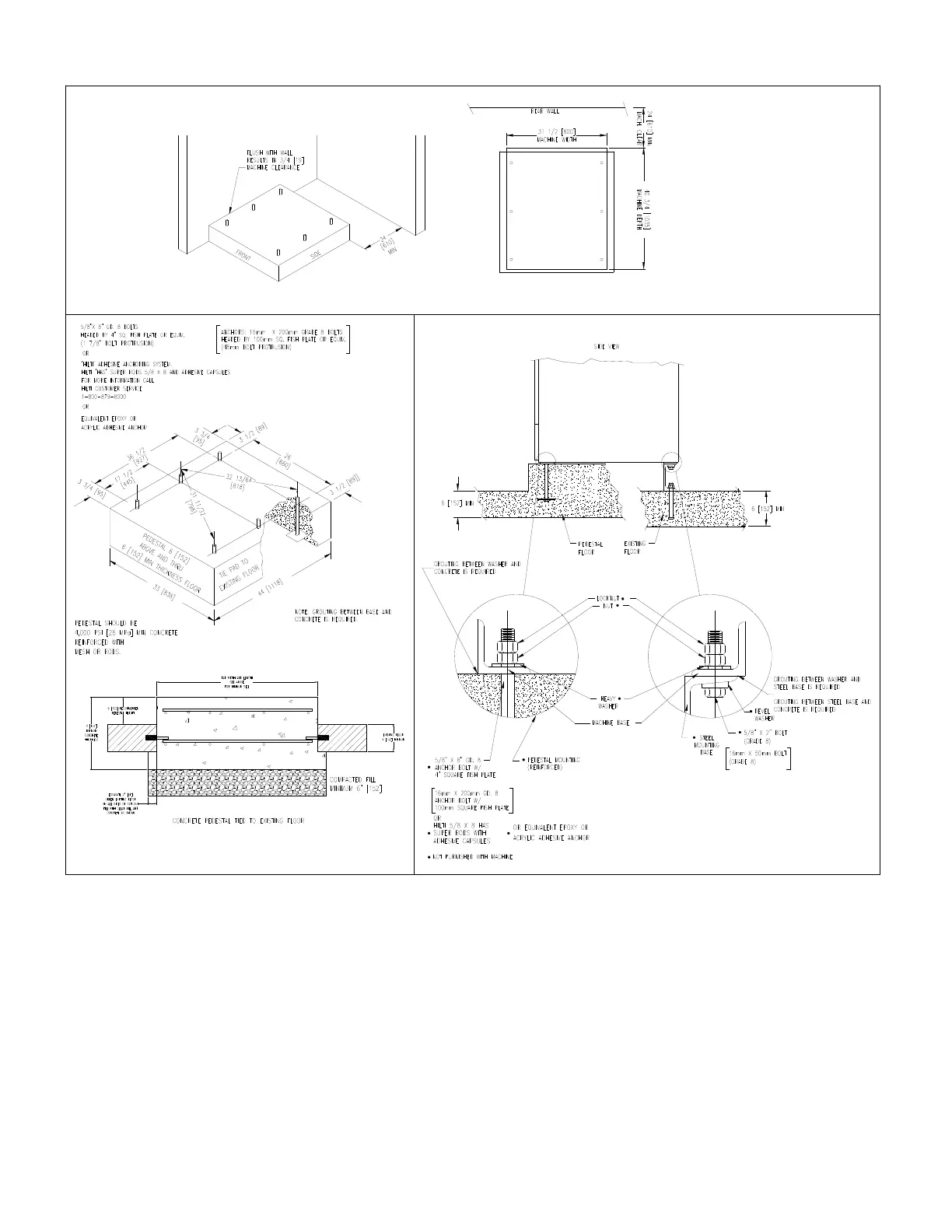

Figure 7-34 T-450 SWD Machine Mounng Detail
RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1
Figure 1-3
MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
