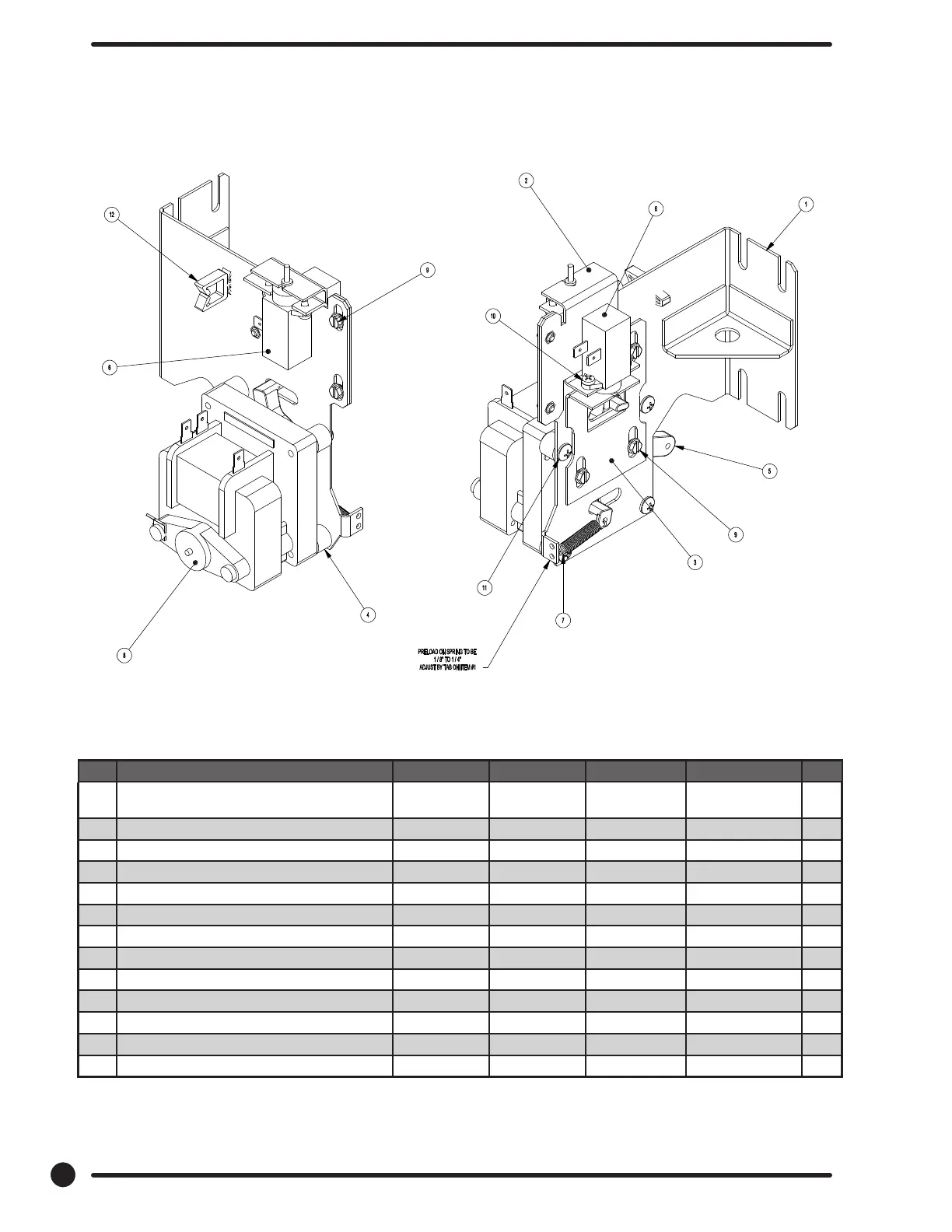

Gear Motor Door Lock Assembly

Key Description T-650 T-750 T-950 T-1450 QTY

* Actuator Assembly (Includes 1-10, Rod NOT

included)

9892-015-003 9892-015-003 9892-015-003 9892-015-003 1

11 Screw Pnhdcr, 10-32 UNFx0 .75 9545-012-029 9545-012-029 9545-012-029 9545-012-029 4

10 Cross Recessed Pan Hd Tapping screw 9545-031-011 9545-031-011 9545-031-011 9545-031-011 4

9 Screw -Hxwshrhdslsems, 6-32 x 3/16 9545-044-003 9545-044-003 9545-044-003 9545-044-003 6

8 Motor & Gear Assembly 120v 9914-137- 015 9914-137-015 9914-137-015 9914-137-015 1

7 Spring - Extension 9534-350-001 9534-350-001 9534-350-001 9534-350-001 1

6 Thermoactuator - Door Lock Relay 24v 9586-001-003 9586-001-003 9586-001-003 9586-001-003 2

5 Arm - Door Lock 9001-063-001 9001-063-001 9001-063-001 9001-063-001 1

4 Spacer, Plastic 9538-157-021 9538-157- 021 9538-157-021 9538-157-021 4

3 Bracket Slide Lock 9029-204-001 9029-204-001 9029-204-001 9029-204-001 1

2 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 9985-189-001 9985-189-001 1

1 Bracket Assy, Slide - Unlock 9985-190-001 9985-190-001 9985 -190-001 9985-190-001 1

* Rod, Door Lock 9497-225- 017 9497-225-013 9497-225-015 9497-225-016 1







108

Part # 8533-110-001 11/20

Dexter Laundry T-950 Parts & Service Manual
