Dexter Laundry T-950 - Page 107

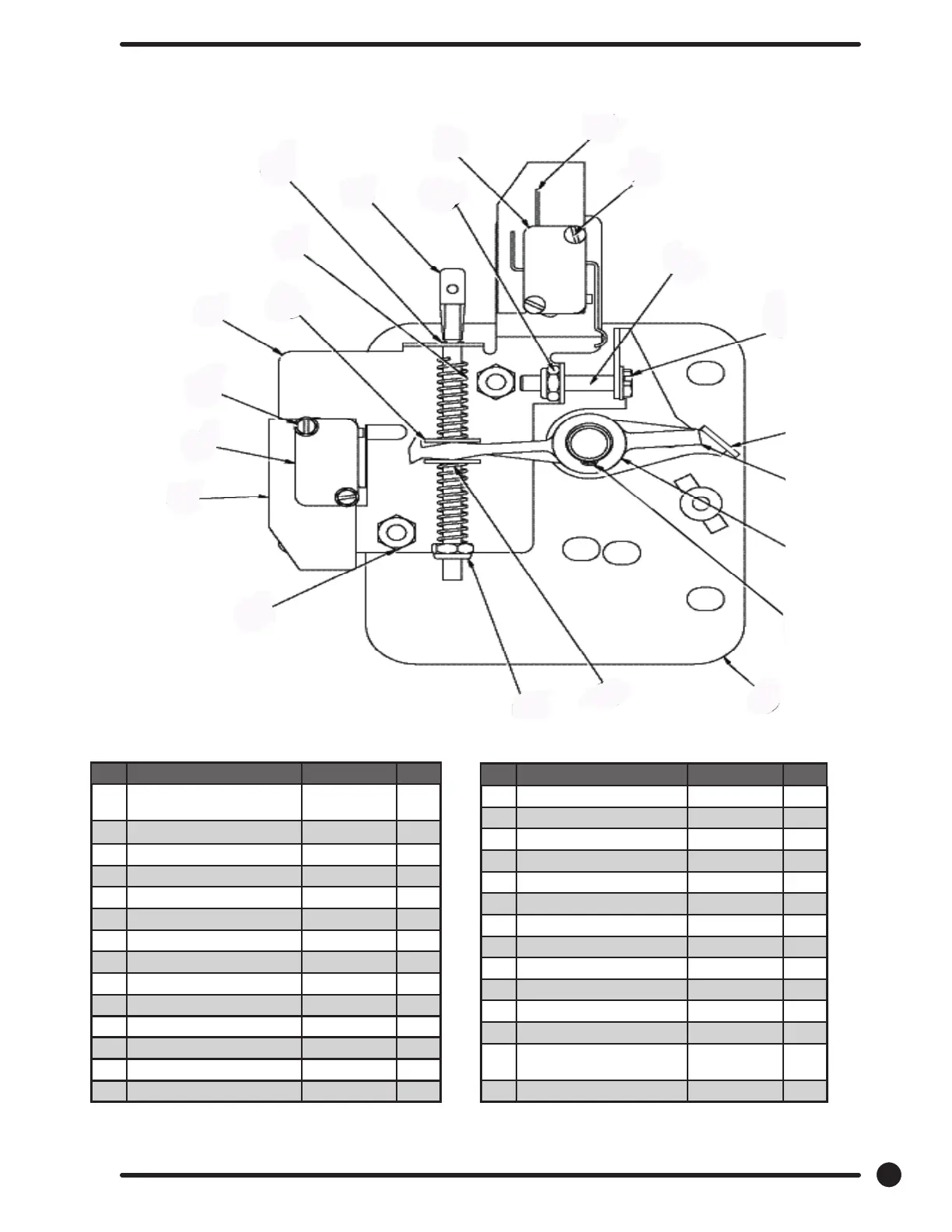

Door Lock Assembly (All Models)
Key Description All Models QTY
33 Lock Assy, Complete (#1-22)
(includes #1 thru #22)
9885-031-001 1
1 Plate Assy, Door Lock 9982-346-001 1
2 Washer, Flat (SS or Brass) 8641-581-030 1
3 Actuator, Latching Switch 9008-005-001 1
4 Pawl, Locking 9732-346-002 1
5 Washer, Spring 8641-569 - 003 1
6 Ring, Retaining 9487-200-004 1
7 Bracket Switch 9029-163-001 1
8 Nut, Hex 10-32 UNF 8640 - 413 -002 2
9 Spring, Actuating 9534-364-002 1
10 Screw, Hx. 10-32 x 1” 9545-012-020 1
11 Nut, Elastic Stop 10-32 8640 - 413 -004 2
12 Spring, Return 9534-364-001 2
13 Pin, Guide 9451-193-001 1
3
4
5
6
1
12
11
8
17
19
21
7
12
9
14
13 11
16
17
18
12
10
Key Description All Models QTY
14 Ring, Retaining 9487-200-005 1
15 Washer 8641-581-031 1
16 Switch, Latching Sensing 9539-461-008 1
17 Shield, Switch 9550-169-003 3
18 Screw 4-40 x 5/8” 9545-020-001 2
18 Nut, Twin 8640-401-001 2
19 Switch, Locking Sensing 9539-461-007 2
20 Actuator, Switch Locking 9008-006-003 1
21 Screw 4-40 x 1 1/8” 9545-020-003 2
21 Spacer Sensor 9538-182-001 1
22 Pin, Dowel (for door cam) 9451-181-004 1
* Shim, Door Lock, Thin 9552-037-001 AR
* Screw, Lock mtg 1/4”-20 x
3/4”
9545-018-014 3
* Lockwasher 1/4” Ext tooth 8641-582- 007 3
107
Part # 8533-110-001 11/20
