EMERGENCY STOP / SAFETY DOOR LOCK
This machine is equipped with a safety door lock that locks the door when the cycle is started until the cycle
is complete. The door lock prevents opening the door for up to 3 minutes if the power is interrupted during
the cycle. The Emergency Stop button ends the cycle and allows the door to be opened after the Safety
Door Lock releases. When the Emergency Stop button is pressed an alarm will sound (if programmed), an
“Emergency Stop” message will be displayed, tumbler movement will begin to slow and water will begin
draining from inside the washer. Though the machine may end movement quickly, it may take up to 3
minutes for the door to unlock. During that time the alarm will continue to sound. When the alarm stops,
the door may be opened. Inspect the washer as needed and reset the emergency stop button by turning it
clockwise. Reset the washer by selecting Cancel. The washer may be restarted by closing and latching the
door, and starting a new cycle.

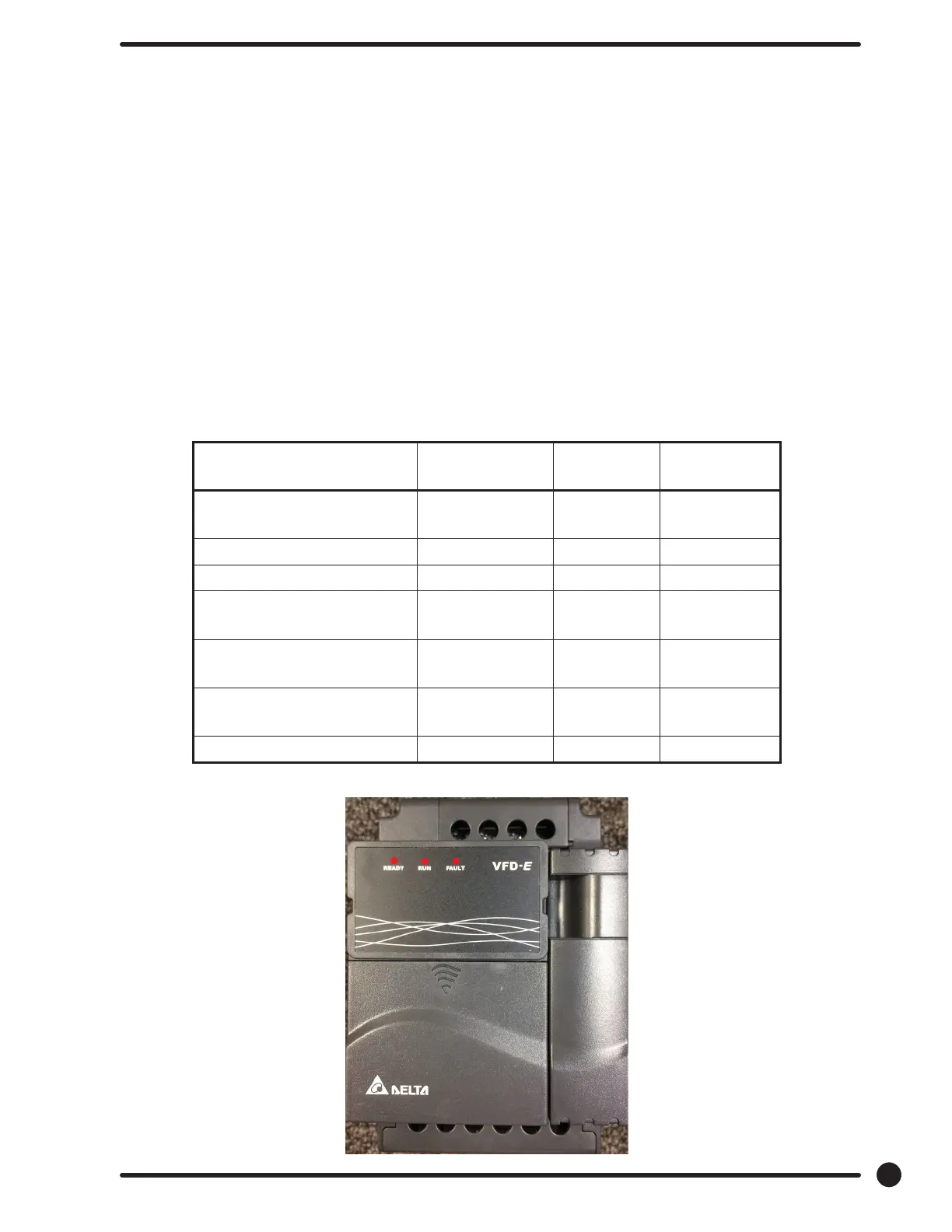

VARIABLE FREQUENCY DRIVE INDICATORS
There are three small red LEDs located on the upper Variable Frequency Drive (VFD) cover. They are
labeled as “READY”, “RUN”, and “FAULT” and can be used for troubleshooting. The denitions of the LEDs
are listed in Table 2 below.
Washer Condition
“READY”
LED Status
“RUN”
LED Status
“FAULT”
LED Status
Idle Mode
(No Cylinder Movement)
ON OFF OFF
Tumbling ON ON OFF
Stop from Tumble ON FLASHING OFF
Ramp to Intermediate or
Final Extract Spin
ON ON OFF
Spinning
(Intermediate or Final)
ON ON OFF
Stop from Spin
(Intermediate or Final)
ON FLASHING OFF
Faulted ON OFF ON
29
Part # 8533-110-001 11/20
