Injection Source Details
The washer control may be programmed to send output
signals for a chemical injection system. There is a separate
terminal block for connection of the external injection sig-
nals. For the injection sources, program codes 0 through 6
are as shown in the table below. Injection signal will trigger
a 120 volt reading at rear terminal block for approximately
5-10 seconds and will start to trigger at about 10-15 seconds
after start of ll bath. (Chemical Injection Signals are shown
in the programming section.)

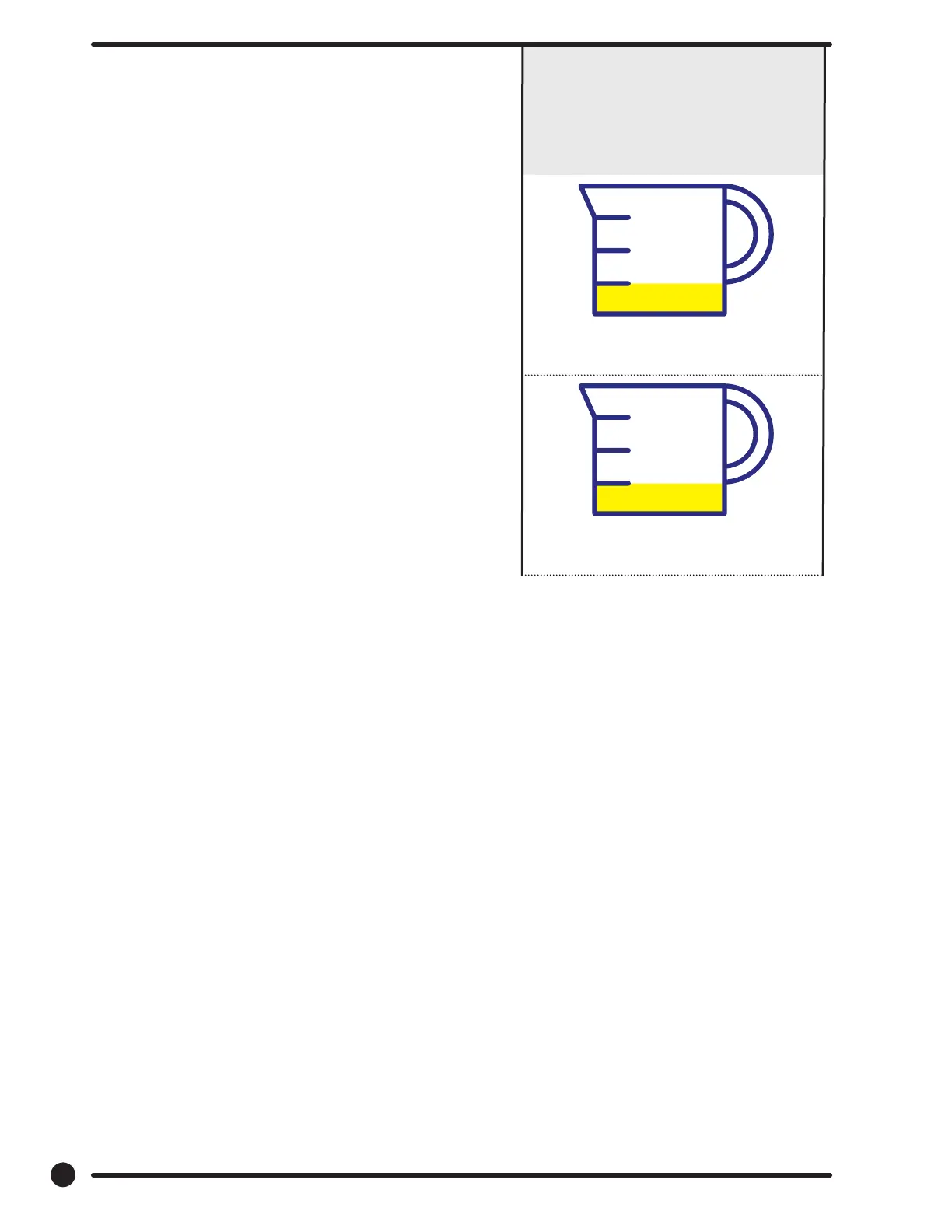

Detergent Measurements
By Washer Model
Use 1/4
Cup
Triple Load T-350 Washer
Use 1/4
Cup
Mega Load T-450 Washer
30
Part # 8533-110-001 11/20
